General Specification
| Color |
16.7M |
| LCD Type |
IPS-TFT-LCD |
| Viewing Angle |
Wide viewing angle, 85/85/85/85(L/R/U/D) |
| Display Area(A.A) |
56.16(W)*93.6(H) |
| Driver IC |
ST7701S |
| Luminance |
250cd/m² |
| LED Numbers |
10 LEDS |
| Interface |
RGB_24bit 40PIN_0.5mm |
Electrical Characteristics
| Analog Voltage |
3V(Typ.) |
| Forward Voltage |
15V(Typ.) |
| Forward Current |
40mA |
| Power Consumption |
600mW |
| Uniformity(with L/G) |
80% |
| LED Life-Time |
30000Hr |
Optical Characteristics
| Contrast Ratio |
1000:1 |
| Response Time |
25ms |
| Color Gamut |
70% |
| Color Temperature |
5870K |
Touch Parameters
| Feature |
Description |
| Type |
CTP (Capacitive touch panel) |
| Structure |
G+G |
| Outline Size (mm) |
62.96(L)*103.67(W)*1.78(T) |
| Active Area (mm) |
56.16(L)*93.60(W) |
| Control Type |
GT911 |
| Surface Hardness |
6H |
| Light Transmittance |
≥85% |
| Operating Temperature |
-20~70°C |
| Storage Temperature |
-20~70°C |

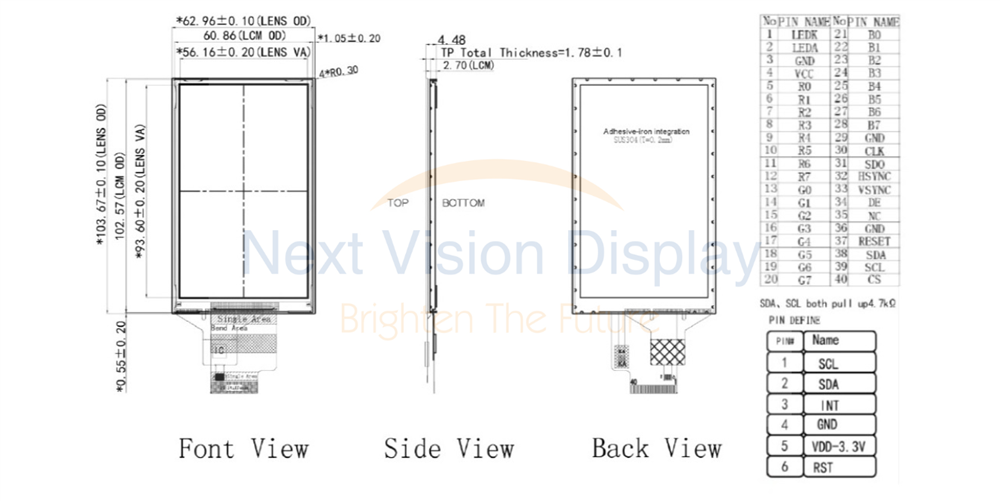

DRAWING

Specifiche di prodotto
|
Size
|
4.3" |
|
Resolution
|
480x800 |
|
Active Area (mm)
|
56.16x93.60 |
|
Color
|
Full Color |
|
Display Interface
|
RGB |
|
Display IC
|
No |
|
View Angle
|
IPS |
|
Frame
|
No |
|
Touch Panel
|
Capacitive |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
40 |
|
Pin Pitch
|
0.5mm |
|
Touch Panel IC Controller
|
GT911 |
|
Preferred - Not Preferred
|
Preferred |
