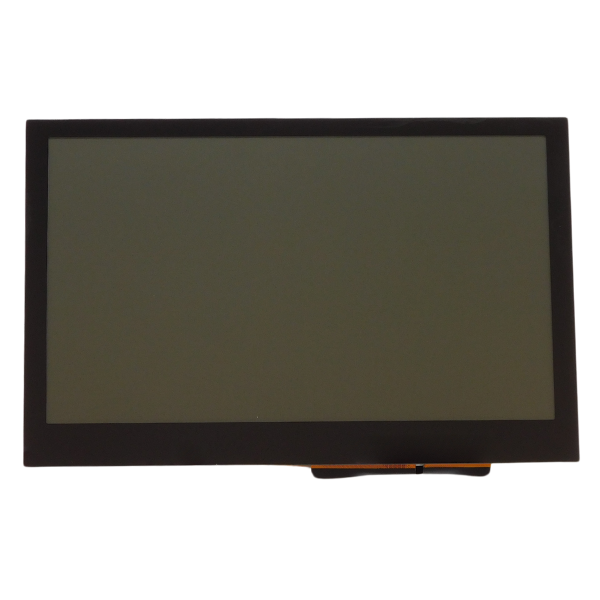

    TFT 4.3" 480x272 LCD Panel, Interface RGB, 250cd/m², Capacitive touch panel I2C interface (GG, GT911 IC)
    Cod.: NT043-C001DW

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €18,20
    €16,40
    €15,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €18,20 IVA esclusa
    i h

    General Specifications

    Color 16.7M
    LCD Type TN-TFT-LCD
    Viewing Angle Normal viewing angle, 70/70/50/70(L/R/U/D)
    Display Area(A.A) 95.040(W)*53.856(H)
    Driver IC NV3047
    Luminance 250cd/m²
    LED Numbers 8 LEDS
    Interface RGB_24bit 40PIN_0.5mm



    Electrical Characteristics

    Analog Voltage 3.3V(Typ.)
    Forward Voltage 12.0V(Typ.)
    Forward Current 40mA
    Uniformity(with L/G) 80%
    LED Life-Time 30000 Hr


    Optical Characteristics

    Contrast Ratio 500:1
    Response Time 25ms
    Transmittance 6.6%



    Touch Parameters

    Feature Description
    Type CTP (Capacitive touch panel)
    Structure G+G
    Outline Size (mm) 105.2(L)*67.0(W)*1.6(T)
    View Area (mm) 96.54(L)*55.36(W)
    Control Type GT911
    Surface Hardness 6H
    Light Transmittance ≥85%
    Operating Temperature -20~70°C
    Storage Temperature -20~70°C





    DRAWING

    Specifiche di prodotto
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller GT911
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
