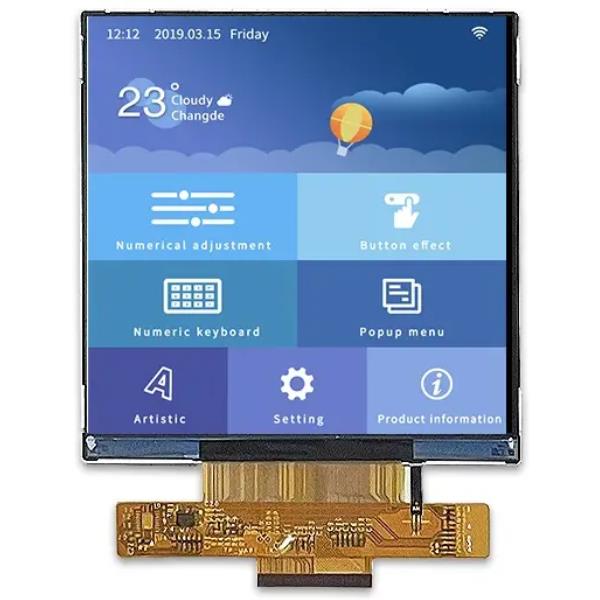

    TFT 4.12" 720x720 LCD Panel, Interface MIPI IC ILI2882N, 350cd/m², Wide View Angle (IPS), Incell Capacitive Touch I2C interface
    Cod.: NT041-C001DW

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €37,20
    €33,50
    €31,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €37,20 IVA esclusa
    i h

    General Specification

    Color 16.7M
    LCD Type IPS-TFT-LCD
    Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
    Display Area(A.A) 73.98(W)*73.98(H)
    Driver IC ILI2882N
    Luminance 350cd/m²
    LED Numbers 12 LEDS
    Interface MIPI
    CTP Interface IIC
    CTP Structure Incell(Without Cover Lens)



    Electrical Characteristics

    Logic Operating Voltage 1.8V(Typ.)
    Forward Voltage 9.8V(Typ.)
    Forward Current 80mA
    Uniformity(with L/G) 80%
    LED Life-Time 30000 Hr


    Optical Characteristics

    Contrast Ratio 1200:1
    Response Time 35ms
    Color Gamut 70%

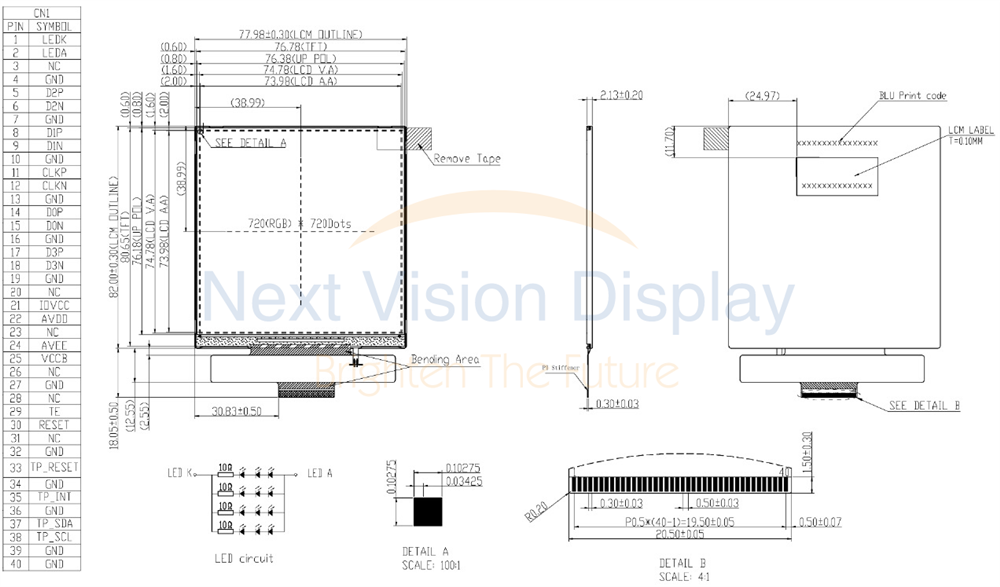

    DRAWING

    Specifiche di prodotto
    Size 4.12"
    Resolution 720x720
    Active Area (mm) 73.98x73.98
    Color Full Color
    Display Interface MIPI
    Display IC ILI2882N
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
