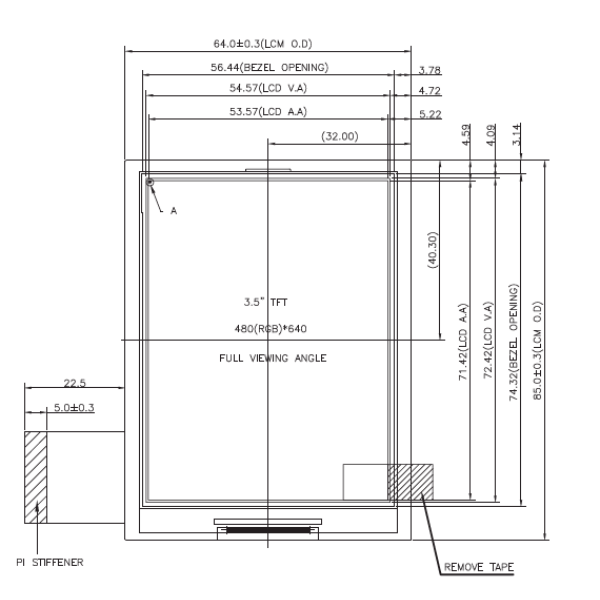

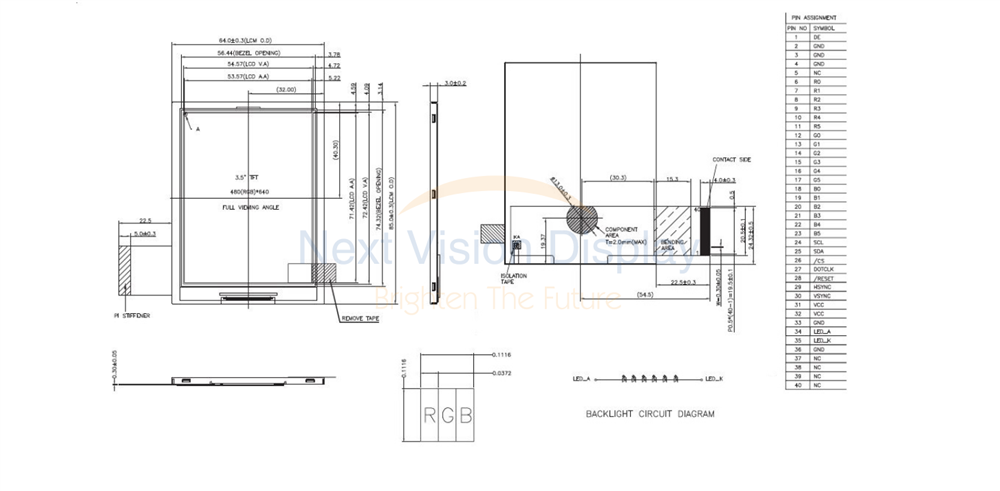

DRAWING
SPECIFICATIONS
General Specifications
| Item | Dimension | Unit |
| Size |
3.5 |
inch |
| Dot Matrix |
480 × RGB × 640 |
dots |
| Module dimension |
64.0 (W) × 85.0 (H) × 3.0 (T) |
mm |
| Active area |
53.57 × 71.42 |
mm |
| Pixel Pitch |
0.1116 x 0.1116 |
| LCD type |
TFT, Normally Black, Transflective |
| Backlight |
6 LEDs |
| Driver IC |
HX8363-A |
| View Angle |
IPS |
| TFT Interface |
18-bit RGB |
| With/Without TP |
Without TP |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
Operating Conditions
| | Symbol | Min. | Typ. | Max. | Unit |
| Supply Voltage |
VCI |
2.5 |
2.8 |
3.3 |
V |
Specifiche di prodotto
|
Size
|
3.5" |
|
Resolution
|
480x640 |
|
Active Area (mm)
|
53.57x71.42 |
|
Color
|
Full Color |
|
Display Interface
|
RGB |
|
Display IC
|
HX8363-A |
|
View Angle
|
IPS |
|
Sunlight Readable
|
Transflective |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
40 |
|
Pin Pitch
|
0..5mm |
|
