General Specifications
| Color |
262K |
| LCD Type |
IPS-TFT-LCD |
| Viewing Angle |
Wide viewing angle, 85/85/85/85(L/R/U/D) |
| Display Area(A.A) |
48.96(W)*73.44(H) |
| Driver IC |
ST7796-G4 |
| Luminance |
300cd/m² |
| LED Numbers |
6 LEDS |
| Interface |
RGB_24bit 40PIN_0.5mm |
Electrical Characteristics
| Analog Voltage |
2.8V(Typ.) |
| Forward Voltage |
9.3V(Typ.) |
| Forward Current |
40mA |
| Power Consumption |
372mW |
| Uniformity(with L/G) |
80% |
| LED Life-Time |
30000 Hr |
Optical Characteristics
| Contrast Ratio |
700:1 |
| Response Time |
30ms |
| Transmittance |
4.3% |

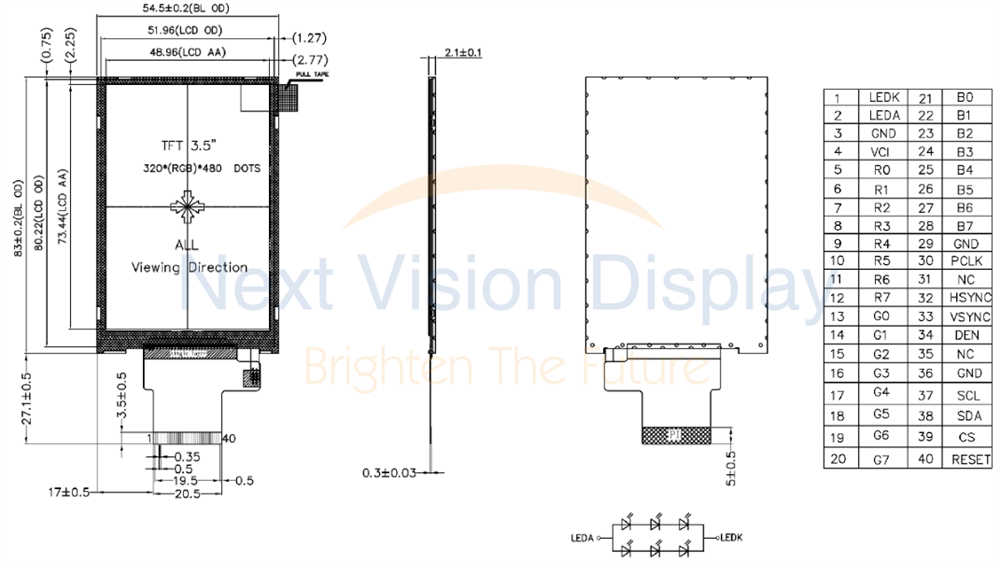

DRAWING

Specifiche di prodotto
|
Size
|
3.5" |
|
Resolution
|
320x480 |
|
Active Area (mm)
|
73.44x48.96 |
|
Color
|
Full Color |
|
Display Interface
|
RGB |
|
Display IC
|
No |
|
View Angle
|
IPS |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
40 |
|
Pin Pitch
|
0.5mm |
|
Preferred - Not Preferred
|
Preferred |
