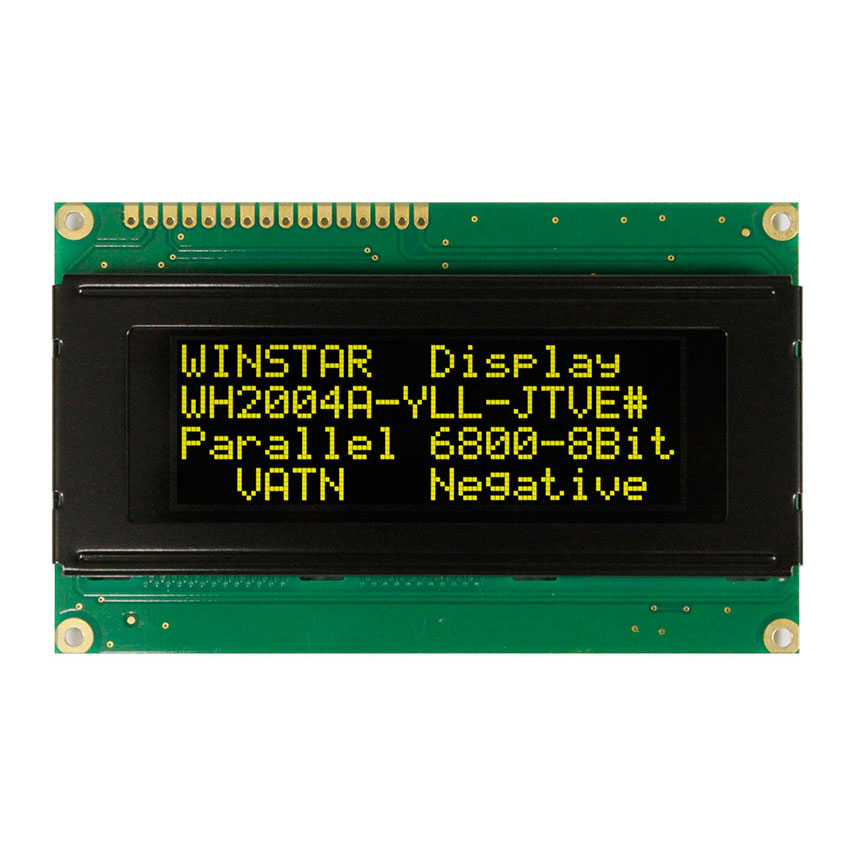

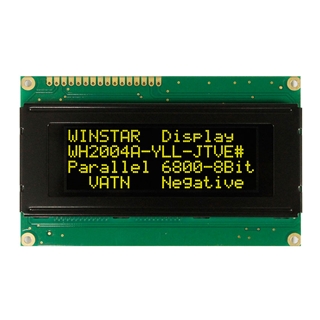

WH2004A-YLL-JTVE#

Character LCD 2.9" 20x4, B/L yellow, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

DESCRIPTION



The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications.  Below are the examples for reference.
  • Industrial: Automotive application, Digital meter, UPS
  • Medical: medical device & medical equipment
  • Home appliance: audio, coffee machine, microwave oven
  • Automobile: dashboard, car audio



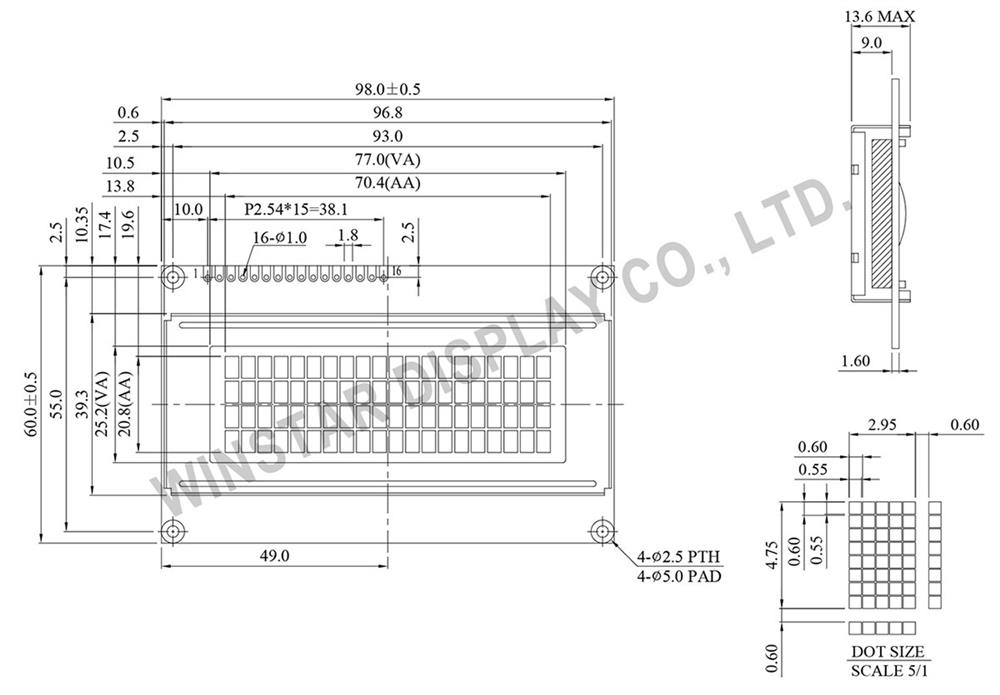

DRAWING

20x4 Yellow Backlight VATN LCD Display - Winstar WH2004A-YLL



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Operating voltage for LCD
4 RS H: DATA, L: Instruction code
5 R/W Read/Write select signal
6 E Chip enable signal
7~14 DB0~DB7 Data bus line
15 Vee Negative Voltage Output
16 K Power supply for B/L -



General Specification

ItemStandard ValueUnit
Module Dimension 98.0 × 60.0 mm
Viewing Area 77.0 × 25.2 mm
Mounting Hole 93.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Absolute Maximum Ratings

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 6.5 V



Display Character Address Code

Display position1234567891011121314151617------20
DD RAM Address 00 01 02 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 13
DD RAM Address 40 41 42 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 53

DD RAM Address 14 15 16 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 27
DD RAM Address 54 55 56 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 67


SKU: WH2004A-YLL-JTVE#
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€17,70
€13,00
€12,50
€12,10

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€17,70 IVA esclusa

DESCRIPTION



The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications.  Below are the examples for reference.
  • Industrial: Automotive application, Digital meter, UPS
  • Medical: medical device & medical equipment
  • Home appliance: audio, coffee machine, microwave oven
  • Automobile: dashboard, car audio



DRAWING

20x4 Yellow Backlight VATN LCD Display - Winstar WH2004A-YLL



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Operating voltage for LCD
4 RS H: DATA, L: Instruction code
5 R/W Read/Write select signal
6 E Chip enable signal
7~14 DB0~DB7 Data bus line
15 Vee Negative Voltage Output
16 K Power supply for B/L -



General Specification

ItemStandard ValueUnit
Module Dimension 98.0 × 60.0 mm
Viewing Area 77.0 × 25.2 mm
Mounting Hole 93.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Absolute Maximum Ratings

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 6.5 V



Display Character Address Code

Display position1234567891011121314151617------20
DD RAM Address 00 01 02 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 13
DD RAM Address 40 41 42 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 53

DD RAM Address 14 15 16 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 27
DD RAM Address 54 55 56 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 67


Specifiche di prodotto
Brand Winstar
Size 2.9"
Risoluzione 20x4
Area Attiva (mm) 70.40x20.80
Dot Size 0.55x0.55
Colore B/L, Tipo LCD B/L yellow, VATN
Alimentazione 5V
Interfaccia Display 6800
Display IC ST7066
Struttura Costruttiva COB
Angolo Visione 12H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.9"
Risoluzione 20x4
Area Attiva (mm) 70.40x20.80
Dot Size 0.55x0.55
Colore B/L, Tipo LCD B/L yellow, VATN
Alimentazione 5V
Interfaccia Display 6800
Display IC ST7066
Struttura Costruttiva COB
Angolo Visione 12H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 16
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
