    TFT 1.28" 240x240, Round LCD Panel, Interface RGB, Wide View Angle (IPS), 200 cd/m2, Standard Temp., No Touch
    Cod.: NT013RN001DW

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    Prezzo
    €11,20
    €10,10

    Per quantità maggiori di 9pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €11,20 IVA esclusa
    i h

    General Feature

    Color 262K
    LCD Type IPS-TFT-LCD
    Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
    Display Area(A.A) 32.4(W)*32.4(H)
    Driver IC GC9A01A
    Luminance 200cd/m²
    LED Numbers 2 LEDS
    Interface RGB_18bit 40PIN_0.5mm


    Electrical Characteristics

    Digital Supply Voltage 2.8V(Typ.)
    Forward Voltage 3.0V(Typ.)
    Forward Current 40mA
    Uniformity 75%
    LED Life-Time 20000 Hr


    Optical Characteristics

    Contrast Ratio 1100:1
    Response Time 30ms
    Transmittance 4.9%

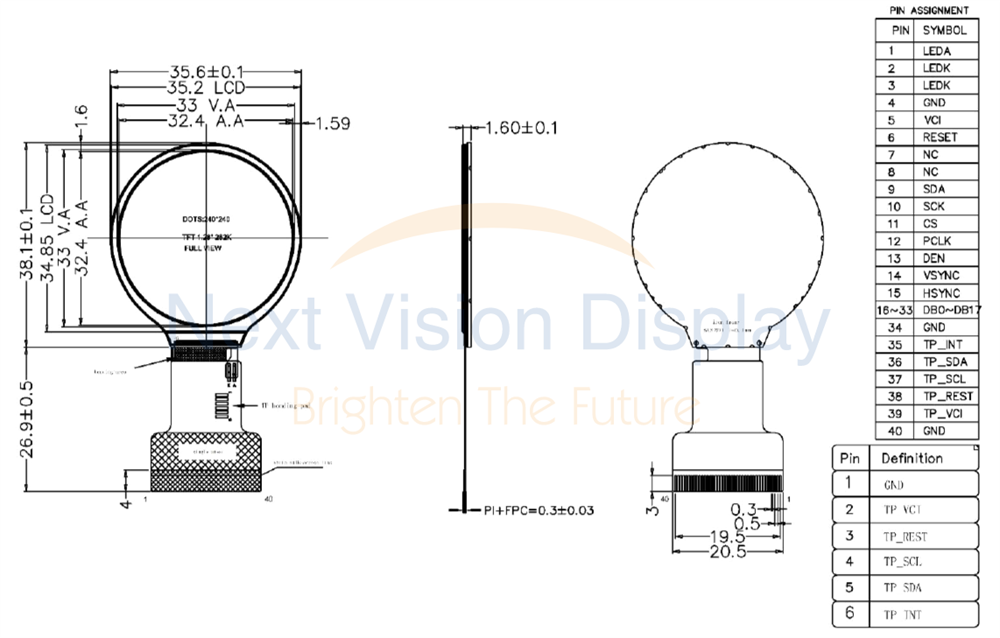

    DRAWING

    Specifiche di prodotto
    Size 1.28"
    Resolution 240x240
    Active Area (mm) 32.40x32.40
    Color Full Color
    Display Interface RGB
    Display IC GC9A01A
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
