NT013RC001DW

TFT 1.28" 240x240, Round LCD Panel, Interface RGB, Wide View Angle (IPS), 150 cd/m2, Standard Temp., Capacitive Touch Panel

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 32.4(W)*32.4(H)
Driver IC GC9A01A
Luminance 150cd/m²
LED Numbers 2 LEDS
Interface RGB_18bit 40PIN_0.5mm



Electrical Characteristics

Digital Supply Voltage 2.8V(Typ.)
Forward Voltage 3.0V(Typ.)
Forward Current 40mA
Uniformity 75%
LED Life-Time 20000 Hr



Optical Characteristics

Contrast Ratio 1100:1
Response Time 30ms
Transmittance 4.9%



Touch Parameters

Feature Description
Type CTP (Capacitive touch panel)
Structure G+FF
Outline Size (mm) 43.6(L)*43.6(W)*1.2(T)
View Area (mm) 33(L)*33(W)
Control Type GT911
Sufrace Hardness ≥6H
Light Transmittance ≥85%
Operating Temperature -20~70°C
Storage Temperature -20~70°C

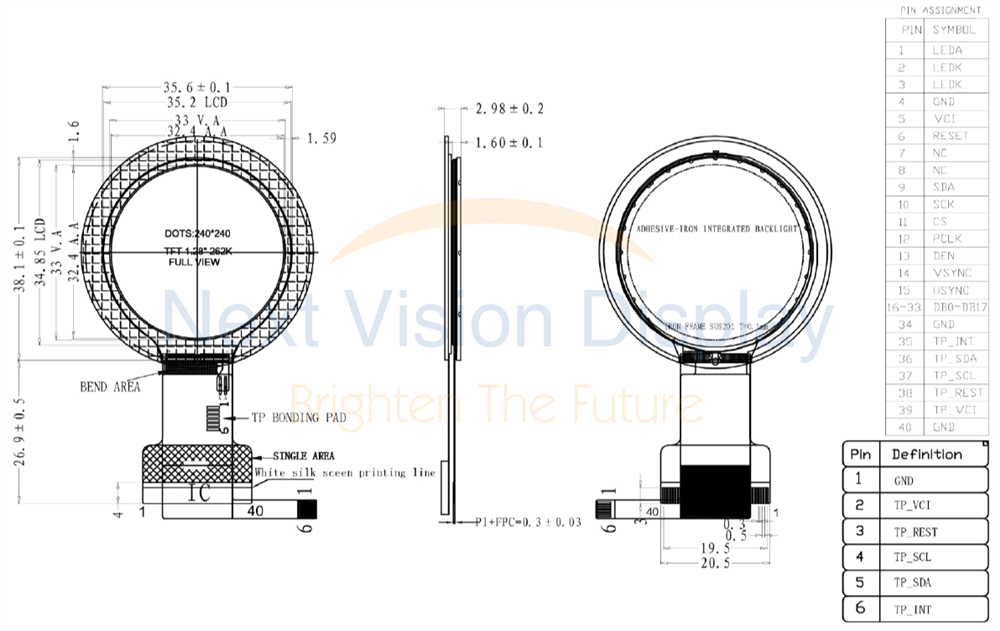

DRAWING

SKU: NT013RC001DW
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
Prezzo
€19,10
€16,70

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€19,10 IVA esclusa

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 32.4(W)*32.4(H)
Driver IC GC9A01A
Luminance 150cd/m²
LED Numbers 2 LEDS
Interface RGB_18bit 40PIN_0.5mm



Electrical Characteristics

Digital Supply Voltage 2.8V(Typ.)
Forward Voltage 3.0V(Typ.)
Forward Current 40mA
Uniformity 75%
LED Life-Time 20000 Hr



Optical Characteristics

Contrast Ratio 1100:1
Response Time 30ms
Transmittance 4.9%



Touch Parameters

Feature Description
Type CTP (Capacitive touch panel)
Structure G+FF
Outline Size (mm) 43.6(L)*43.6(W)*1.2(T)
View Area (mm) 33(L)*33(W)
Control Type GT911
Sufrace Hardness ≥6H
Light Transmittance ≥85%
Operating Temperature -20~70°C
Storage Temperature -20~70°C





DRAWING

Specifiche di prodotto
Brand Next Vision Display
Size 1.28"
Risoluzione 240x240
Area Attiva (mm) 32.40x32.40
Colore Full Color
Interfaccia Display RGB
Display IC GC9A01A
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 1.28"
Risoluzione 240x240
Area Attiva (mm) 32.40x32.40
Colore Full Color
Interfaccia Display RGB
Display IC GC9A01A
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
