NG14432N001WS

Graphic LCD 2.4" 144x32, B/L white, STN blue neg, Trasmissive, COB, 5V, Interface 6800, 6 O'clock, VNEG, Frame, VOP adjustable

DESCRIPTION

NG14432N001WS is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC. This NG14432N001WS module supports 6800 parallel; 5V power supply, and adjustable VOP. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

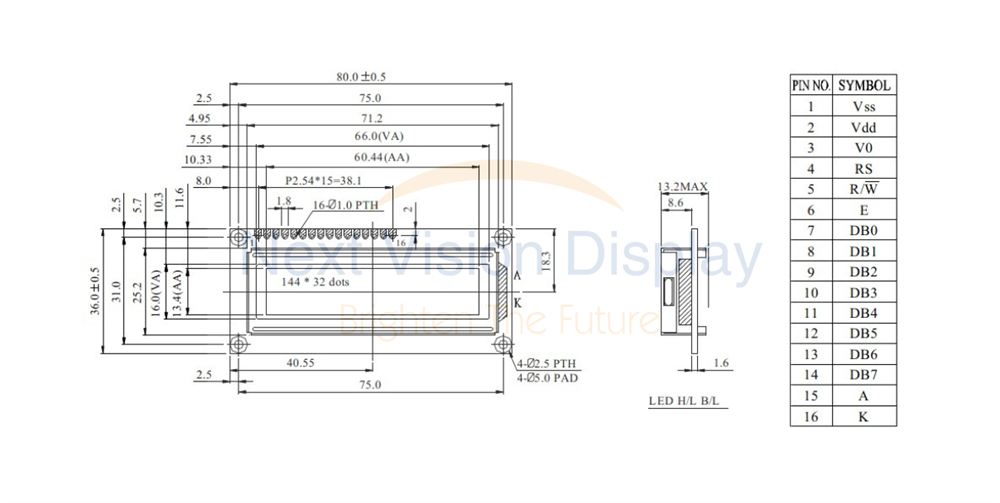

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	GND
2	VDD	5.0V	Power Supply
3	Vo		Contrast adjustment
4	RS	H/L	H/L register select signal
5	R/W	H/L	H/L Read/Write signal
6	E	H/L	Enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	Power supply for B/L +
16	K	－	Power Supply for B/L -

Mechanical Data

Item	Dimension	Unit
Number of dots	144 x 32	－
Module dimension	80.0 x 36.0 x 13.2 (MAX)	mm
View area	66.0 x 16.0	mm
Active area	60.44 x 13.4	mm
Dot size	0.38 x 0.38	mm
Dot pitch	0.42 x 0.42	mm
LCD type	STN Negative, Blue Transmissive
Duty	1/32
View direction	6 o’clock
Backlight Type	LED, White
IC	ST7920
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	T_OP	-20	－	+70	℃
Storage Temperature	T_ST	-30	－	+80	℃
Input Voltage	V_IN	-0.3	－	V_DD+0.3	V
Supply Voltage For Logic	V_DD-V_SS	-0.3	－	5.5	V
Supply Voltage For LCD	V_O-V_SS	0	－	7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	V_DD-V_SS	－	4.5	5.0	5.5	V
Supply Voltage For LCD * Note	V₀-V_SS	Ta=-20℃ Ta=25℃ Ta=70℃	－ 4.1 3.8	－ 4.3 －	5.5 4.5 －	V V V
Input High Volt.	V_IH	－	0.7V_DD	－	V_DD	V
Input Low Volt.	V_IL	－	-0.3	－	0.6	V
Output High Volt.	V_OH	－	0.8V_DD	－	V_DD	V
Output Low Volt.	V_OL	－	0	－	0.4	V
Supply Current	I_DD	V_DD=5.0V	2.0	2.5	3.5	mA

*Note: Please design the VOP adjustment circuit on customer's main board.
