DESCRIPTION
POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.
This Embedded Kit consits of:
1) System on Module (SoM)
2) Multi-interface CARRIER BOARD
3) 5" Industrial grade TFT-LCD Wide View Angle (IPS) & High Brightness panel
4) Connection accessories
1. SYSTEM ON MODULE - SoM TYPE-1

2. CARRIER BOARD

.png)

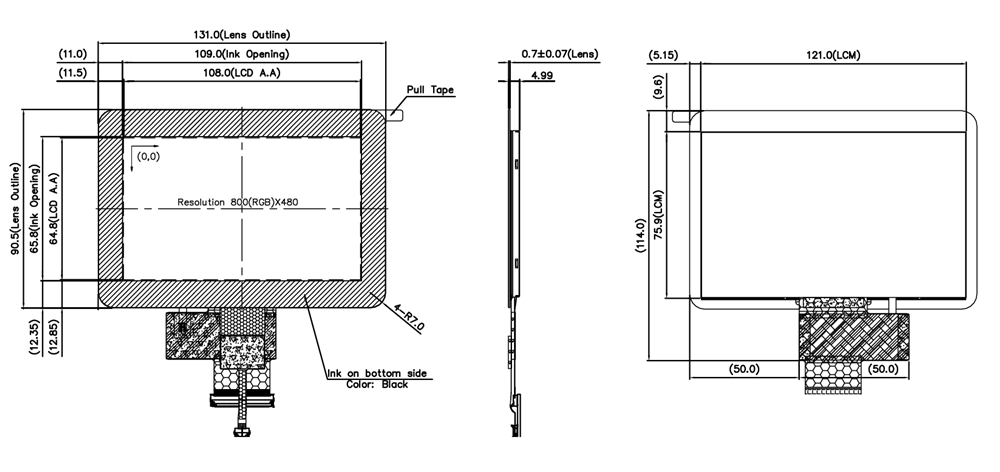

3. TFT-LCD

Contact us at [email protected] to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!
Specifiche di prodotto
|
Size
|
5" |
|
Resolution
|
800x480 |
|
Active Area (mm)
|
108.00x64.80 |
|
Color
|
Full Color |
|
CPU
|
PX30 1.6GHz Quad-Core 64bit ARM Cortex-A35 |
|
Operating System
|
Android / Buildroot |
|
Power supply
|
12V |
|
View Angle
|
IPS |
|
Sunlight Readable
|
High 601~1200cd/m² |
|
Touch Panel
|
Capacitive |
|
O. Temperature (°C)
|
-20~70 |
|
In the Box
|
SoM TYPE-1 + CARRIER BOARD + TFT Panel + Extension board + 50pin FFC + 6pin FFC |
|
Preferred - Not Preferred
|
Preferred |
