TFT 10.1" 1280x800, Intelligent T5L UART COB, 300cd/m²,Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution	1280×800 pixels (support 0°/90°/180°/270°)
Color	24-bit 8R8G8B
Active Area (A.A.)	216.96mm (W)×135.60mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	300nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

LCM interface	Connector P40_0.5mm, LVDS interface
TP interface	Capacitive touch: COB structure, IIC interface
TP interface	Resistive touch: 4Pin_1.0mm interface

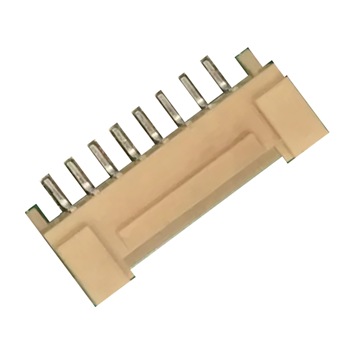

User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	32 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer	3V passive buzzer. Power: <1W
RTC	Super-capacitor for power supply. Accuracy: ±20ppm@25℃. It can work normally for 7 days after power failure
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

SKU: DMG12800T101_01WTC

Brand: DWIN

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

FFC Cable
Display Connector
Added Accessory 1
Added Accessory 2

Prezzi per quantità

Quantità

10+

Prezzo

€141,30

€134,40

€130,10

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€141,30 IVA esclusa

Overview
Specifiche
Download
Contattaci

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution	1280×800 pixels (support 0°/90°/180°/270°)
Color	24-bit 8R8G8B
Active Area (A.A.)	216.96mm (W)×135.60mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	300nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

LCM interface	Connector P40_0.5mm, LVDS interface
TP interface	Capacitive touch: COB structure, IIC interface
TP interface	Resistive touch: 4Pin_1.0mm interface
User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	32 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer	3V passive buzzer. Power: <1W
RTC	Super-capacitor for power supply. Accuracy: ±20ppm@25℃. It can work normally for 7 days after power failure
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Rated Power

Operating Voltage

12~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Specifiche di prodotto

Brand	DWIN
Size	10.1"
Risoluzione	1280x800
Area Visiva (mm)	217.96x136.60
Area Attiva (mm)	216.96×135.60
Colore	Full Color
Nr. Colori	16.7M
Sistema Operativo	DGUSII OS
Alimentazione	12V
Interfaccia Display	UART(TTL)/RS232
Display IC	DWIN ASIC T5L2
Angolo Visione	IPS
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Preferred - Not Preferred	Preferred
