WG240128A1-TTI-VZ#

Graphic LCD 5.4" 240x128, B/L white, FSTN black neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG (Optimized Frame)

DESCRIPTION

WG240128A1-TTI-VZ# is a 240x128 graphic LCD module with a module dimension of 170x103.5 mm, an active area of 119x63.97 mm, and a diagonal size of 5.35 inches. This module is built with the RA6963 controller and has a built-in negative voltage output. It supports an 8080 8-bit parallel interface, a 5V power supply, and an optional 3.3V version. A touch panel is also available as an option for the WG240128A1-TTI-VZ#. Please note that the standard WG240128A1-TTI-VZ# comes with a 20-pin connector, and a 24-pin option is also available. This graphic LCD is suitable for many applications, including white goods, POS systems, home appliances, industrial instruments, automation, audio display systems, and medical devices.

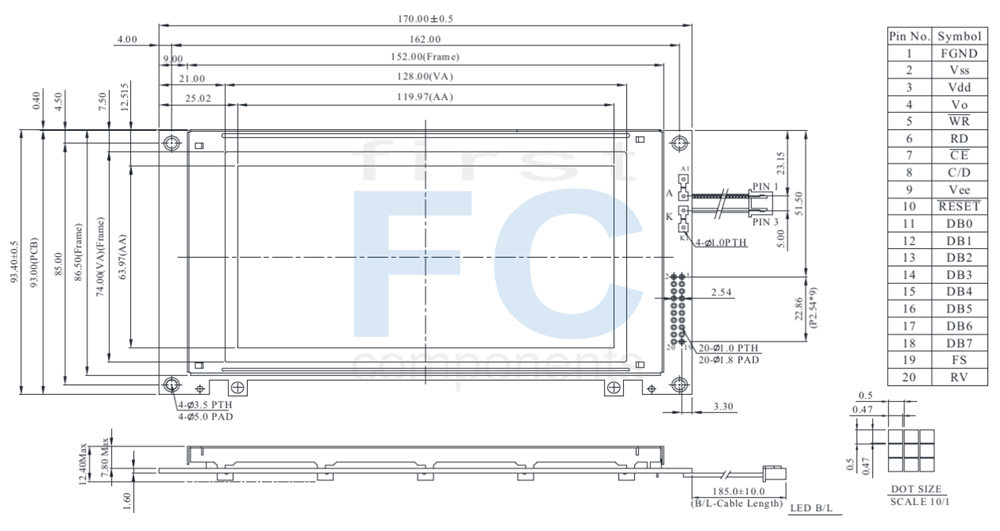

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Number of dots	240 x 128	－
Module dimension	170.0 x 93.4 x 12.4(Max)	mm
View area	128.0 x 74.0	mm
Active area	119.97 x 63.97	mm
Dot size	0.47 x 0.47	mm
Dot pitch	0.50 x 0.50	mm
Duty	1/128
Backlight Type	LED
IC	RA6963
Interface	8080

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 17.5 16.3	－ 18.0 －	20.1 18.5 －	V V V
Input High Volt.	VIH	－	0.8VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.15VDD	V
Output High Volt.	VOH	－	VDD-0.3	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.3	V
Supply Current	IDD	－	－	33	60	mA

Interface Pin Function

Pin No.	Symbol	Description
1	FGND	Frame ground ( Connected to bezel )
2	Vss	GND
3	Vdd	Power supply
4	Vo	Power supply for LCD driver
5	/WR	Data write. Write data into RA6963when WR = L
6	RD	Data read. Read data from RA6963when RD = L
7	/CE	L : Chip enable
8	C/D	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
9	Vee	Negative Voltage Output
10	/RESET	H : Normal ; L : Initialize RA6963
11	DB0	Data bus line
12	DB1	Data bus line
13	DB2	Data bus line
14	DB3	Data bus line
15	DB4	Data bus line
16	DB5	Data bus line
17	DB6	Data bus line
18	DB7	Data bus line
19	FS	Pins for selection of font; H : 6 * 8 , L : 8 * 8
20	RV	H: Reverse L: Normal

SKU: WG240128A1-TTI-VZ#

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

Prezzo

€71,60

€64,50

€60,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€71,60 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Number of dots	240 x 128	－
Module dimension	170.0 x 93.4 x 12.4(Max)	mm
View area	128.0 x 74.0	mm
Active area	119.97 x 63.97	mm
Dot size	0.47 x 0.47	mm
Dot pitch	0.50 x 0.50	mm
Duty	1/128
Backlight Type	LED
IC	RA6963
Interface	8080

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 17.5 16.3	－ 18.0 －	20.1 18.5 －	V V V
Input High Volt.	VIH	－	0.8VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.15VDD	V
Output High Volt.	VOH	－	VDD-0.3	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.3	V
Supply Current	IDD	－	－	33	60	mA

Interface Pin Function

Pin No.	Symbol	Description
1	FGND	Frame ground ( Connected to bezel )
2	Vss	GND
3	Vdd	Power supply
4	Vo	Power supply for LCD driver
5	/WR	Data write. Write data into RA6963when WR = L
6	RD	Data read. Read data from RA6963when RD = L
7	/CE	L : Chip enable
8	C/D	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
9	Vee	Negative Voltage Output
10	/RESET	H : Normal ; L : Initialize RA6963
11	DB0	Data bus line
12	DB1	Data bus line
13	DB2	Data bus line
14	DB3	Data bus line
15	DB4	Data bus line
16	DB5	Data bus line
17	DB6	Data bus line
18	DB7	Data bus line
19	FS	Pins for selection of font; H : 6 * 8 , L : 8 * 8
20	RV	H: Reverse L: Normal

Specifiche di prodotto

Brand	Winstar
Size	5.4"
Risoluzione	240x128
Area Attiva (mm)	119.97x63.97
Dot Size	0.47x0.47
Colore B/L, Tipo LCD	B/L white, FSTN black neg
Alimentazione	5V
Interfaccia Display	8080
Display IC	RA6963
Struttura Costruttiva	COB
Angolo Visione	6H
Frame	Yes
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	20
Passo Pin	2.54mm
Preferred - Not Preferred	Preferred
