    WWSSDEMO70A8-FA-11#002

    Eval Kit for TFT 7" 1024x600, UART interface & GPIO Support, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG) (Optimized PCB Design)
    Brand: Winstar
    Cod.: WWSSDEMO70A8-FA-11#002

    Kit accessori

    Disponibilità: Disponibile
    €142,20 IVA esclusa
    i h

    DESCRIPTION

    7 Inch Smart Display (UART series) Features

    • +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
    • Self-testing after booting function.
    • UART communication interface.
    • Supports UART protocol, default baud rate at 115200Kbps.
    • Built in 16M external flash memory to store the font and Object Dictionary Data.
    • Support capacitive touch panel (CTP).
    • Build in buzzer and can be controlled by Master Device.

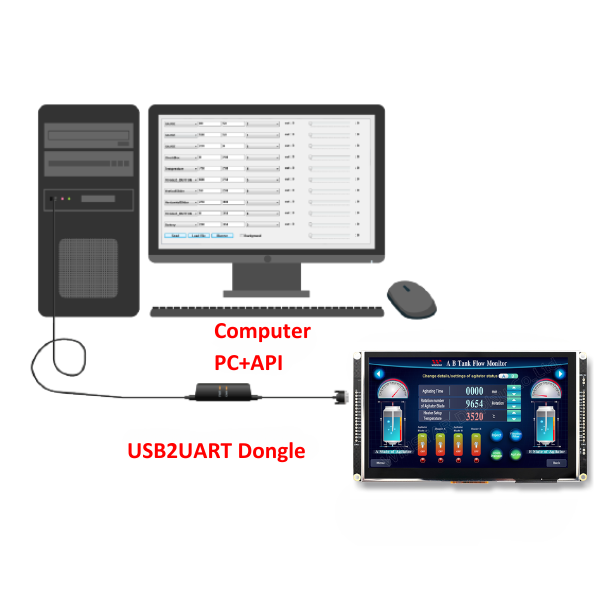

    • Demo set HOST can be used on multiple platforms, such as Computer (with USB to  UART Dongle), MCU, Raspberry Pi (with PiCAN2). 9. GPIO PIN support with 3.3V TTL.


    Software Features_GUI builder:

    • Real-Time Simulation: With the WINSTAR GUI Builder, you can directly simulate your design on a computer without the need to program it to the device first, simplifying adjustments and testing.
    • Convenient Design Process: No programming is required; you can create beautiful interfaces with simple drag-and-drop operations. Images and functions are linked, making it especially suitable for users unfamiliar with programming.
    • Rich Functionality and Widgets: Offers a variety of customizable widgets that integrate graphics and functions, easily handling both simple displays and complex functionalities.


    Software Features_ST development tools:

    Smart Display UART series is designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

    • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
    • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
    • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
    • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

    Networking and Communication Features:

    • Network Type: Peer-to-peer for short distance usage
    • Protocol: Proprietary UART



    Application Scenarios:

    Suitable for industrial short-distance applications, such as coffee machines, smart appliances, and vending machines.



    Competitive Advantages:

    • The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time and effort.
    • Provides real-time simulation and a user-friendly design interface, making it accessible for users without programming backgrounds.
    • Easy start and speed up the development for programmers by built in STM32 MCU on Smart UART module.


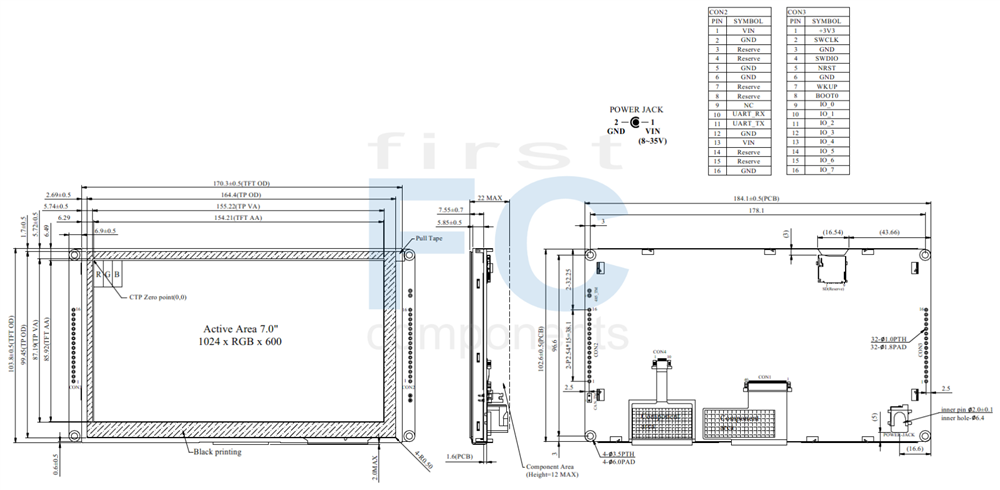

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 8~35 Vdc
    Communication Interface UART --
    MCU STM32F746 N/A
    Flash Memory 16 MB
    SDRAM Memory 16 MHz
    LCD display size 7.0 inch
    Dot Matrix 1024 x RGB x 600(TFT) dot
    Module dimension 184.1(W) x 103.8(H) x 22(D) mm
    Active area 154.2144 x 85.92 mm
    Dot pitch 0.1506 x 0.1432 mm
    Brightness Min:400; Typ:450 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85/85
    Aspect Ratio 16:9
    Touch Panel With CTP
    Surface Glare


    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃


    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage VIN - 8 12 35 V
    Supply current I(mA) - - 520 - mA


    BOM

    ItemDescription
    LCM

    WF70-­1024600A8L#BP3-­FC

    PCBA SV10007R00A8K00N0104


    Interface Pin Function

    CON2 definition:

    PinSymbolFunctionRemark
    1 VIN Power supply GND input Input
    2 GND Power supply 8V to 35V input Input
    3 Reserve - -
    4 Reserve - -
    5 GND Power supply GND input Input
    6 GND Power supply GND input Input
    7 Reserve - -
    8 Reserve - -
    9 NC - Input
    10 UART_RX UART RX interface I/O
    11 UART_TX UART TX interface I/O
    12 GND Power supply GND input Input
    13 VIN Power supply 8V to 35V input Input
    14 Reserve - -
    15 Reserve - -
    16 GND Power supply GND input Input


    CON3 definition:

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND Power GND Output
    7 Wkup WKup,ADC,Timer,Event,I/O Input
    8 BOOT0 Lo: Internal flash boot (Default)
    Hi: External flash boot
    Input
    9 IO_0 ADC,DAC,Timer,Event,I/O @3.3V I/O
    10 IO_1 ADC,Timer,Event,I/O @3.3V I/O
    11 IO_2 ADC,Timer,Event,I/O @3.3V I/O
    12 IO_3 ADC,Timer,Event,I/O @3.3V I/O
    13 IO_4 ADC,Timer,Event,I/O @3.3V I/O
    14 IO_5 ADC,Timer,Event,I/O @3.3V I/O
    15 IO_6 ADC,Timer,Event,I/O @3.3V I/O
    16 IO_7 RST,ADC,Event,I/O @3.3V I/O
    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Power supply 12V
    Display Interface UART + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Preferred - Not Preferred Preferred
