    WWOLEDUSBDEMO-164#

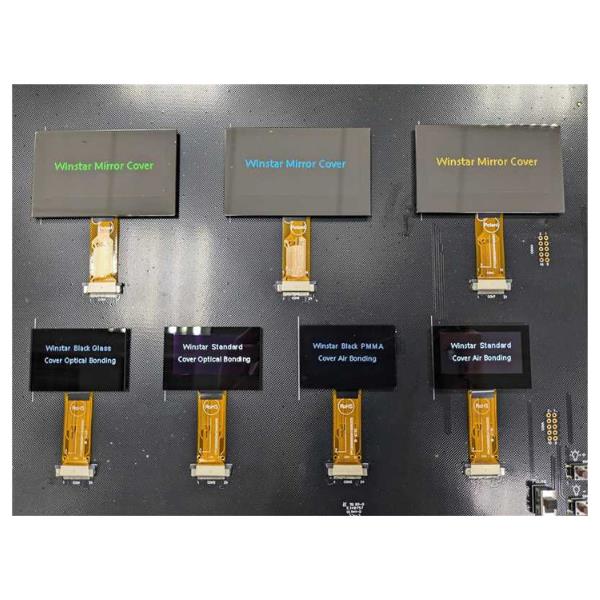

    Evaluation kit for PMOLED with Various Cover Glass and Optical Bonding Options 1.54"-2.42"
    Brand: Winstar
    Cod.: WWOLEDUSBDEMO-164#

    Kit accessori

    SPECIFICATIONS

    ItemModuleNote

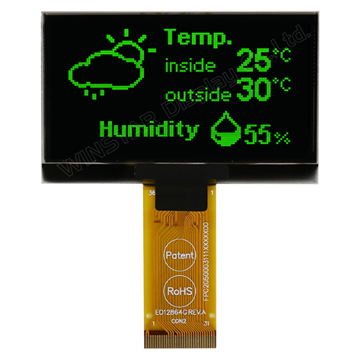

    2.42" 128*64 WEO12864G#GP3N00Z00-FC Winstar Mirror Cover (Green)

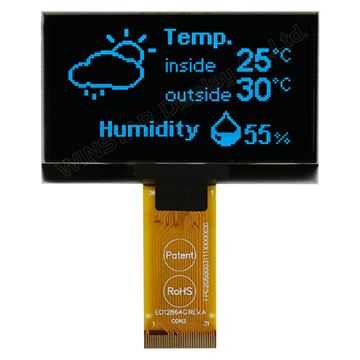

    2.42" 128*64 WEO12864S#GP3N00Z00-FC Winstar Mirror Cover (Sky Blue)

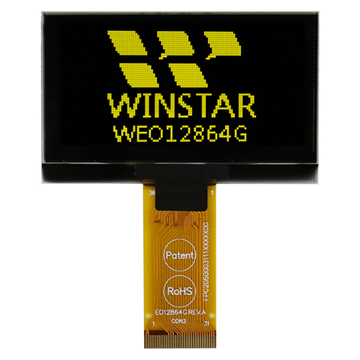

    2.42" 128*64 WEO12864L#GP3N00Z00-FC Winstar Mirror Cover (Yellow)
    1.54" 128*64 WEO12864W#AP3N00Z07-FC Winstar Black Glass Cover Optical Bonding
    1.54" 128*64 WEO12864W#AP3N00Z04-FC Wistar Standards Cover Air Bonding
    1.54" 128*64 WEO12864W#AP3N00Z05-FC Winstar Standard Cover Optical Bonding
    1.54" 128*64 WEO12864W#AP3N00Z06-FC Winstar Black PMMA Cover Air Bonding



    WEO12864W#AP3N00Z04-FCWEO12864W#AP3N00Z06-FCWEO12864W#AP3N00Z05-FCWEO12864W#AP3N00Z07-FC
    1.54" 1.54" 1.54" 1.54"
    90% Transparent Cover Glass 20% BMMA Cover Glass 90% Transparent Cover Glass 40% Black Cover Glass
    Air Bonding Air Bonding Optical Bonding Optical Bonding
    43.04 x 28.22 x 2.66 (mm) 43.04 x 28.22 x 2.59 (mm) 43.04 x 28.22 x 2.69 (mm) 43.04 x 28.22 x 3.39 (mm)
    Cover Glass Thickness: 1.1mm Cover Glass Thickness: 1.0mm Cover Glass Thickness: 1.1mm Cover Glass Thickness: 1.8mm
    Brightness: 120 cd/m2

    Brightness: 50 cd/m2

    (Because the OLED brightness is adjusted through FW, the brightness after cover bonded has not dropped too much)

    Brightness: 120 cd/m2

    Brightness: 90 cd/m2

    (Because the OLED brightness is adjusted through FW, the brightness after cover bonded has not dropped too much)

    Integrated Black Panel (IBP) Effects: Poor Integrated Black Panel (IBP) Effects: Good Integrated Black Panel (IBP) Effects: Poor Integrated Black Panel (IBP) Effects: Very Good
    Price Level: Low Price Level: OK Price Level: High Price Level: Highest
    Recommended for the customers who have no requirement of IBP effects

    1. Recommended for customers who have extremely high requirements on visual effects quality

    2. Transmittance of Cover Glass is the lowest

    Recommended for the customers who have no requirement of IBP effects

    1. Recommended for the customers who have extremely high requirements on visual effects quality

    2. Transmittance of Cover Glass is low

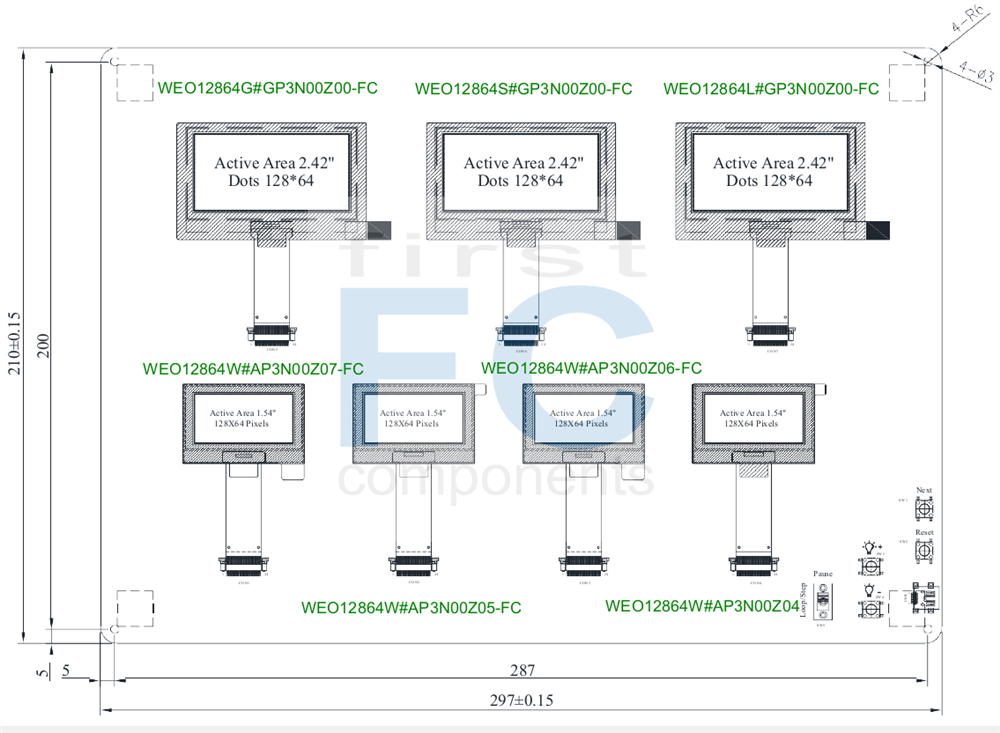

    DRAWING

    Specifiche di prodotto
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
