    WO24064-84IC#FC

    Graphic LCD 4.2" 240x64, B/L white, STN blue neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock
    Brand: Winstar
    Cod.: WO24064-84IC#FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €18,70
    €16,90
    €15,90
    €15,50

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €18,70 IVA esclusa
    i h

    MOQ

    After sample PO, MP MOQ 1000pcs



    DESCRIPTION

    Winstar standard COG 240 x 64 graphic LCD modules built in with ST7586S IC which supports 6800/8080, 4 Line SPI or 3 Line SPI (optional) interface. The display has outline dimension 111.4 x 45.5 mm and AA size of 103.17 x 27.49 mm. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

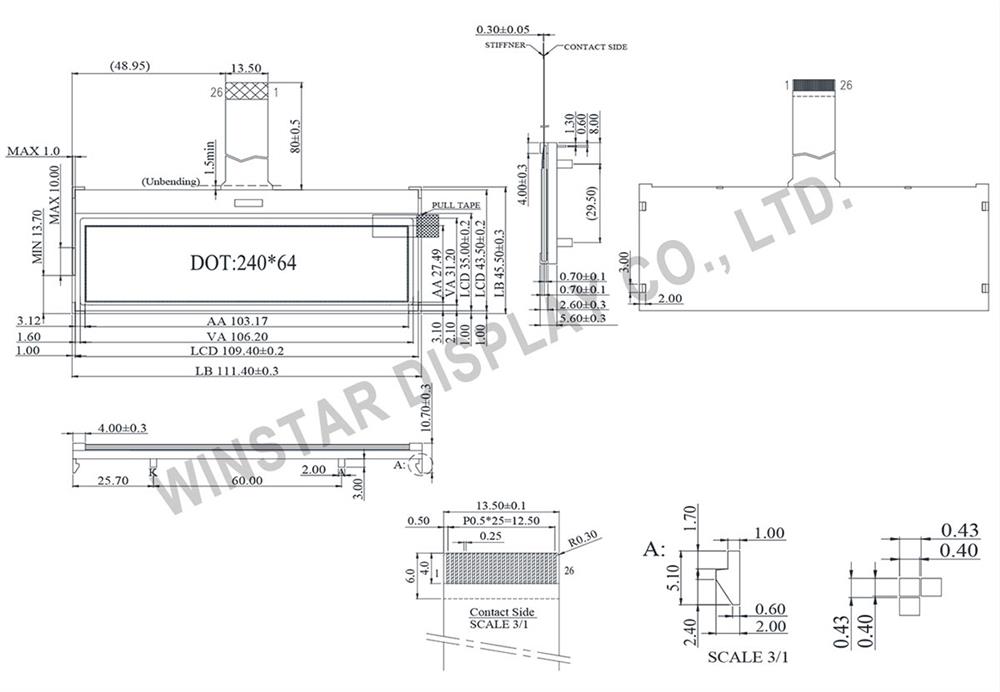

    DRAWING

    240x64 COG LCD Display - Winstar WO24064C

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VG VG is the power of SEG-drivers.
    2 XV0 Negative operating voltage of COM-drivers.
    3 V0 Positive operating voltage for Vop generator.
    4 VM VM is the non-select voltage level of COM-drivers.
    5 VDDA Analog power for internal booster.
    6 VSS Ground
    7 VD1 VD1 is the power source of digital circuits.
    8 VDDI Power of interface I/O circuit.
    9 CSB Chip select input pins
    10 IF3 These pins select interface operation mode.
    "110" : 80 series。 "100" : 68 series。 "011" : SPI-4 。"010" : SPI-3
    11 IF2
    12 IF1
    13 RSTB Controller reset signal, Active Low
    14 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
    15~22 D7~D0 Data bus line
    23 NC No connection
    24 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
    25 A0(SCL) Data/ Instruction select signal / In serial mode used as SCL (serial-clock)
    26 VSS Ground



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 111.4 × 45.5 mm
    Viewing Area 106.20 × 31.20 mm
    Dot Pitch 0.43 × 0.43 mm
    Dot Size 0.40 × 0.40 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3.3 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 10.0 V


    Specifiche di prodotto
    Size 4.2"
    Resolution 240x64
    Active Area (mm) 103.17x27.49
    Dot Size 0.40x0.40
    B/L color, LCD type B/L white, STN blue neg
    Power supply 3.3V
    Display Interface 6800/8080/SPI
    Display IC ST7586S
    Constructive Structure COG
    View Angle 6H
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 26
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
