    WO240128-85HX#001-FC

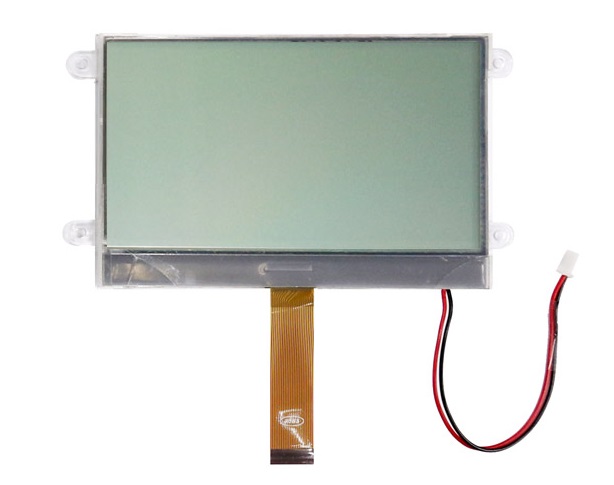

    Graphic LCD 3.7" 240x128, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080/SPI, 6 O'clock, Frame
    Brand: Winstar
    Cod.: WO240128-85HX#001-FC

    Kit accessori

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    MOQ

    After sample PO, MOQ 1Kpcs

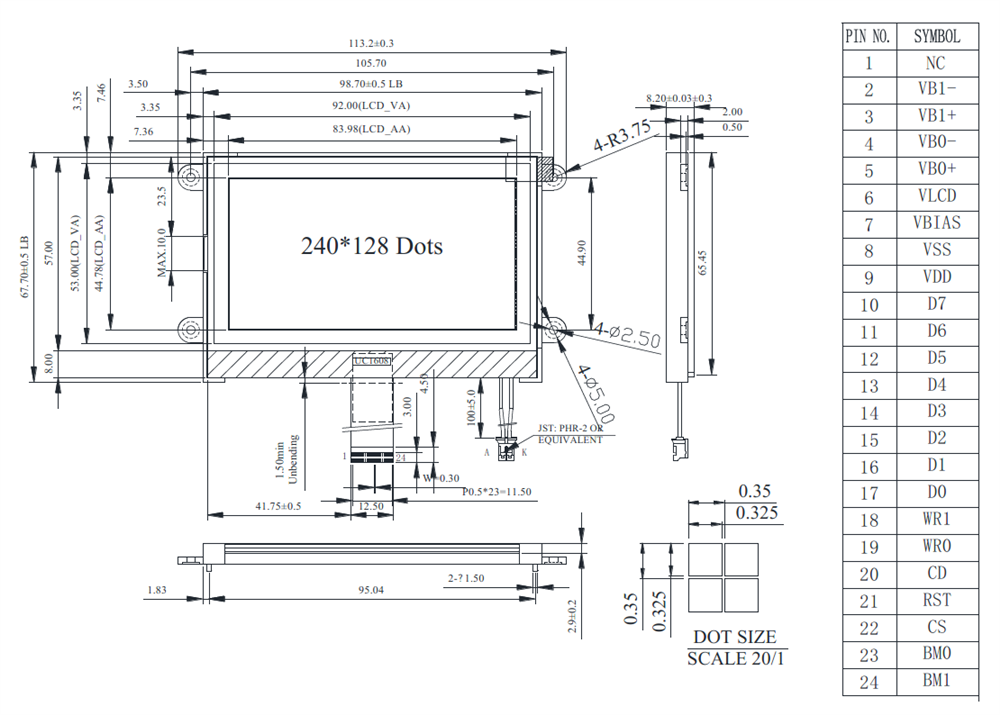

    DRAWING

    Specifiche di prodotto
    Size 3.7"
    Resolution 240x128
    Active Area (mm) 83.97x44.77
    Dot Size 0.32x0.32
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 3V
    Display Interface 6800/8080/SPI
    Display IC UC1608
    Constructive Structure COG
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 24
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
