DESCRIPTION

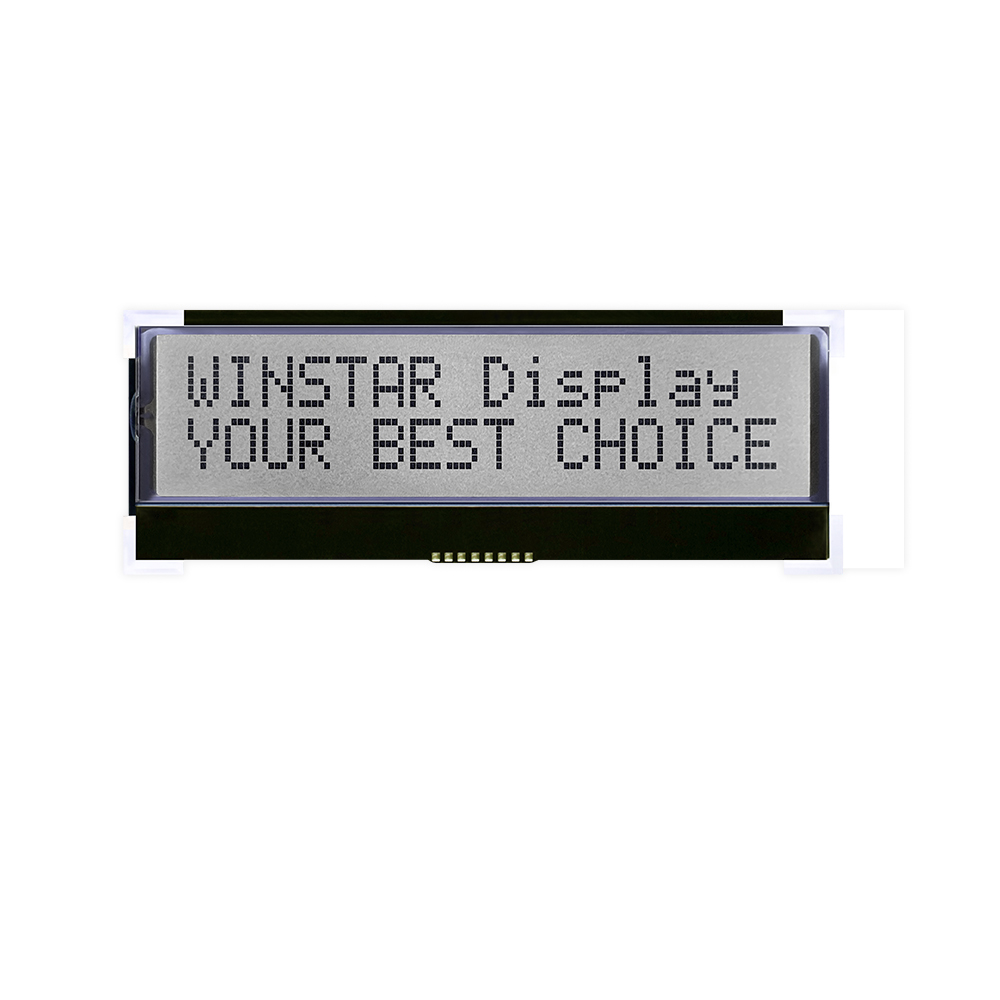

16 characters x 2 lines COG Character LCD module with metal pin connection. This display is built in with ST7032Ai controller IC and it supports I2C interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.
DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
| 1 |
Vout |
Positive Voltage output |
| 2 |
CAP1N |
DC/DC voltage converter. |
| 3 |
CAP1P |
DC/DC voltage converter. |
| 4 |
VDD |
Power supply for logic |
| 5 |
VSS |
Ground |
| 6 |
SDA |
Serial input data |
| 7 |
SCL |
Serial clock input |
| 8 |
RST |
Controller reset signal, Active Low |
Mechanical Data
| Item | Standard Value | Unit |
| Module Dimension |
74.2 × 25.2 |
mm |
| Viewing Area |
61.0 × 15.1 |
mm |
| Dot Pitch |
0.60 × 0.70 |
mm |
| Dot Size |
0.55 × 0.65 |
mm |
Electrical Characteristics
| Item | Symbol | Standard value typ. | Unit |
| Input Voltage |
VDD |
3/5 |
V |
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
Vo-Vss |
4.50 |
V |
Specifiche di prodotto
|
Size
|
2.3" |
|
Resolution
|
16x2 |
|
Active Area (mm)
|
56.20x11.50 |
|
Dot Size
|
0.55x0.65 |
|
B/L color, LCD type
|
B/L white, FSTN white pos |
|
Power supply
|
3V |
|
Display Interface
|
I2C |
|
Display IC
|
ST7032Ai |
|
Constructive Structure
|
COG |
|
View Angle
|
6H |
|
Frame
|
No |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
Pin Strip |
|
Pin Nr.
|
8 |
|
Pin Pitch
|
1.27mm |
|
Preferred - Not Preferred
|
Preferred |
