DESCRIPTION
Winstar Graphic 128x64 Monochrome Displays COG LCD built in with ST7567-G IC which supports 6800/8080 and SPI interface. The display is having the outline dimension 80.0 x 54.0 mm and AA size of 66.52 x 33.24 mm. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

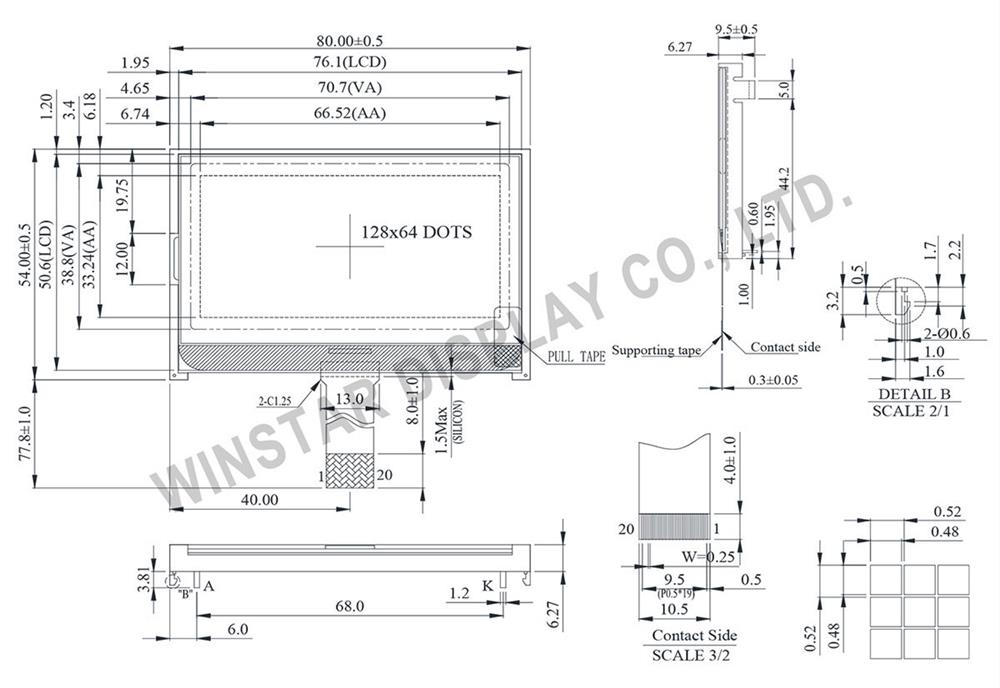

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
| 1 |
PSB |
Selects the interface type: Serial or Parallel. |
| 2 |
C86 |
Interface selection 6800/8080 |
| 3 |
VG |
VG is the power of SEG-drivers. |
| 4 |
XV0 |
Negative operating voltage of COM-drivers. |
| 5 |
V0 |
Bias voltage levels for LCD driving |
| 6 |
VSS |
Ground |
| 7 |
VDD |
Power supply for logic |
| 8~15 |
D7~D0 |
Data bus line |
| 16 |
ERD |
8080 family: Read signal, 6800 family: Enable clock |
| 17 |
RWR |
8080 family: Write signal, 6800 family: Read/Write signal |
| 18 |
A0 |
Data/ Instruction select signal |
| 19 |
RSTB |
Controller reset signal, Active Low |
| 20 |
CSB |
Chip select input pins |
Mechanical Data
| Item | Standard Value | Unit |
| Module Dimension |
80.0 × 54.0 |
mm |
| Viewing Area |
70.7 × 38.8 |
mm |
| Dot Pitch |
0.52 × 0.52 |
mm |
| Dot Size |
0.48 × 0.48 |
mm |
Electrical Characteristics
| Item | Symbol | Standard value typ. | Unit |
| Input Voltage |
VDD |
3.0 |
V |
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
Vo-Vss |
10.0 |
V |
Specifiche di prodotto
|
Size
|
2.9" |
|
Resolution
|
128x64 |
|
Active Area (mm)
|
66.52x33.24 |
|
Dot Size
|
0.48x0.48 |
|
B/L color, LCD type
|
B/L white, STN blue neg |
|
Power supply
|
3.3V |
|
Display Interface
|
6800/8080/SPI |
|
Display IC
|
ST7567-G |
|
Constructive Structure
|
COG |
|
View Angle
|
6H |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
20 |
|
Pin Pitch
|
0.5mm |
|
Preferred - Not Preferred
|
Preferred |
