    WO12864-05HT1#FC

    Graphic LCD 1.15" 128x64, Without B/L, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7567S)
    Brand: Winstar
    Cod.: WO12864-05HT1#FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €7,90
    €7,10
    €6,70
    €6,50

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €7,90 IVA esclusa
    i h

    DESCRIPTION

    Monochrome graphic LCD module made of 128x64 dot matrix format. This COG module is built in with ST7567S IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface, 1/65 driving duty, 1/9 Bias. WO12864-xxxT1#FC is the alternative model for WO12864-xxxT#FC corresponding IC shortage or longer lead-time. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for applications that demand more compact package displays.

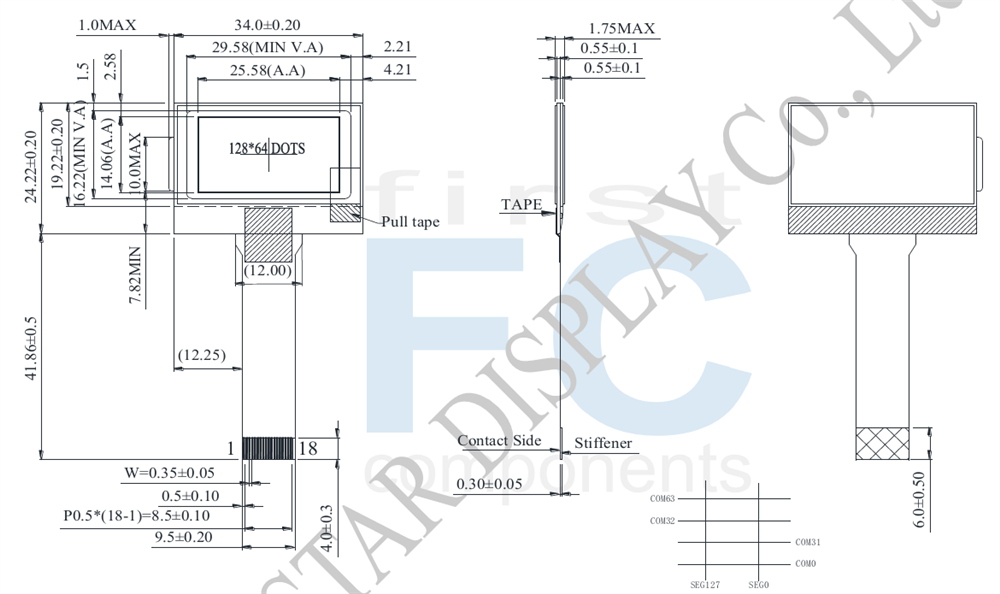

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VDD Power supply pin for logic.
    2 VSS Ground pin, connected to 0V
    3 CSB Chip select input pin.
    4 NC NC
    5 RSTB Hardware reset input pin
    6 A0 It determines whether the access is related to data or
    command.
    7 RWR
    C86MPU TypeRWRDescription
    H 6800 series R/W Read/Write control input pin.
    R/W="H":read
    R/W="L":write.
    L 8080 series /WR Write enable input pin.
    Signals on D[7:0] will be latched at the rising edge of /WR signal.
    8 ERD
    C86MPU TypeERDDescription
    H 6800 series E Read/Write control input pin.
    R/W="H": When E is "H", D[7:0] are in output mode.
    R/W="L": Signals on D[7:0] are latched at the falling edge of E signal
    L 8080 series /RD Read enable input pin.
    When /RD is "L", D[7:0] are in output mode.
    9~16 D0~D7 8-bit bi-directional data bus. Connect to the data bus of 8-bit
    microprocessor. When CSB is non-active (CSB=“H”), D[7:0]
    pins are high impedance.
    17 C86 C86 selects the microprocessor type in parallel interface mode
    18 PSB Interface selection



    General Specification

    ItemDimensionUnit
    Number of dots 128 × 64 -
    Module dimension 38.0 × 26.42 mm
    View area 29.58 × 16.22 mm
    Active area 25.58 × 14.06 mm
    Dot size 0.18 × 0.20 mm
    Dot pitch 0.20 × 0.22 mm
    Duty 1/65 DUTY,1/9 BIAS
    View direction 6 o’clock
    IC ST7567S
    Interface 6800/8080/4-Line SPI



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Specifiche di prodotto
    Size 1.15"
    Resolution 128x64
    Active Area (mm) 25.58x14.06
    Dot Size 0.18x0.20
    B/L color, LCD type Without B/L, FSTN white pos
    Power supply 3.3V
    Display Interface 6800/8080/SPI
    Display IC ST7567S
    Constructive Structure COG
    View Angle 6H
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 18
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
