WL0F0007000D2TFAASA00-FC

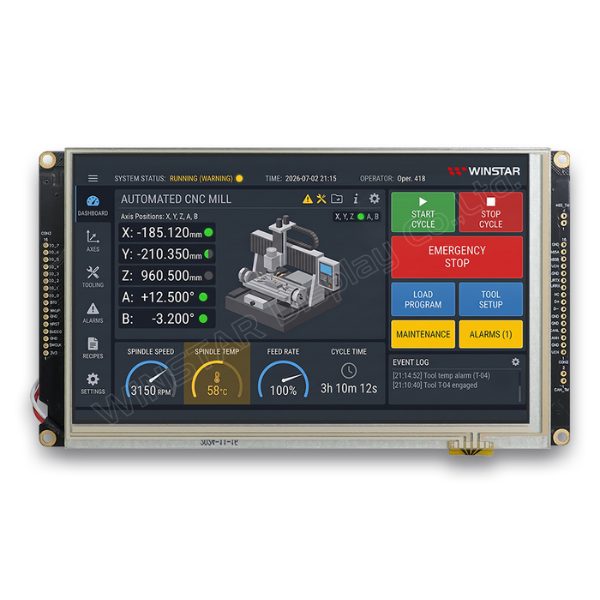

TFT 7" 800x480, UART interface & GPIO Support, High Brightness 850cd/m², Wide View Angle (IPS), Resistive touch panel

DESCRIPTION

    Link to 'SMART GUI BUILDER' INTRODUCTION & VIDEO

7 Inch Smart Display (UART series) Features

  • +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 5 Watt.
  • Self testing after booting function.
  • UART communication interface.
  • Supports UART protocol, default baud rate at 115200Kbps.
  • Built in 16MB external flash memory to store the font and Object Dictionary Data.
  • Support resistive touch panel (RTP).
  • Build in buzzer and can be controlled by Master Device.

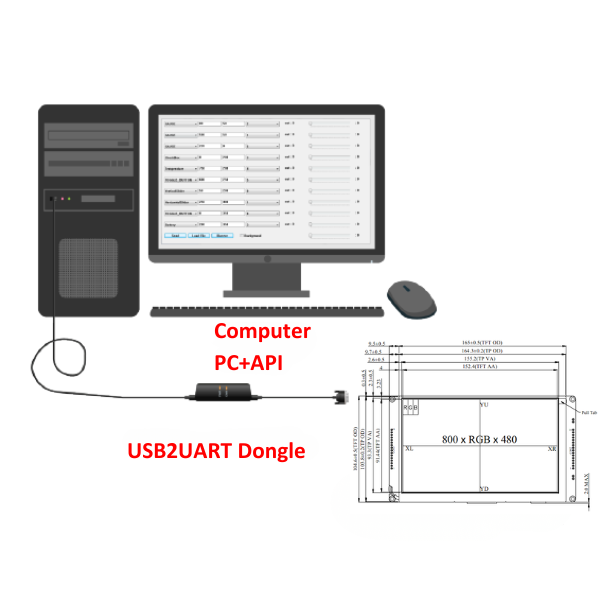

  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to Virtual COM Dongle), MCU, Raspberry Pi.
  • GPIO PIN support With 3.3V.

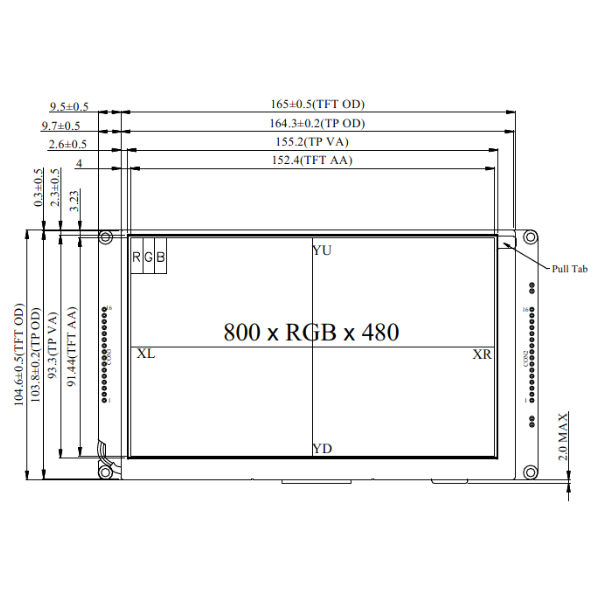

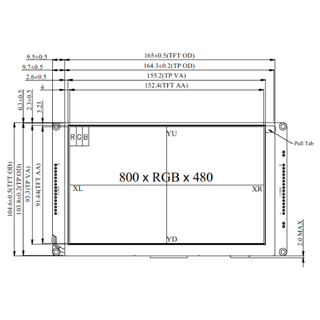

DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 8~35 dynamic Vdc
Communication Interface UART --
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Memory 16 MHz
LCD display size 7.0 inch
Dot Matrix 800 x RGB x 480(TFT) dot
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 152.4(H) x 91.44(V) mm
Dot pitch 0.1905(W) x 0.1905(H) mm
Brightness Min:750; Typ:850 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 15:9
Touch Panel With RTP
Surface Anti-Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80


Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC 8 12 35 V
Supply current I(mA) 385 mA


BOM

ItemDescription
LCM

WF70-­800480D2D#0SP1-­FC

PCBA SV10007R00D2B00N0100


Interface Pin Function

CON2 definition:

PinSymbolFunctionRemark
1 Reserve - -
2 Reserve - -
3 Reserve - -
4 Reserve - -
5 Reserve - -
6 Reserve - -
7 Reserve - -
8 Reserve - -
9 Reserve - -
10 URRX UART Receiver interface Input
11 URTX UART Transceiver interface Output
12 GND Power supply GND input Input
13 VIN Power supply V+ input Input
14 Reserve - -
15 Reserve - -
16 Reserve - -


CON3 definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND GND -
7 Wkup (PA0) for system Resume
from suspend (Reserve)
WKup,ADC,Timer,Event,I/O
8 BT0 BOOT0 (Normal Low) Input
9 IO_0 ADC,DAC,Timer,Event,I/O PA5
10 IO_1 ADC,Timer,Event,I/O PA6
11 IO_2 ADC,Timer,Event,I/O PA7
12 IO_3 RST,Timer,Event,I/O PA8
13 IO_4 RST,Timer,Event,I/O PC13
14 IO_5 ADC,Timer,Event,I/O PB11
15 IO_6 RST,Timer,Event,I/O PA15
16 IO_7 RST,ADC,Event,I/O PD11



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

EVALUATION KIT

Evaluation Kit P/N WWSSDEMO70D2-FA-15# available at the links:

ITA: https://www.first-components.com/it/wwssdemo70d2-fa-15

ENG: https://www.first-components.com/en/wwssdemo70d2-fa-15

SKU: WL0F0007000D2TFAASA00-FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€115,30
€103,80
€97,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€115,30 IVA esclusa

DESCRIPTION

    Link to 'SMART GUI BUILDER' INTRODUCTION & VIDEO

7 Inch Smart Display (UART series) Features

  • +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 5 Watt.
  • Self testing after booting function.
  • UART communication interface.
  • Supports UART protocol, default baud rate at 115200Kbps.
  • Built in 16MB external flash memory to store the font and Object Dictionary Data.
  • Support resistive touch panel (RTP).
  • Build in buzzer and can be controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to Virtual COM Dongle), MCU, Raspberry Pi.
  • GPIO PIN support With 3.3V.



DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 8~35 dynamic Vdc
Communication Interface UART --
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Memory 16 MHz
LCD display size 7.0 inch
Dot Matrix 800 x RGB x 480(TFT) dot
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 152.4(H) x 91.44(V) mm
Dot pitch 0.1905(W) x 0.1905(H) mm
Brightness Min:750; Typ:850 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 15:9
Touch Panel With RTP
Surface Anti-Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80


Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC 8 12 35 V
Supply current I(mA) 385 mA


BOM

ItemDescription
LCM

WF70-­800480D2D#0SP1-­FC

PCBA SV10007R00D2B00N0100


Interface Pin Function

CON2 definition:

PinSymbolFunctionRemark
1 Reserve - -
2 Reserve - -
3 Reserve - -
4 Reserve - -
5 Reserve - -
6 Reserve - -
7 Reserve - -
8 Reserve - -
9 Reserve - -
10 URRX UART Receiver interface Input
11 URTX UART Transceiver interface Output
12 GND Power supply GND input Input
13 VIN Power supply V+ input Input
14 Reserve - -
15 Reserve - -
16 Reserve - -


CON3 definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND GND -
7 Wkup (PA0) for system Resume
from suspend (Reserve)
WKup,ADC,Timer,Event,I/O
8 BT0 BOOT0 (Normal Low) Input
9 IO_0 ADC,DAC,Timer,Event,I/O PA5
10 IO_1 ADC,Timer,Event,I/O PA6
11 IO_2 ADC,Timer,Event,I/O PA7
12 IO_3 RST,Timer,Event,I/O PA8
13 IO_4 RST,Timer,Event,I/O PC13
14 IO_5 ADC,Timer,Event,I/O PB11
15 IO_6 RST,Timer,Event,I/O PA15
16 IO_7 RST,ADC,Event,I/O PD11



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

EVALUATION KIT

Evaluation Kit P/N WWSSDEMO70D2-FA-15# available at the links:

ITA: https://www.first-components.com/it/wwssdemo70d2-fa-15

ENG: https://www.first-components.com/en/wwssdemo70d2-fa-15

Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 152.40x91.44
Colore Full Color
Alimentazione 12V
Interfaccia Display UART + GPIO
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
Temperatura O. (°C) -20~70
