DESCRIPTION
The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.
- Industrial: Automotive application, Digital meter, UPS
- Medical: medical device & medical equipment
- Home appliance: audio, coffee machine, microwave oven
- Automobile: dashboard, car audio

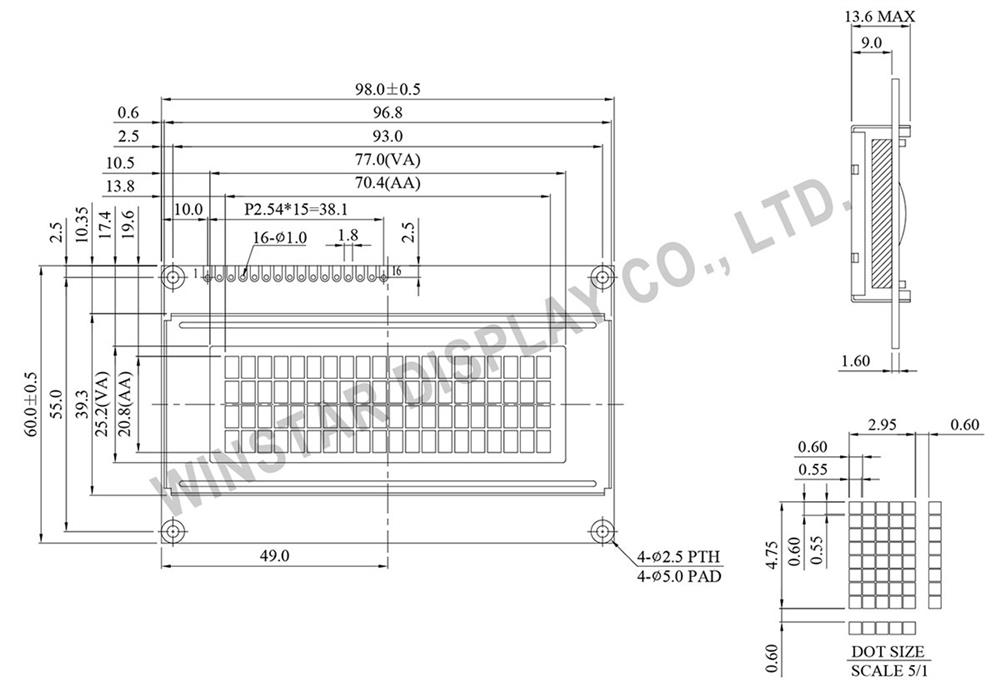

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
| 1 |
VSS |
Ground |
| 2 |
VDD |
Power supply for logic |
| 3 |
VO |
Operating voltage for LCD |
| 4 |
RS |
H: DATA, L: Instruction code |
| 5 |
R/W |
Read/Write select signal |
| 6 |
E |
Chip enable signal |
| 7~14 |
DB0~DB7 |
Data bus line |
| 15 |
Vee |
Negative Voltage Output |
| 16 |
K |
Power supply for B/L - |
General Specification
| Item | Standard Value | Unit |
| Module Dimension |
98.0 × 60.0 |
mm |
| Viewing Area |
77.0 × 25.2 |
mm |
| Mounting Hole |
93.0 × 55.0 |
mm |
| Character Size |
2.95 × 4.75 |
mm |
Absolute Maximum Ratings
| Item | Symbol | Standard Value typ. | Unit |
| Input Voltage |
VDD |
5.0 |
V |
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO |
6.5 |
V |
Display Character Address Code
| Display position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | --- | --- | 20 |
| DD RAM Address |
00 |
01 |
02 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
| DD RAM Address |
40 |
41 |
42 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
53 |
| DD RAM Address |
14 |
15 |
16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
27 |
| DD RAM Address |
54 |
55 |
56 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
67 |
Specifiche di prodotto
|
Size
|
2.9" |
|
Resolution
|
20x4 |
|
Active Area (mm)
|
70.40x20.80 |
|
Dot Size
|
0.55x0.55 |
|
B/L color, LCD type
|
B/L blue, VATN |
|
Power supply
|
5V |
|
Display Interface
|
6800 |
|
Display IC
|
ST7066 |
|
Constructive Structure
|
COB |
|
View Angle
|
12H |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
Soldering PAD |
|
Pin Nr.
|
16 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Preferred |
