MOQ
After sample PO, MP MOQ 1K

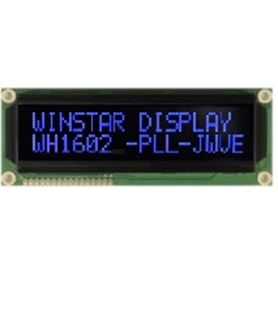

DESCRIPTION
The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.
- Industrial: Automotive application, Digital meter, UPS
- Medical: medical device & medical equipment
- Home appliance: audio, coffee machine, microwave oven
- Automobile: dashboard, car audio

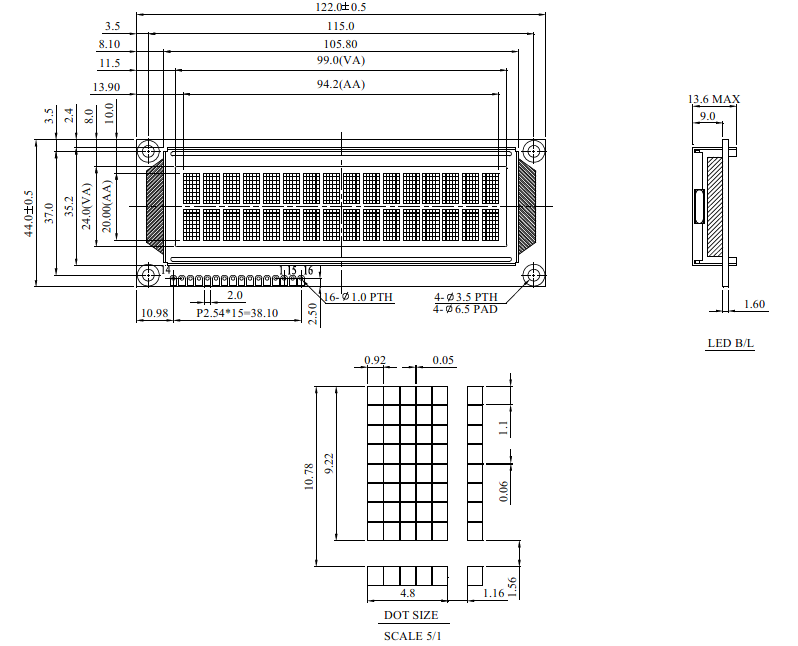

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
| 1 |
VSS |
Ground |
| 2 |
VDD |
Power supply for logic |
| 3 |
VO |
Operating voltage for LCD |
| 4 |
RS |
H: DATA, L: Instruction code |
| 5 |
R/W |
Read/Write select signal |
| 6 |
E |
Chip enable signal |
| 7~14 |
DB0~DB7 |
Data bus line |
| 15 |
Vee |
Negative Voltage Output |
| 16 |
K |
Power supply for B/L - |
General Specification
| Item | Standard Value | Unit |
| Module Dimension |
122.0× 44.0 |
mm |
| Viewing Area |
99.0 × 24.0 |
mm |
| Character Size |
4.8 × 9.22 |
mm |
Absolute Maximum Ratings
| Item | Symbol | Standard Value typ. | Unit |
| Input Voltage |
VDD |
5.0 |
V |
Specifiche di prodotto
|
Size
|
3.8" |
|
Resolution
|
16x2 |
|
Active Area (mm)
|
94.20x20.00 |
|
Dot Size
|
0.92x1.10 |
|
B/L color, LCD type
|
B/L blue, VATN |
|
Power supply
|
5V |
|
Display Interface
|
6800 |
|
Display IC
|
RW1063 |
|
Constructive Structure
|
COB |
|
View Angle
|
12H |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
Soldering PAD |
|
Pin Nr.
|
16 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Not Preferred |
