    Character LCD 2.3" 16x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock
    Brand: Winstar
    Cod.: WH1602P-YYH-ET#

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €9,90
    €8,90
    €8,40
    €8,20

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €9,90 IVA esclusa
    i h

    DESCRIPTION



    WH1602P is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel.  WH1602P is available in several different backlight colors including blue, green, white, yellow-green, amber, red or white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

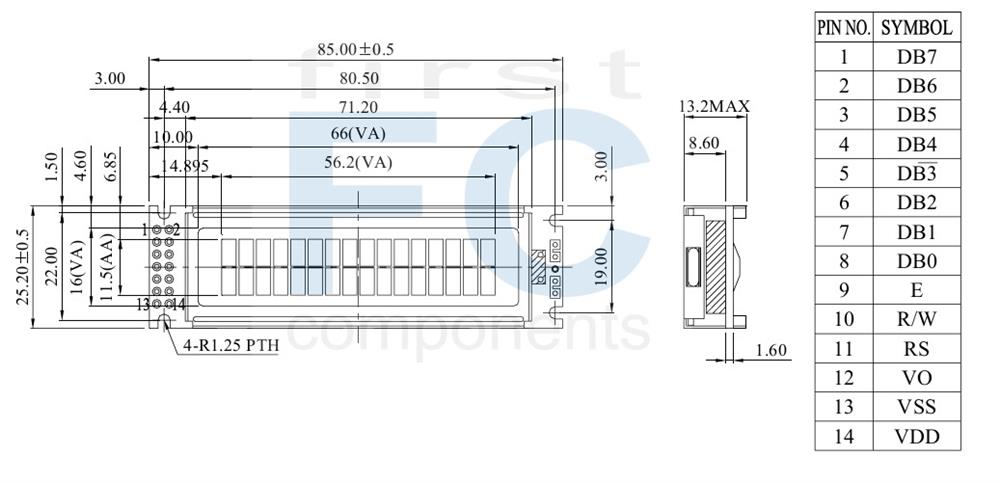

    DRAWING




    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1~8 DB7~DB0 Data bus line
    9 E Enable signal
    10 R/W Read/Write select signal
    11 RS Data/ Instruction select signal
    12 VO Contrast Adjustment
    13 VSS Ground
    14 VDD Power supply for logic



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 85.0 × 25.2 mm
    Viewing Area 66.0 × 16.0 mm
    Mounting Hole 80.5 × 22.0 mm
    Character Size 2.95 × 5.55 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 5.0 V
    Recommended LCD Driving
    Voltage for Normal Temp. Version module @25°C
    VDD-VO 3.70 V



    Display Character Address Code

    Display Position12345678910111213141516
    DD RAM Address 00 01                           0F
    DD RAM Address 40 41                           4F


    Specifiche di prodotto
    Size 2.3"
    Resolution 16x2
    Active Area (mm) 56.20x11.50
    Dot Size 0.55x0.65
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 14
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
