    Character LCD 2.4" 16x1, Without B/L, TN gray pos, Reflective, COB, 3V, Interface 6800, Font Eng/Eu, 6 O'clock
    Brand: Winstar
    Cod.: WH1601A-NBG-ETV#

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    Prezzo
    €8,70
    €7,80

    Per quantità maggiori di 9pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €8,70 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

    This model no. WH1601A Character LCD Display is made of 16 x 1 dots matrix. This display 16x1 character model is built-in ST7066 or equivalent which default interface is 6800 4/8-bit parallel. It’s also available in SPI and I2C interface by using RW1063 controller IC.  The LCD panels are available in STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

    There are three interface options for WH1601A series, details as below:
    ►WH1601A : 6800 interface (ST7066 IC)
    ►WH1601A1 : SPI interface (RW1063 IC)
    ►WH1601A2 : I2C interface (RW1063 IC)

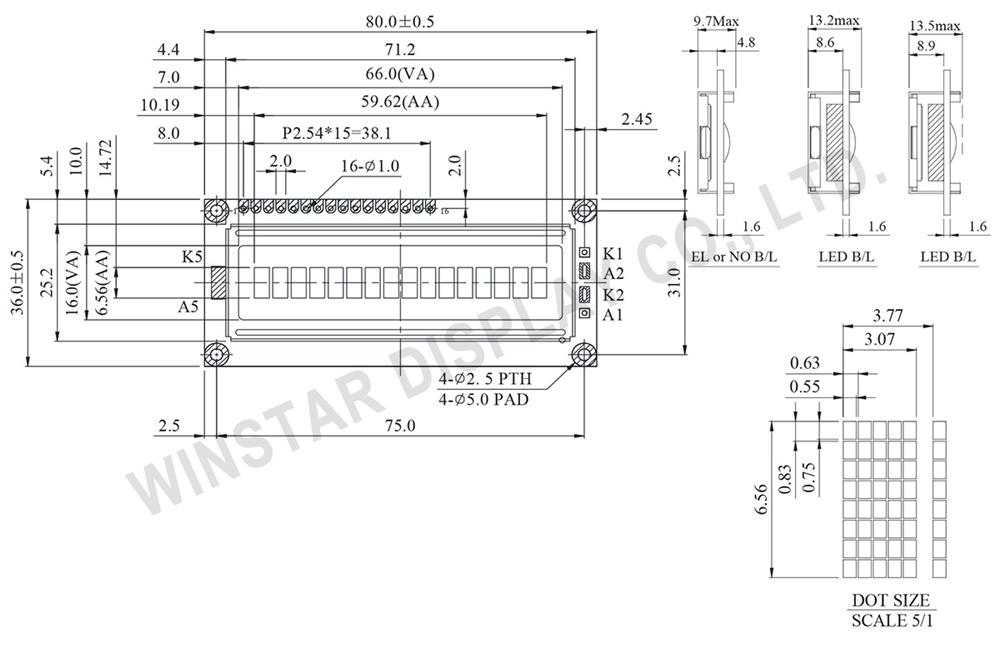

    DRAWING

    Winstar Character LCD Display 16x1, LCD 16x1, 16x1 LCD Display - WH1601A

    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 RS Data/ Instruction select signal
    5 R/W Read/Write select signal
    6 E Enable signal
    7~14 DB0~DB7 Data bus line
    15 A Power supply for B/L +
    16 K Power supply for B/L -

    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 80.0 × 36.0 mm
    Viewing Area 66.0 × 16.0 mm
    Mounting Hole 75.0 × 31.0 mm
    Character Size 3.07 × 6.56 mm

    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 4.35 V

    Display Character Address Code

    Display Position12345678910111213141516
    DD RAM Address 00 01           07 40 41           47
    Specifiche di prodotto
    Size 2.4"
    Resolution 16x1
    Active Area (mm) 59.62x6.56
    Dot Size 0.55x0.75
    B/L color, LCD type Without B/L, TN gray pos
    Power supply 3V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
