    WH0802A1-YYH-CT#000

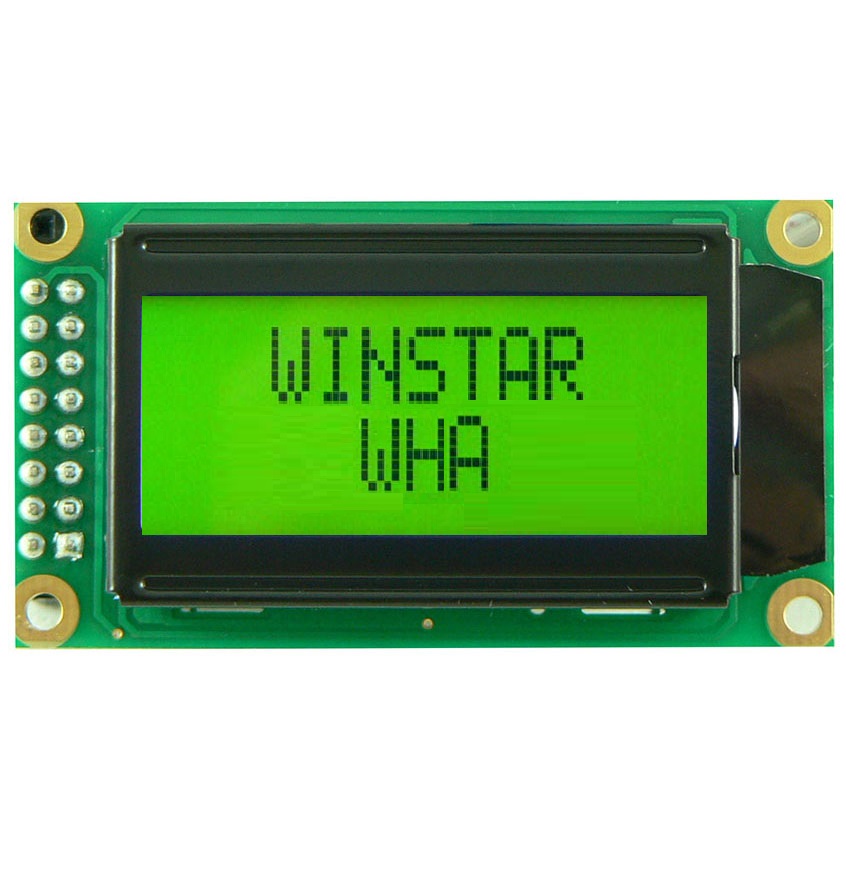

    Character LCD 1.2" 8x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Cyr, 6 O'clock, Narrow Backlight
    Brand: Winstar
    Cod.: WH0802A1-YYH-CT#000

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    Prezzo
    €9,50
    €8,50

    Per quantità maggiori di 9pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €9,50 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    Specifiche di prodotto
    Size 1.2"
    Resolution 8x2
    Active Area (mm) 27.81x11.50
    Dot Size 0.56x0.66
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
