WH0802A1-PLL-JWVE#

Character LCD 1.2" 8x2, B/L blue, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

DESCRIPTION

The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.

Industrial: Automotive application, Digital meter, UPS
Medical: medical device & medical equipment
Home appliance: audio, coffee machine, microwave oven
Automobile: dashboard, car audio

There are three interface options for VATN WH0802A1 series, details as below:

VATN WH0802A1: Parallel interface (RW1063 IC)
VATN WH0802A2: SPI interface (RW1063 IC)
VATN WH0802A3: I2C interface (RW1063 IC)

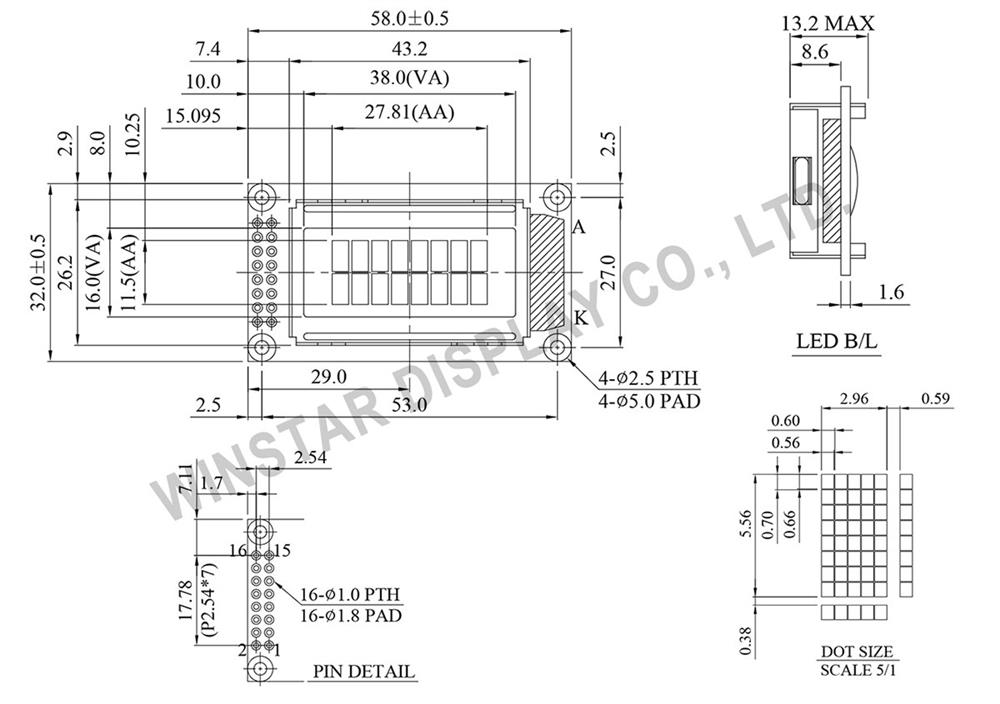

DRAWING

SLL 8x2 VATN Display with White LED Backlight

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	NC	No connection
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	A	Power supply for B/L +
16	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	58.0 × 32.0	mm
Viewing Area	38.0 × 16.0	mm
Mounting Hole	53.0 × 27.0	mm
Character Size	2.96 × 5.56	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	---	V

Display Character Address Code

Display position	1	2	3	4	5	6	7	8
DD RAM Address	00	01						07
DD RAM Address	40	41						47

SKU: WH0802A1-PLL-JWVE#

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

25+

Prezzo

€8,90

€6,50

€6,30

€6,10

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005
