    WG14432D5-TMI-V#T

    Graphic LCD 2.4" 144x32, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, 6 O'clock, VNEG
    Brand: Winstar
    Cod.: WG14432D5-TMI-V#T

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €19,50
    €17,50
    €16,50
    €16,10

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €19,50 IVA esclusa
    i h

    DESCRIPTION

    WG14432D is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432D is having the same mechanical size as Character WH1602D.  This WG14432D module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

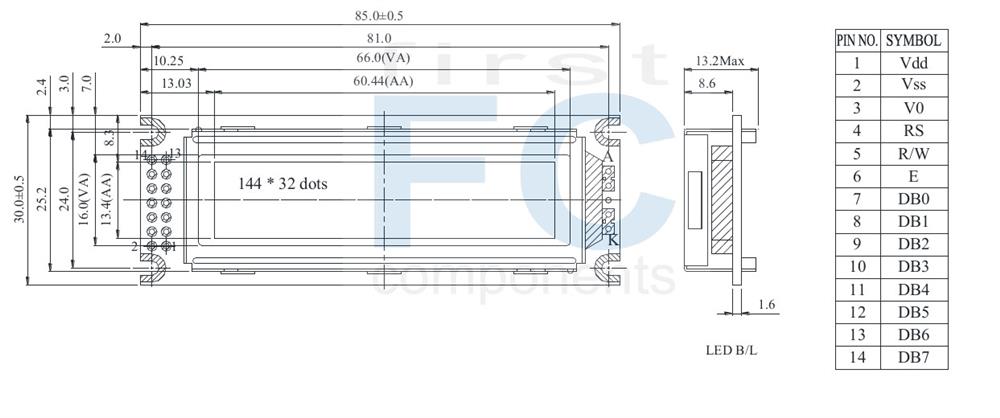

    DRAWING




    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VDD Power supply for logic
    2 VSS Ground
    3 VO Contrast Adjustment
    4 RS Data/ Instruction select signal
    5 R/W Read/Write select signal
    6 E Enable signal
    7~14 DB0~DB7 Data bus line



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 85.0 × 30.0 mm
    Viewing Area 66.0 × 16.0 mm
    Mounting Hole 81.0 × 25.2 mm
    Dot Pitch 0.42 × 0.42 mm
    Dot Size 0.38 × 0.38 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 4.40 V


    Specifiche di prodotto
    Size 2.4"
    Resolution 144x32
    Active Area (mm) 60.44x13.44
    Dot Size 0.38x0.38
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800/SPI
    Display IC ST7920
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 14
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
