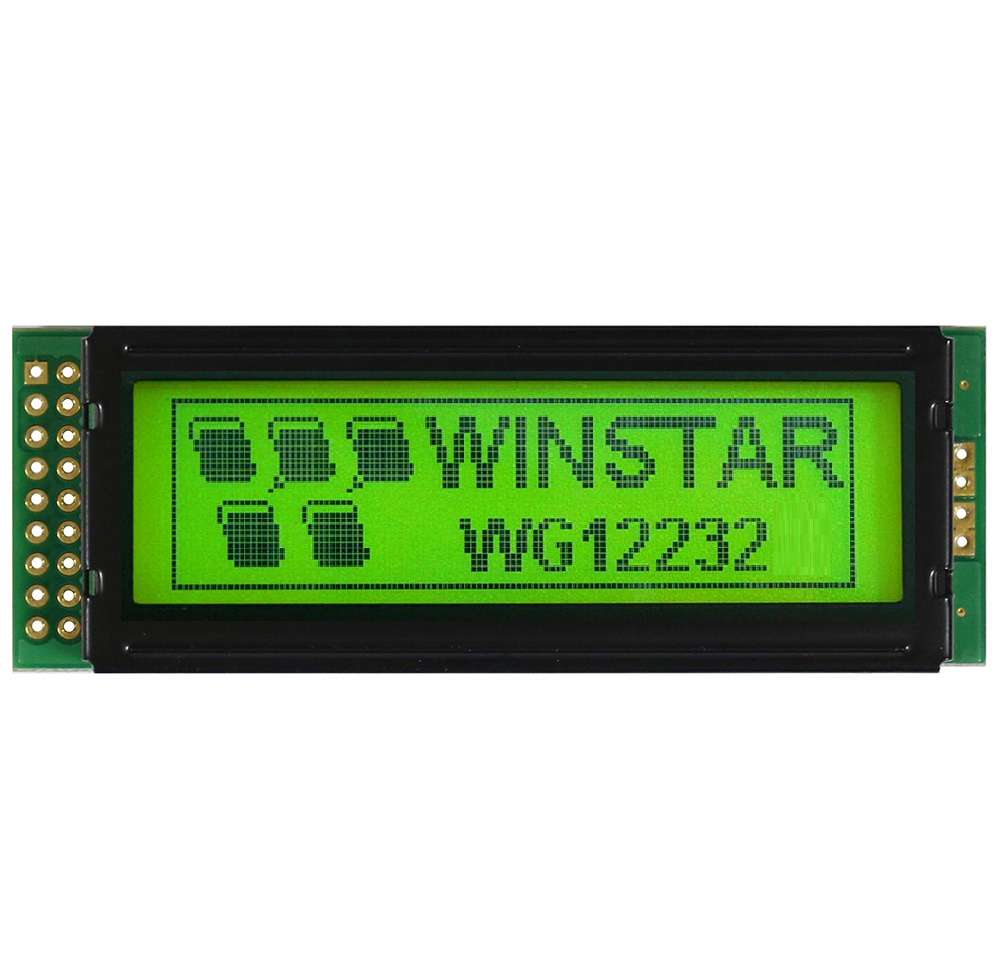

    WG12232O-YYH-NE#J

    Graphic LCD 2.2" 122x32, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, No VNEG (EDGE B/L), IC AiP31520
    Brand: Winstar
    Cod.: WG12232O-YYH-NE#J

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €14,60
    €13,10
    €12,30
    €12,10

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €14,60 IVA esclusa
    i h

    DESCRIPTION



    WG12232O is a monochrome 122x32 graphic 2.2” LCD display module.  This 122x32 graphic LCD display is built in with AiP31520 controller IC which supports 6800 8-bit parallel interface.  This module is 5V power supply, also negative voltage 3V optional.  Please note WG12232O is white LED backlight available only.  If you need other color LED, please contact with us.


    DRAWING

    Winstar WG12232O 122x32 Graphic Displays



    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 Vdd Power supply for logic
    3 VO Contrast Adjustment
    4 A0 Data/ Instruction select signal
    5 E1 Enable signal
    6 E2 Enable signal
    7 NC/CL No connection / External clock 2KHz
    8 NC/E No connection / Enable signal
    9 R/W Read/Write select signal
    10~17 DB0~DB7 Data bus line
    18 /RST Controller reset signal, Active Low



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 77.8 × 27.2 mm
    Viewing Area 60.0 × 18.0 mm
    Dot Pitch 0.44 × 0.49 mm
    Dot Size 0.40 × 0.45 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 4.45 V


    Specifiche di prodotto
    Size 2.2"
    Resolution 122x32
    Active Area (mm) 53.64x15.64
    Dot Size 0.40x0.45
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 6800
    Display IC AiP31520
    Constructive Structure COB
    View Angle 6H
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 18
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
