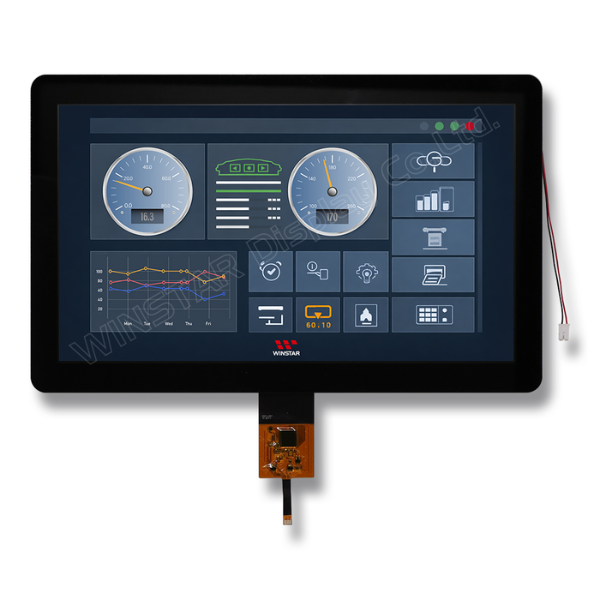

    WFN1330EA2#0SP8-FC

    TFT 13.3" 1920x1080 LCD Panel, Interface eDP, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC)
    Brand: Winstar
    Cod.: WFN1330EA2#0SP8-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €182,50
    €164,20
    €154,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €182,50 IVA esclusa
    i h

    DESCRIPTION

    The WFN1330EA2#0SP8-FC 13.3-inch Full HD IPS TFT LCD module features a LED backlight with a typical luminance of 800~850 cd/m². It has a normally black, transmissive IPS TFT panel with a 1920×1080 resolution and wide 85° viewing angles in all directions.

    The display uses an eDP interface for high-speed, low-noise signal transmission. It is driven by the TFT driver IC TC2055D and operates with a 3.3V logic power supply, with defined operating and LED driving conditions to support reliable electrical integration.

    The module integrates a projected capacitive touch panel (PCAP) with up to 10-point multi-touch detection, driven by the ILI2511 controller or equivalent. Touch communication is supported via USB interface, with I²C available for system flexibility.

    The module supports an operating temperature range of –20°C to +70°C and uses an LED backlight rated for up to 50,000 hours. Detailed pin definitions for LCM, backlight, and CTP interfaces simplify integration.

    This module is suitable for industrial control systems, electrical control panels, HVAC displays, and other industrial HMI applications.

    If a touch panel and high brightness are not required, please consider the WFN1330EA2#0P0-FC model.

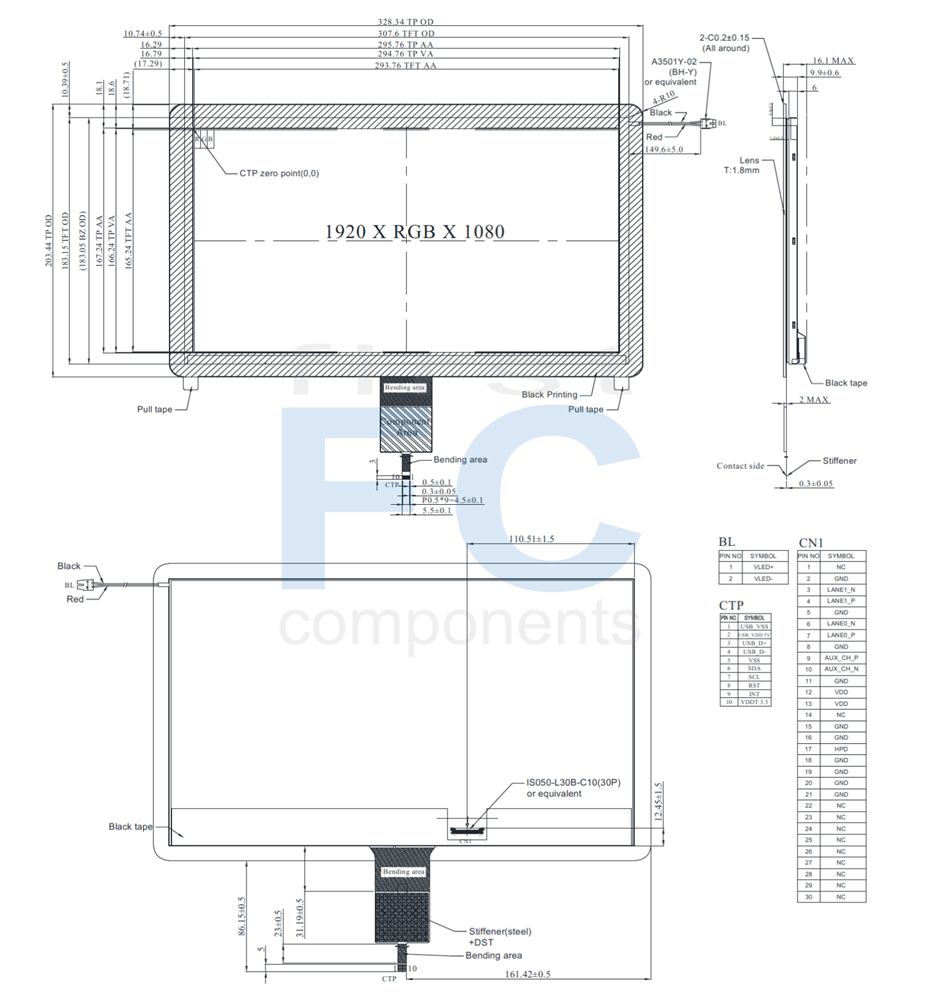

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 13.3 inch
    Dot Matrix 1920 x RGB x 1080 dots
    Module dimension 328.34 x 203.44 x 16.1 mm
    Active area 293.76 x 165.24 mm
    Pixel Pitch 0.153 X 0.153 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 85/85/85/85
    TFT Interface eDP
    Backlight Type LED ,Normally White
    CTP IC ILI2511 or equivalent
    CTP Interface USB (I2C available)
    CTP FW Version 0x06.0x00.0x00.0x00. 0x00.0x00.0x00.0x00
    CTP Resolution 16384*16384
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operation Conditions

    ParameterSymbolValuesUnit
    Min.Typ.Max.
    Power supply input voltage VDD 3.0 3.3 3.6 V
    Power supply current IDD - 450 675 mA
    Supply CTP USB_VDD 5V 4.5 5.0 5.5 V
    I VDD 5V - 96 144 mA
    VDDT 3.3 3.0 3.3 3.6 V
    IDDT 3.3   93 140 mA


    LED driving conditions

    ParameterSymbolMin.Typ.Max.Unit
    LED current ILED - 700 - mA
    LED voltage VLED+ 16.2 18.0 19.8 V
    LED Life Time - 50,000 - - Hr



    Interface Pin Function

    1.LCM PIN Definition

    Pin NoSymbolFunction
    1 NC No Connection
    2 GND Power Ground
    3 LANE1-N Complement Signal Link Lane 1
    4 LANE1-P True Signal Line 1
    5 GND Power Ground
    6 LANE0-N Complement Signal Link Lane 0
    7 LANE0-P True Signal Line 0
    8 GND Power Ground
    9 AUX-CH-P True Signal Auxiliary Ch.
    10 AUX-CH-N Complement Signal Auxiliary Ch.
    11 GND Power Ground
    12 VDD LCD Logic and Driver Power  (3.3V)
    13 VDD LCD Logic and Driver Power  (3.3V)
    14 NC No Connection
    15 GND Power Ground
    16 GND Power Ground
    17 HPD Hot plug detect output
    18 GND Power Ground
    19 GND Power Ground
    20 GND Power Ground
    21 GND Power Ground
    22-30 NC No Connection


    2.Backlight Driving Part

    Pin No.SymbolDescription
    1 VLED+ Red, LED_ Anode
    2 VLED- Black, LED_ Cathode


    3.CTP PIN Definition

    Pin No.SymbolFunction
    1 USB_VSS System ground
    2 USB_VDD 5V Power supply
    3 USB_D+ Data +
    4 USB_D- Data -
    5 VSS System ground
    6 SDA I2C data input and output
    7 SCL I2C clock input
    8 RST External Reset, Low is active
    9 INT External interrupt to the host
    10 VDDT 3.3 Power supply

    Specifiche di prodotto
    Size 13.3"
    Resolution 1920x1080
    Active Area (mm) 293.76x165.24
    Color Full Color
    Display Interface eDP
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection eDP Connector
    Pin Nr. 30
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2511
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
