WFN0570PA2#0SP0-FC

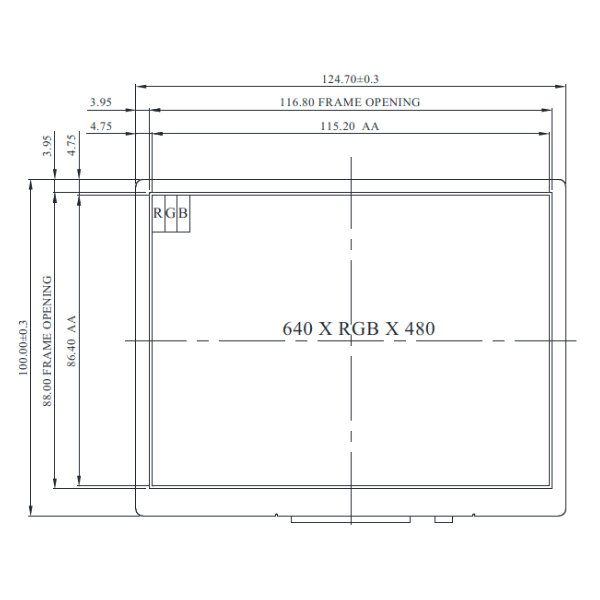

Immagine di WFN0570PA2#0SP0-FC Immagine di WFN0570PA2#0SP0-FC
TFT 5.7" 640x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), High Brightness 1250cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

WFN0570PA2#0SP0-FC is a color active matrix thin film transistor (FTF) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 5.7 inchdiagonally measured active display area with 640x480 (640 horizontal by 480 vertical pixel)resolution.

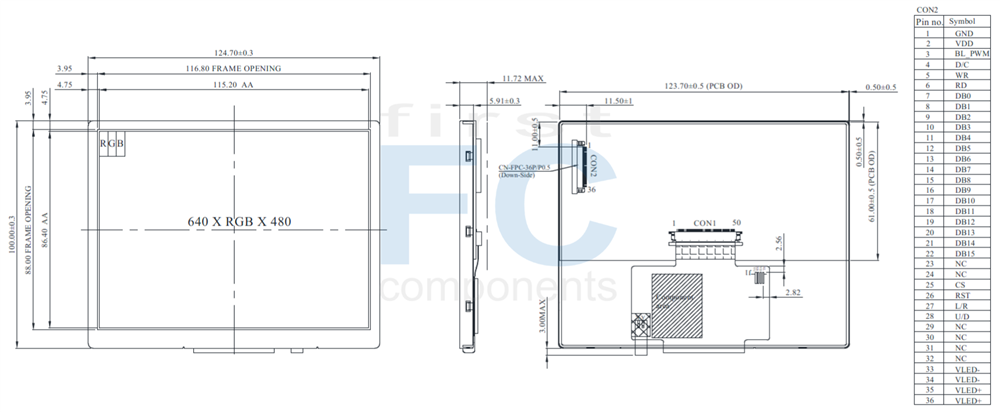

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 124.7 x 100 x 11.72 mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 89/89/89/89
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Backlight Type LED, Normally White
Touch Panel Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ParameterSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.1 3.2 3.3 V
Supply Current For LCM IDD － 60 90 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
Supply Voltage For LED Driver LVED 4.5 5.0 5.5 V
Supply Current For LED Driver ILED - 630 945 mA
PMW Control Level (PWM) High Level - 3.3 － V
Low Level - 0 - V
PwM Control Duty Ratio - 0 - 100 %
PWM Control Frequency - 12K 15K 30K Hz
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

PinSymbolFunction
1 GND System ground pin of the IC .Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_PWM Light Dimming Control (PWM) Input Voltage (High active)
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits Mode, this pin is NC)
16 DB9 Data bus (When select 8bits Mode, this pin is NC)
17 DB10 Data bus (When select 8bits Mode, this pin is NC)
18 DB11 Data bus (When select 8bits Mode, this pin is NC)
19 DB12 Data bus (When select 8bits Mode, this pin is NC)
20 DB13 Data bus (When select 8bits Mode, this pin is NC)
21 DB14 Data bus (When select 8bits Mode, this pin is NC)
22 DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect
33 VLED- Power for LED Driver IC(GND)
34 VLED+ Power for LED Driver IC(GND)
35 VLED+ Power for LED Driver IC(+5V)
36 VLED+ Power for LED Driver IC(+5V)
SKU: WFN0570PA2#0SP0-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€76,60
€68,90
€64,80

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€76,60 IVA esclusa

DESCRIPTION

WFN0570PA2#0SP0-FC is a color active matrix thin film transistor (FTF) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 5.7 inchdiagonally measured active display area with 640x480 (640 horizontal by 480 vertical pixel)resolution.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 124.7 x 100 x 11.72 mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 89/89/89/89
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Backlight Type LED, Normally White
Touch Panel Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ParameterSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.1 3.2 3.3 V
Supply Current For LCM IDD － 60 90 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
Supply Voltage For LED Driver LVED 4.5 5.0 5.5 V
Supply Current For LED Driver ILED - 630 945 mA
PMW Control Level (PWM) High Level - 3.3 － V
Low Level - 0 - V
PwM Control Duty Ratio - 0 - 100 %
PWM Control Frequency - 12K 15K 30K Hz
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

PinSymbolFunction
1 GND System ground pin of the IC .Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_PWM Light Dimming Control (PWM) Input Voltage (High active)
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits Mode, this pin is NC)
16 DB9 Data bus (When select 8bits Mode, this pin is NC)
17 DB10 Data bus (When select 8bits Mode, this pin is NC)
18 DB11 Data bus (When select 8bits Mode, this pin is NC)
19 DB12 Data bus (When select 8bits Mode, this pin is NC)
20 DB13 Data bus (When select 8bits Mode, this pin is NC)
21 DB14 Data bus (When select 8bits Mode, this pin is NC)
22 DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect
33 VLED- Power for LED Driver IC(GND)
34 VLED+ Power for LED Driver IC(GND)
35 VLED+ Power for LED Driver IC(+5V)
36 VLED+ Power for LED Driver IC(+5V)
Specifiche di prodotto
Brand Winstar
Size 5.7"
Risoluzione 640x480
Area Attiva (mm) 115.20x86.40
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC SSD1963
Angolo Visione IPS
Sunlight Readable Super High >1200cd/m²
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 5.7"
Risoluzione 640x480
Area Attiva (mm) 115.20x86.40
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC SSD1963
Angolo Visione IPS
Sunlight Readable Super High >1200cd/m²
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
