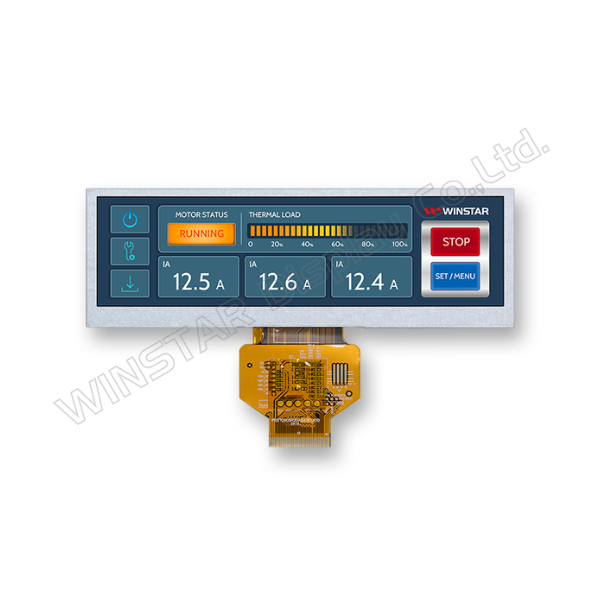

WFN0520DA2#0SP0-FC

TFT 5.2" 480x128, Bar Type, Interface RGB, High Brightness 1100cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

WFN0520DA2#0SP0-FC is a 5.2-inch high-brightness bar type TFT LCD featuring an IPS panel and 480 x 128 resolution. With a brightness of 1100 cd/m² and wide viewing angles of 85/85/85/85 degrees, the display is designed for wide-format HMI applications that require high brightness and wide viewing angles. This model is supplied without a touch panel, making it suitable for applications where touch input is not required.

The module measures 140.4 x 49.87 x 3.0 mm and provides an active area of 132.48 x 35.328 mm. It features the ILI6485D TFT driver IC and supports a 24-bit RGB interface. The module operates from a typical 3.3V supply, with an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

Developed as an IPS-based option to the WF52A TN series, WFN0520DA2#0SP0-FC provides a larger active area while retaining the 480 x 128 wide-format resolution. Its bar type format is well suited for audio mixing consoles, industrial equipment, server systems, control panels, and other wide-format HMI applications. The WFN0520A2 series is also available in a 500 cd/m² non-touch configuration and an 880 cd/m² PCAP touch configuration to support different application requirements.

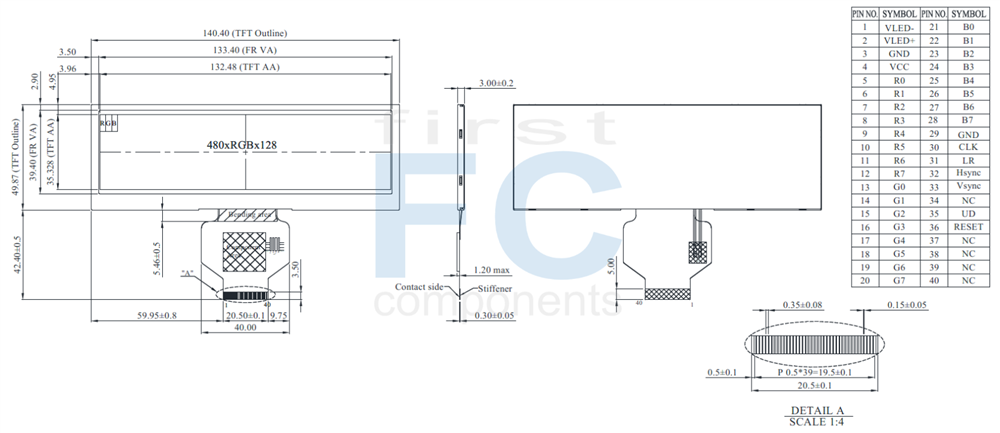

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 x RGB x 128	dots
Module dimension	140.4 x 49.87 x 3.0	mm
Active area	132.48 x 35.328	mm
Pixel pitch	0.276 x 0.276	mm
LCD type	TFT, Normally black, Transmissive
View Angle	85/85/85/85
Aspect Ratio	Bar Type
Backlight Type	LED, Normally White
TFT Driver IC	ILI6485D or Equal
TFT Interface	RGB 24bit
Touch Panel	Without Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	3.0	3.3	3.6	V
Supply Current For LCM	ICC	－	17.0	26.0	mA

Interface

LCM PIN Definition

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock (DCLK)
31	LR	Right /Left selection; Default R/L is Pull High
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	NC	No connection
35	UD	Up/down selection; Default U/D is Pull High
36	RESET	Reset signal
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

SKU: WFN0520DA2#0SP0-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

Prezzo

€48,60

€43,80

€41,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€48,60 IVA esclusa
