WFN0500DA4#0PW2-FC

Name: WFN0500DA4#0PW2-FC
SKU: WFN0500DA4#0PW2-FC
Price: 57.60 EUR
Availability: InStock

Si tratta dela prima recensione per questo prodotto

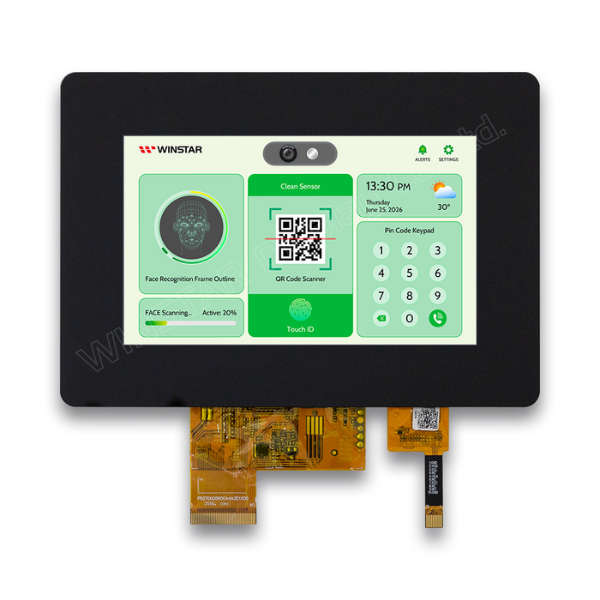

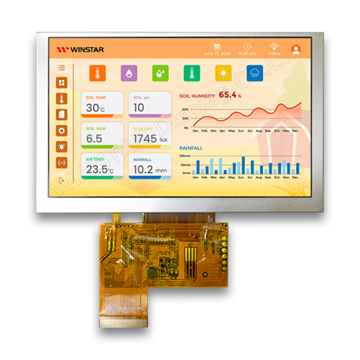

TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)

Brand: Winstar

Cod.: WFN0500DA4#0PW2-FC

Kit accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€57,60

€51,80

€48,70

Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

Disponibilità: Disponibile

€57,60 IVA esclusa

Quantità:

i h

Overview
Specifiche
Download
Contattaci

DESCRIPTION

WFN0500DA4#0PW2-FC is a 5-inch IPS TFT LCD display module featuring an 800x480 pixel resolution, a 24-bit RGB interface, and a projected capacitive touch panel with 5-point touch support. The display is driven by the FL58202DA driver IC, while the PCAP uses the GT911 controller with an I2C interface.

The module measures 147.0 x 104.0 x 4.88 mm, with an active area of 108.0 x 64.8 mm. It features a Normally Black, transmissive TFT panel with an IPS wide viewing angle.

With a typical brightness of 400 cd/m² and an operating temperature range of -30℃ to +80℃, this TFT LCD display is suitable for industrial control systems, access control systems, medical equipment, smart home devices, handheld devices, and other embedded HMI applications.

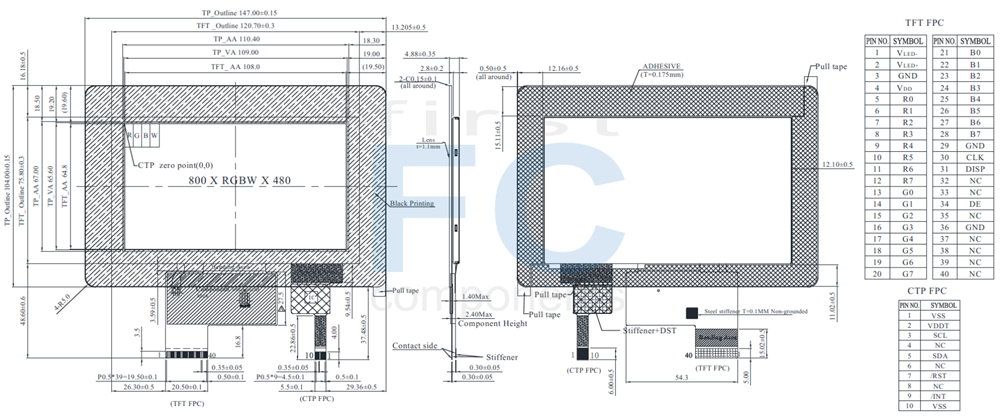

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800 × 3(RGB) × 480	dots
Module dimension	147.00 (W) ×104.00 (H) × 4.88	mm
Active area	108(W) × 64.8 (H)	mm
Dot pitch	0.135(W) × 0.135(H)	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85
Aspect Ratio	5:3
Driver　IC	FL58202DA or equivalent
Interface	24 bit R.G.B
Backlight Type	LED, Normally White
CTP IC	GT911 or equivalent
CTP Interface	I2C
CTP FW Version	65
CTP Resolution	800*480
Touch Panel	Without Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	VDD	3.0	3.3	3.6	V
Current for Driver(Black)	IDD	－	82	123	mA
Input logic high voltage	VIH	0.7 VDD	－	VDD	V
Input logic low voltage	VIL	0	－	0.3 VDD
Supply CTP	VDDT	2.8	－	3.3	V
Supply CTP	IDDT	－	14.0	21.0	mA

Backlight Driving Conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Voltage for LED backlight	VLED	12.5	14.0	15.5	V
Current for LED backlight	ILED	－	30	－	mA
LED life time	－	50,000	－	－	Hr

Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin No	Symbol	Function
1	VLED-	Power for LED backlight (Cathode)
2	VLED+	Power for LED backlight (Anode)
3	GND	Power Ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data(MSB)
13	G0	Green data(LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data(MSB)
21	B0	Blue data(LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data(MSB)
29	GND	Power Ground
30	CLK	Sample clock (DCLK)
31	DISP	Display on/off
32	NC	No connection
33	NC	No connection
34	DE	Data input enable
35	NC	No connection
36	GND	Power Ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

CTP PIN Definition

Pin No	Symbol	Function
1	VSS	Ground for analog circuit
2	VDDT	Power Supply
3	SCL	I2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

Specifiche di prodotto

Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Frame	No
Touch Panel	Capacitive
O. Temperature (°C)	-30~80
Data Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Touch Panel IC Controller	GT911
Preferred - Not Preferred	Preferred
