WFN0400MA2#0P0-FC

TFT 4" 720x720, Round LCD Panel, Interface MIPI IC FL7703, Wide View Angle (IPS), 350 cd/m2, Standard Temp., No touch

DESCRIPTION

The WFN0400MA2#0P0-FC 720x720 TFT LCD Display Module is a high-performance display solution designed for industrial applications, smart home systems, and various other embedded systems. This 4-inch display features a 720x720 resolution and a circular design, ensuring sharp, clear visuals with exceptional detail, making it an ideal choice for applications that require high-definition display performance.

With IPS technology, the module offers an 85-degree wide viewing angle, providing accurate and vibrant colors from virtually any perspective. The 720x720 display ensures that content is rendered with high clarity, while the high contrast ratio of 1200:1 enhances the depth and richness of the image. The anti-glare surface further reduces reflections, improving visibility and user experience.

Offering a brightness of 350 cd/m², this display module provides consistent, bright visuals in a variety of environments. The MIPI 4-Lane interface ensures fast and reliable data transmission, and the digital supply voltage range of 1.65V to 3.3V (with a typical value of 1.8V) ensures compatibility with a wide range of devices.

Whether used in smart home products, industrial control systems, or other applications, the WFN0400MA2#0P0-FC provides reliable, high-quality display performance that enhances the functionality and appeal of your devices.

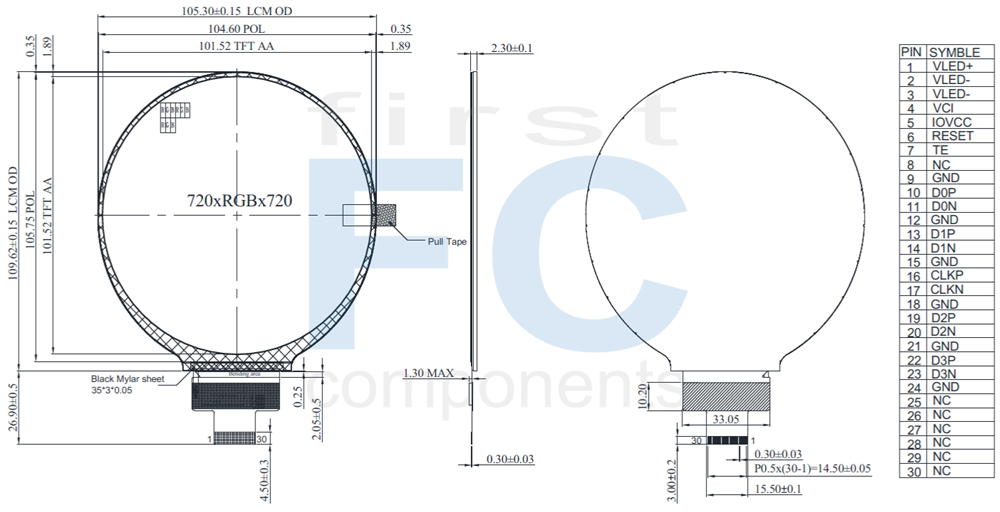

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 4.0 inch
Dot Matrix 720 x RGB x 720 (TFT) dots
Module dimension 105.3 x 109.62 x 2.3 mm
Active area 101.52 x 101.52 mm
Pixel pitch 0.141 x 0.141 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 4-Lanes MIPI
Backlight Type LED, Normally White
TFT Driver IC FL7703
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Digital supply Voltage IOVCC 1.65 1.8 3.3 V
Analog supply Voltage VCI 2.8 3.0 3.3 V
Input Signal Voltage Low
Level
VIL 0 - 0.3 x IOVCC V
High
Level
VIH 0.7 x IOVCC - IOVCC V
Current of digital supply voltage IIOVCC - 15 20 mA
Current of analog supply voltage IVCI - 35 50 mA



LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 40 45 mA
LED voltage VLED+   15.5 16.0 V
Backlight Power Consumption WBL - 600 720 mW
LED Life Time - 30,000 - - Hr



Interface

LCM PIN Definition

Pin NoSymbolDescription
1 VLED+ LED Anode
2 VLED- LED Cathode1
3 VLED- LED Cathode2
4 VCI Power Supply 2.8V
5 IOVCC LCD I/O power supply(1.8V)
6 RESET Reset pin
7 TE Tearing effect(1.8V)
8 NC No connection.
9 GND Ground
10 D0P MIPI DSI differential data pair (Data lane 0)
11 D0N MIPI DSI differential data pair (Data lane 0)
12 GND Ground
13 D1P MIPI DSI differential data pair (Data lane 1)
14 D1N MIPI DSI differential data pair (Data lane 1)
15 GND Ground
16 CLKP MIPI DSI differential clock pair
17 CLKN MIPI DSI differential clock pair
18 GND Ground
19 D2P MIPI DSI differential data pair (Data lane 2)
20 D2N MIPI DSI differential data pair (Data lane 2)
21 GND Ground
22 D3P MIPI DSI differential data pair (Data lane 3)
23 D3N MIPI DSI differential data pair (Data lane 3)
24 GND Ground
25-30 TP_INT No connectio

SKU: WFN0400MA2#0P0-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€49,80
€41,50
€37,00

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€49,80 IVA esclusa

DESCRIPTION

The WFN0400MA2#0P0-FC 720x720 TFT LCD Display Module is a high-performance display solution designed for industrial applications, smart home systems, and various other embedded systems. This 4-inch display features a 720x720 resolution and a circular design, ensuring sharp, clear visuals with exceptional detail, making it an ideal choice for applications that require high-definition display performance.

With IPS technology, the module offers an 85-degree wide viewing angle, providing accurate and vibrant colors from virtually any perspective. The 720x720 display ensures that content is rendered with high clarity, while the high contrast ratio of 1200:1 enhances the depth and richness of the image. The anti-glare surface further reduces reflections, improving visibility and user experience.

Offering a brightness of 350 cd/m², this display module provides consistent, bright visuals in a variety of environments. The MIPI 4-Lane interface ensures fast and reliable data transmission, and the digital supply voltage range of 1.65V to 3.3V (with a typical value of 1.8V) ensures compatibility with a wide range of devices.

Whether used in smart home products, industrial control systems, or other applications, the WFN0400MA2#0P0-FC provides reliable, high-quality display performance that enhances the functionality and appeal of your devices.

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 4.0 inch
Dot Matrix 720 x RGB x 720 (TFT) dots
Module dimension 105.3 x 109.62 x 2.3 mm
Active area 101.52 x 101.52 mm
Pixel pitch 0.141 x 0.141 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 4-Lanes MIPI
Backlight Type LED, Normally White
TFT Driver IC FL7703
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Digital supply Voltage IOVCC 1.65 1.8 3.3 V
Analog supply Voltage VCI 2.8 3.0 3.3 V
Input Signal Voltage Low
Level
VIL 0 - 0.3 x IOVCC V
High
Level
VIH 0.7 x IOVCC - IOVCC V
Current of digital supply voltage IIOVCC - 15 20 mA
Current of analog supply voltage IVCI - 35 50 mA



LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 40 45 mA
LED voltage VLED+   15.5 16.0 V
Backlight Power Consumption WBL - 600 720 mW
LED Life Time - 30,000 - - Hr



Interface

LCM PIN Definition

Pin NoSymbolDescription
1 VLED+ LED Anode
2 VLED- LED Cathode1
3 VLED- LED Cathode2
4 VCI Power Supply 2.8V
5 IOVCC LCD I/O power supply(1.8V)
6 RESET Reset pin
7 TE Tearing effect(1.8V)
8 NC No connection.
9 GND Ground
10 D0P MIPI DSI differential data pair (Data lane 0)
11 D0N MIPI DSI differential data pair (Data lane 0)
12 GND Ground
13 D1P MIPI DSI differential data pair (Data lane 1)
14 D1N MIPI DSI differential data pair (Data lane 1)
15 GND Ground
16 CLKP MIPI DSI differential clock pair
17 CLKN MIPI DSI differential clock pair
18 GND Ground
19 D2P MIPI DSI differential data pair (Data lane 2)
20 D2N MIPI DSI differential data pair (Data lane 2)
21 GND Ground
22 D3P MIPI DSI differential data pair (Data lane 3)
23 D3N MIPI DSI differential data pair (Data lane 3)
24 GND Ground
25-30 TP_INT No connectio

Specifiche di prodotto
Brand Winstar
Size 4"
Risoluzione 720x720
Area Attiva (mm) 101.52x101.52
Colore Full Color
Interfaccia Display MIPI
Display IC FL7703
Angolo Visione IPS
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 30
Passo Pin 0.5mm
