WF80-8001280GM#0SP3-FC

TFT 8" 800x1280 LCD Panel, Interface MIPI (4-lanes) IC ILI9881C, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

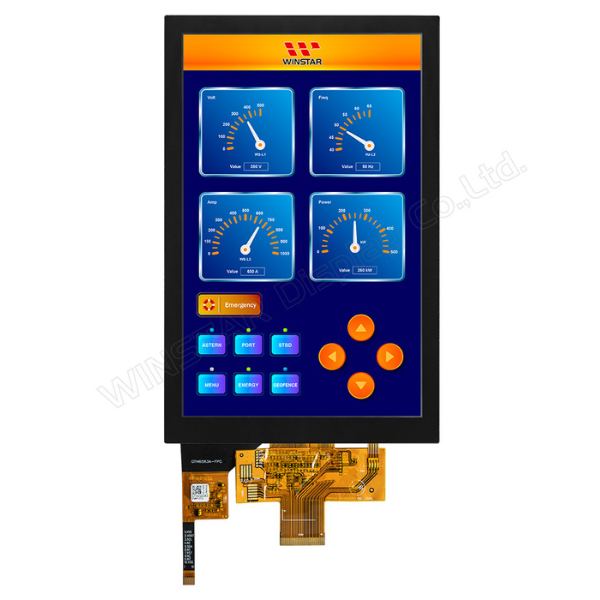

The WF80-8001280GM#0SP3-FC is an 8-inch touchscreen display utilizing color TFT technology. With a resolution of 800×1280 pixels, a high brightness of 900 nits (typical value), and a contrast ratio of 1500:1 (typical value), this TFT module employs the ILI9881C driver IC and supports the 4-Lanes MIPI DSI interface. It offers advantages such as low power consumption, a high transmission rate, support for multiple data-encoding formats, and low noise and interference. The module is equipped with a projected capacitive touch panel (PCAP) incorporating the ILI2130 driver IC, supporting I2C interfaces, and providing a 5-point touch function.

Utilizing IPS panel technology, the WF80-8001280GM#0SP3-FC module ensures relatively wide viewing angles of left: 85/right: 85/up: 85/down: 85 degrees (typical value). It features a glare surface with an aspect ratio of 10:16.

The analog circuit of the power supply operates within the range of 3.0V~3.6V, with a typical value of 3.3V. Operating temperatures range from -20℃ to +70℃, and storage temperatures range from -30℃ to +80℃. The WF80-8001280GM#0SP3-FC 8-inch touchscreen display is versatile, finding wide applications, especially in vertical screen orientations suitable for vending machines, ship control panels, home surveillance systems, and smart door locks.

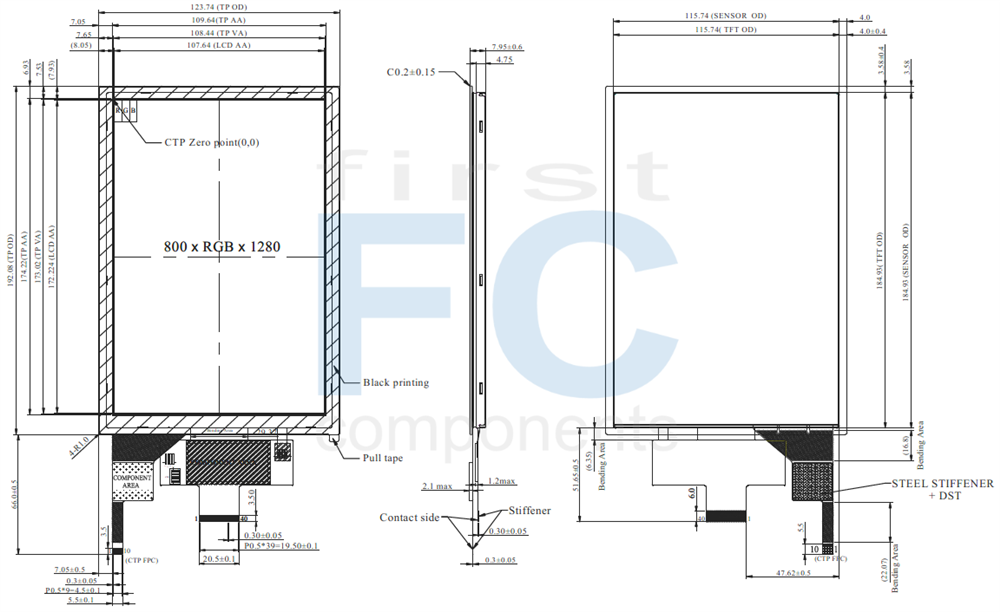

DRAWING

SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin	Symbol	Function
1-9	NC	No connection
10-11	VCI	Power supply for analog circuits. Connect to an external power supply of 3.0V to 3.6V
12-13	NC	No connection
14	RESET	The external reset input (RESX) Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. Fix to IOVCC level when not in use.
15	TE	Tearing effect output pin. Leave the pin open when not in use.
16	NC	No connection (LED PWM)
17-18	GND	Power ground
19-20	IOVCC	Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
21	GND	Power ground
22	D3P	MIPI DSI differential data pair. (Data lane 3)
23	D3N	MIPI DSI differential data pair. (Data lane 3)
24	GND	Power ground
25	D2P	MIPI DSI differential data pair. (Data lane 2)
26	D2N	MIPI DSI differential data pair. (Data lane 2)
27	GND	Power ground
28	CLKP	MIPI DSI differential clock pair
29	CLKN	MIPI DSI differential clock pair
30	GND	Power ground
31	D1P	MIPI DSI differential data pair. (Data lane 1)
32	D1N	MIPI DSI differential data pair. (Data lane 1)
33	GND	Power ground
34	D0P	MIPI DSI differential data pair. (Data lane 0)
35	D0N	MIPI DSI differential data pair. (Data lane 0)
36	GND	Power ground
37	VLED1+	Power for LED1 backlight anode
38	VLED2+	Power for LED2 backlight anode
39	VLED1-	Power for LED1 backlight cathode
40	VLED2-	Power for LED2 backlight cathode

PCAP PIN Definition

Pin	Symbol	Function
1	VSS	Ground for analog circuit
2	VDDT	Power Supply : +3.3V
3	SCL	I2C clock input
4	NC	No connection
5	SDA	I2C data input and output
6	NC	No connection
7	/RST	External Reset, Low is active
8	NC	No connection
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

General Specifications

Item	Dimension	Unit
Size	8.0	inch
Dot Matrix	800 × 3(RGB) ×1280	dots
Module dimension	123.74 × 192.08 × 7.95	mm
Active area	107.64 × 172.224	mm
Pixel pitch	0.13455 × 0.13455	mm
LCD type	TFT, Normally Black, Transmissive
Viewing angle	85/85/85/85
TFT Drive IC	ILI9881C or Equivalent
TFT Interface	4-Lanes MIPI
Aspect Ratio	10:16
Backlight Type	LED, Normally White
PCAP FW Version	0x07.0x00.0x00.0x00.0x01.0x00.0x83.0x65
PCAP interface	I2C
PCAP IC	ILI2130 or equivalent
PCAP Resolution	16384 * 16384
Touch Panel	Projected Capacitive Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power supply for analog circuit	VCI	3.0	3.3	3.6	V
Power supply for logic circuit	IOVCC	1.65	1.8	3.6	V
Current for Driver	IVCI	-	45	70	mA
Current for Driver	I IOVCC	-	20	30	mA
Supply PCAP	+3.3	3.15	3.3	3.45	V
Supply PCAP	+3.3V	-	70	100	mA
