WF70GTIFGDHN0#

TFT 7" 800x480, HDMI Interface, IC TFP401, 460cd/m², No touch (no connectors)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



7 inch medium-sized for HDMI signal TFT-LCD display, made of resolution 800x480 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface.

You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT display is 800x480 resolutions, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk. Please note, this part no. does not include any HDMI connector or USB cable.




DRAWING



SPECIFICATIONS



Interface

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection


HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
Touchscreen No
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
SKU: WF70-800480GH#000-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€70,30
€63,30
€53,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€70,30 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



7 inch medium-sized for HDMI signal TFT-LCD display, made of resolution 800x480 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface.

You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT display is 800x480 resolutions, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk. Please note, this part no. does not include any HDMI connector or USB cable.




DRAWING



SPECIFICATIONS



Interface

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection


HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
Touchscreen No
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 154.08x85.92
Colore Full Color
Interfaccia Display HDMI
Angolo Visione TN
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 154.08x85.92
Colore Full Color
Interfaccia Display HDMI
Angolo Visione TN
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector
Preferred - Not Preferred Not Preferred
Prodotti correlati
Immagine di WWHDMI-00#

WWHDMI-00#

HDMI Connector for TFT module and Raspberry Pi 3B+ Version or below Version
Da €2,60 IVA esclusa
Immagine di CABLE_HDMI

CABLE_HDMI

HDMI Cable V1.4 High speed, with Ethernet, Male-male connectors, 1.5 meters
€18,10 IVA esclusa
Immagine di POWER_ADAPT_5V/2A

POWER_ADAPT_5V/2A

Power Adapter Input 100/240VAC Output Jack 5V 2A (OTP***195)
€8,00 IVA esclusa
Immagine di TST0007R0B4111XXXX00

TST0007R0B4111XXXX00

Capacitive (GG) Touch panel 7", O.D. 202.00x 135.50mm, USB-I2C interface (ILI2511 IC), Glass-Glass structure, Black free board (suitable for A2/A7/A8/B7/G/Q/P/Y/M families)
Da €52,80 IVA esclusa

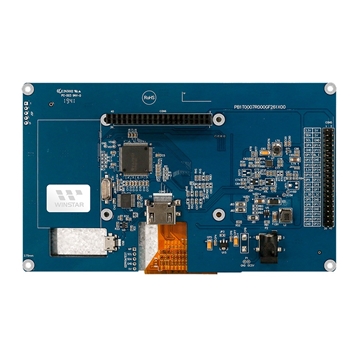

Immagine di WF70-800480A2H#V00-FC
