WF70-800480A6D#0F3-FC

TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 320cd/m², Wide view angle (O-Film) Square pixels, Capacitive touch panel (Replacement Winstar family WF70H)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

Standard TFT 7" compatible with the existing WF70H. The WF70A and WF70H have the same outline dimension, AA size, interface and pin assignment; but which two models have a little difference at back side on appearance. This model is a 7 inch TFT LCD Panel Module with projected capacitive touch screen. The disiplay has the outline dimension of 165.05 x 104.87 mm and active area size of 152.4 x 91.44 mm.

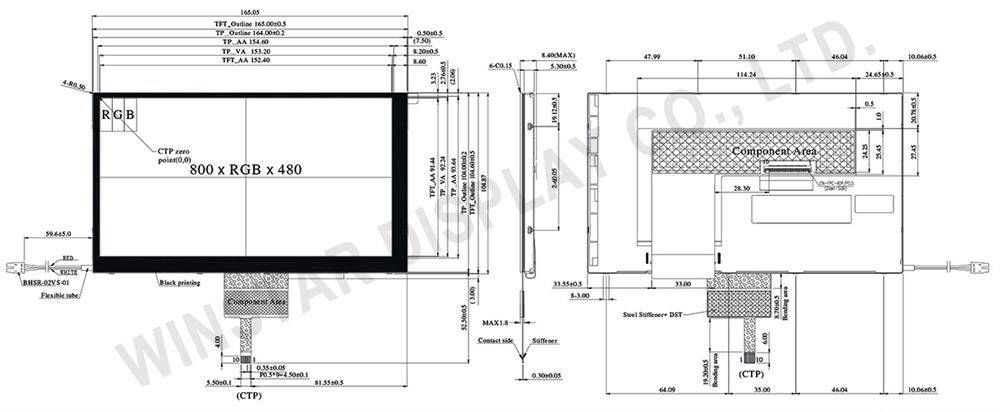

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 Vcc Power Supply for Digital Circuit
5 Vcc Power Supply for Digital Circuit
6 Vcc Power Supply for Digital Circuit
7 Vcc Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue Data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0(LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0(LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals ; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 165.05(W) × 104.87 (H) × 8.4(D) mm
Active area 152.4 × 91.44 mm
Dot pitch 0.1905 × 0.1905 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Drive IC HX8262+HX8678 or Equivalent
TFT Interface 18-bit RGB
Aspect Ratio 16:9
PCAP IC ILI2130 or Equivalent
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x70.0x44.0x0A.0x02
PCAP Resolution 16384*16384
Backlight Type LED, Normally White
Touch Screen Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

Recommended Operation condition (GND=0V，Ta=25℃)

ItemSymbolMinTypMaxUnit
Power Supply Voltage Vcc 3.0 3.3 3.6 V
Power Supply Current Icc   200 260 mA
Input logic Voltage High Level VIH 0.7Vcc - Vcc V
Low Level VIL 0 - 0.3Vcc
Supply PCAP VDDT 3.0 3.3 3.6 V
ICTP － 62 93 mA


SKU: WF70-800480A6D#0F3-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€103,70
€98,60
€83,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€103,70 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

Standard TFT 7" compatible with the existing WF70H. The WF70A and WF70H have the same outline dimension, AA size, interface and pin assignment; but which two models have a little difference at back side on appearance. This model is a 7 inch TFT LCD Panel Module with projected capacitive touch screen. The disiplay has the outline dimension of 165.05 x 104.87 mm and active area size of 152.4 x 91.44 mm.


DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND Power Ground
2 GND Power Ground
3 NC Not Connect
4 Vcc Power Supply for Digital Circuit
5 Vcc Power Supply for Digital Circuit
6 Vcc Power Supply for Digital Circuit
7 Vcc Power Supply for Digital Circuit
8 NC Not Connect
9 DE Data Enable
10 GND Power Ground
11 GND Power Ground
12 GND Power Ground
13 B5 Blue Data 5 (MSB)
14 B4 Blue Data 4
15 B3 Blue Data 3
16 GND Power Ground
17 B2 Blue Data 2
18 B1 Blue Data 1
19 B0 Blue Data 0 (LSB)
20 GND Power Ground
21 G5 Green Data 5 (MSB)
22 G4 Green Data 4
23 G3 Green Data 3
24 GND Power Ground
25 G2 Green Data 2
26 G1 Green Data 1
27 G0 Green Data 0(LSB)
28 GND Power Ground
29 R5 Red Data 5 (MSB)
30 R4 Red Data 4
31 R3 Red Data 3
32 GND Power Ground
33 R2 Red Data 2
34 R1 Red Data 1
35 R0 Red Data 0(LSB)
36 GND Power Ground
37 GND Power Ground
38 DCLK Clock Signals ; Latch Data at the Falling Edge (CLK)
39 GND Power Ground
40 GND Power Ground



Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 165.05(W) × 104.87 (H) × 8.4(D) mm
Active area 152.4 × 91.44 mm
Dot pitch 0.1905 × 0.1905 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Drive IC HX8262+HX8678 or Equivalent
TFT Interface 18-bit RGB
Aspect Ratio 16:9
PCAP IC ILI2130 or Equivalent
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x70.0x44.0x0A.0x02
PCAP Resolution 16384*16384
Backlight Type LED, Normally White
Touch Screen Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

Recommended Operation condition (GND=0V，Ta=25℃)

ItemSymbolMinTypMaxUnit
Power Supply Voltage Vcc 3.0 3.3 3.6 V
Power Supply Current Icc   200 260 mA
Input logic Voltage High Level VIH 0.7Vcc - Vcc V
Low Level VIL 0 - 0.3Vcc
Supply PCAP VDDT 3.0 3.3 3.6 V
ICTP － 62 93 mA


Date Notice Link/Description
2024/12/30 EOL

Production Discontinuation of Innolux Glass for Winstar TFT WF70-800480A6*



For more details, please contact us @ [email protected]

Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 152.40x91.44
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 152.40x91.44
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Not Preferred
