WF70-800480A2816D#001-FC

TFT 7" 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 250cd/m², Resistive touch panel (LC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

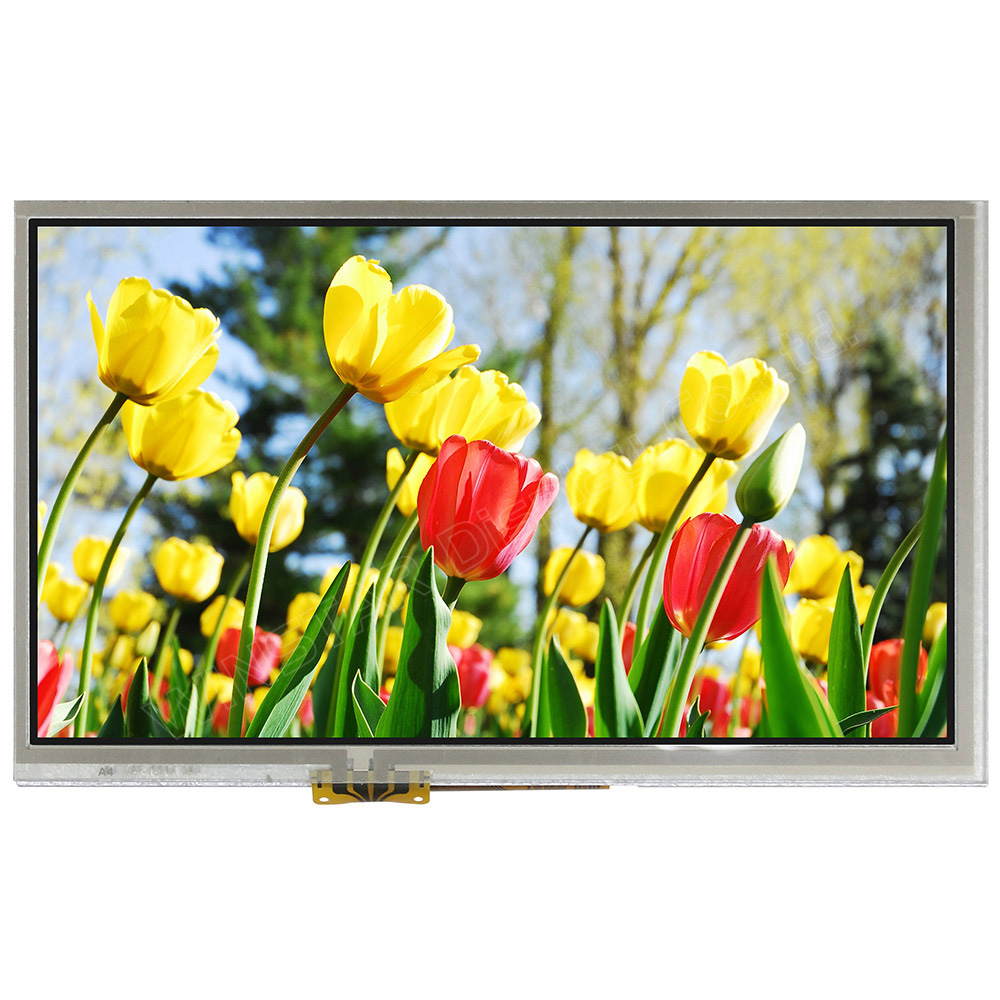

This 7 inch TFT Display is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165 x 100 mm and includes a RTP touch screen on module.

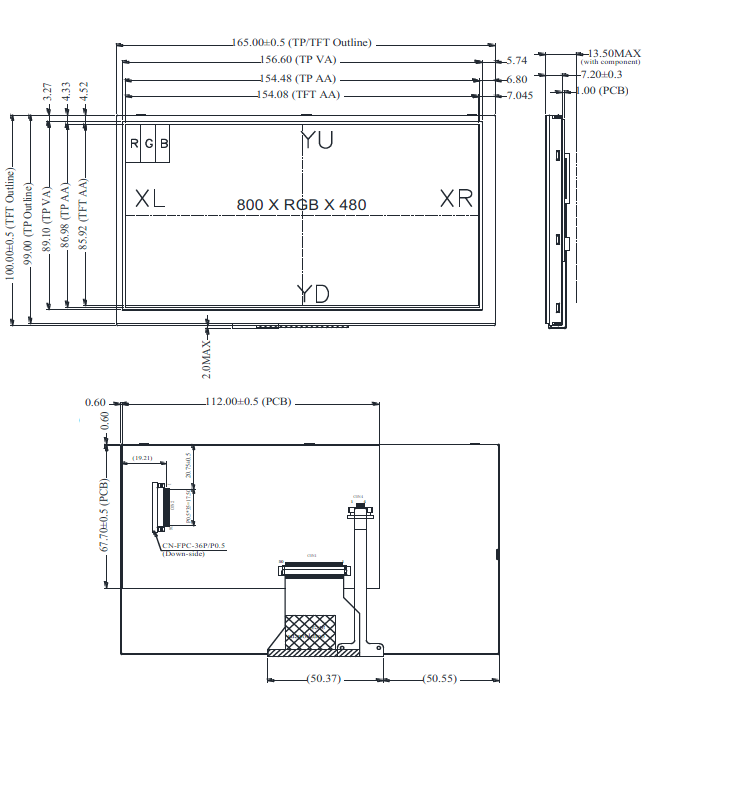

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	GND	System ground pin of the IC . Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BLE	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits Mode, this pin is NC)
23~24	NC	No connect
25	CS	Chip select
26	RST	Hardware reset
27	L/R	Left / right selection; Default L/R=H
28	U/D	Up/down selection; ; Default U/D=L
29	XL	Left electrode
30	YU	Top electrode
31	XR	Right electrode
32	YD	Bottom electrode
33~34	VLED-	Power for LED Driver IC(GND)
35~36	VLED+	Power for LED Driver IC(+5V)

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

SKU: WF70-800480A2816D#001-FC
