    WF70-8001280D4M#0SP15-FC

    TFT 7" 800x1280 LCD Panel, Interface MIPI, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive Touch Panel I2C interface (GG, ILI2511 IC)
    Brand: Winstar
    Cod.: WF70-8001280D4M#0SP15-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €110,30
    €99,30
    €93,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €110,30 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

    The WF70-8001280D4M#0SP15-FC is a vertical 7-inch high-brightness IPS TFT display featuring Projected Capacitive Touch Screen (PCAP) technology, designed for demanding industrial and commercial applications. It comes with a narrow bezel design and an extended glass cover for added durability and protection, making it ideal for rugged environments.

    Vibrant Display and Wide Viewing Angles

    With a resolution of 800 x 1280 pixels and IPS technology, this vertical touch screen display ensures vibrant color reproduction and wide viewing angles (85°/85°/85°/85°). This provides consistent image clarity from any direction.

    Advanced Touchscreen Technology

    Equipped with Projected Capacitive Touch Screen technology, the vertical touch screen supports 10-point multi-touch for responsive and precise user interactions. The ILI2511 PCAP driver IC and I2C interface further enhance the touchscreen's performance, offering a seamless and intuitive touch experience. Additionally, the PCAP panel features OCA technology to increase its durability and present better optical clarity.

    High Brightness for Visibility

    With a brightness of 850cd/m², the display is optimized for high-visibility environments, ensuring clear readability even in bright conditions. The 1000:1 contrast ratio ensures sharp text and detailed images, making it ideal for precision-demanding applications such as Human-Machine Interfaces (HMI), medical devices, and automotive systems.

    Reliable Performance in Extreme Conditions

    The WF70-8001280D4M#0SP15-FC operates reliably within a wide temperature range of -20°C to +70°C, and can be stored between -30°C and +80°C, making it suitable for challenging industrial environments. Its 2-Lane MIPI interface and ILI9881C TFT driver IC ensure smooth and efficient operation.

    Perfect for Interactive Applications

    With its vertical orientation and advanced touch capabilities, this vertical touch screen is ideal for applications that require both interactive features and high-performance visuals. Whether used in industrial control systems, medical equipment, or automotive displays, the WF70-8001280D4M#0SP15-FC offers exceptional reliability, clarity, and user interactivity, making it the perfect solution for a wide range of industries.

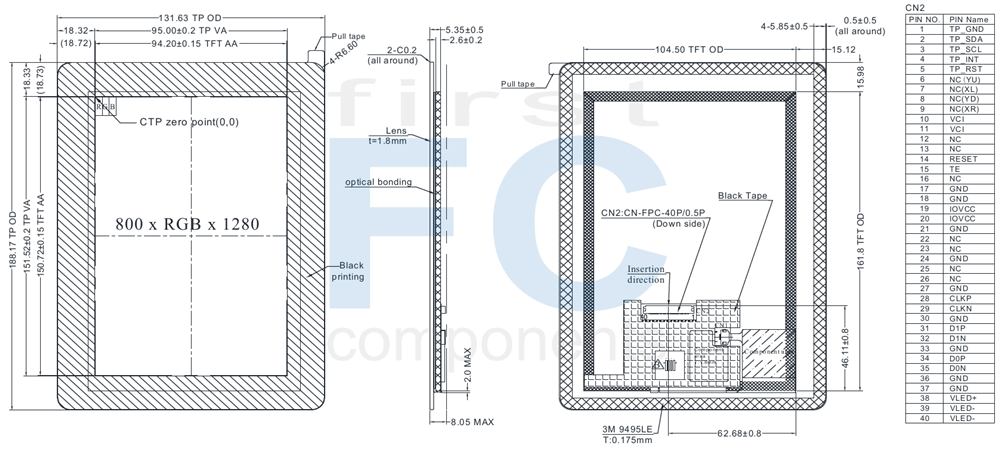

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 × RGB ×1280 dots
    Module dimension 131.63 × 188.17 × 8.05 mm
    Active area 94.2 × 150.72 mm
    Pixel pitch 0.11775 × 0.11775 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 85/85/85/85
    TFT IC ILI9881C
    TFT Interface 2-Lanes MIPI
    Aspect Ratio 16:9
    Backlight Type LED, Normally White
    PCAP Driver IC ILI2511
    PCAP Interface I2C
    PCAP FW Version 0x06.0x00.0x00.0x00.0x77.0x88.0x00.0x02
    PCAP Resolution 16384*16384
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Typical Operation Conditions

    ItemSymbolValuesUnit
    Min.Typ.Max.
    Supply voltage VCI 2.5 3.3 3.6 V
    IOVCC 1.7 1.8 1.9 V
    Supply LCM current IVCI - 130 195 mA
    IIOVCC - 18 30 mA


    Backlight Driving Conditions

    ParameterSymbolMin.Typ.Max.Unit
    LED current ILED - 140 - mA
    LED voltage VLED+ 16.8 18.0 19.2 V
    LED Life Time   - 30,000 - Hr



    Interface Pin Function

    1. LCM PIN Definition

    PinSymbolFunction
    1 TP_GND Ground
    2 TP_SDA TP serial interface address and data input/output.
    3 TP_SCL TP serial interface clock input.
    4 TP_INT TP indicate coordinate data ready.
    5 TP_RST System reset signal input, active low.
    6 NC(YU) No connection
    7 NC(XL) No connection
    8 NC(YD) No connection
    9 NC(XR) No connection
    10-11 VCI Power for analog circuit.
    12-13 NC No connection
    14 RESET Global reset pin.
    15 TE Tearing effect output pin.
    Leave the pin open when not in use.
    16 NC No connection
    17-18 GND Ground
    19-20 IOVCC Power supply for I/O system.
    21 GND Ground
    22-23 NC No connection
    24 GND Ground
    25-26 NC No connection
    27 GND Ground
    28 CLKP MIPI DSI differential clock pair leave it open or fix to LVDSVSS level when not in use
    29 CLKN MIPI DSI differential clock pair leave it open or fix to LVDSVSS level when not in use
    30 GND Ground
    31 D1P MIPI DSI differential data pair.
    32 D1N MIPI DSI differential data pair.
    33 GND Ground
    34 D0P MIPI DSI differential data pair.
    35 D0N MIPI DSI differential data pair.
    36-37 GND Ground
    38 VLED+ LED input terminal (Anode)
    39-40 VLED- Ground (Cathode)
    Specifiche di prodotto
    Size 7"
    Resolution 800x1280
    Active Area (mm) 94.20x150.72
    Color Full Color
    Display Interface MIPI
    Display IC ILI9881C
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2511
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2026/04/29 EOL Discontinuation of Winstar WF70-8001280D4M TFT Series



    For more details, please contact us @ [email protected]
