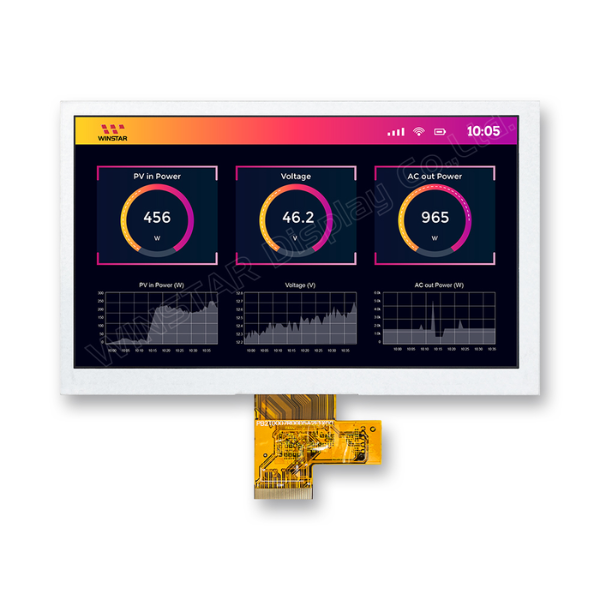

    WF70-1024600D5L#0PW0-FC

    TFT 7" 1024x600 LCD Panel, Interface LVDS, 600 cd/m², Wide View Angle (IPS), Super extended Temperature, No touch
    Brand: Winstar
    Cod.: WF70-1024600D5L#0PW0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €38,20
    €34,40
    €32,30

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €38,20 IVA esclusa
    i h

    DESCRIPTION

    The WF70-1024600D5L#0PW0-FC module is designed for demanding applications with its wide-temperature range, enhanced durability, and reliability. It is specifically built to withstand extreme temperature environments. This 7-inch IPS TFT-LCD display module boasts a 1024x600 resolution, JD9165BA driver IC, and LVDS interface, ensuring clear, stable performance in both indoor and industrial applications. With a brightness of 600 cd/m² and a contrast ratio of 1000:1, it delivers vibrant and crisp visuals.

    The IPS technology ensures an 80° wide viewing angle, maintaining stable colors and clear image quality even when viewed from the side. Equipped with an LVDS interface, it offers high-speed data transfer and strong resistance to interference, ensuring stable image output and making it suitable for applications requiring long-distance signal transmission.

    The WF70-1024600D5L#0PW0-FC model is optimized for wide-temperature environments, with an operating temperature range of -30℃ to +85℃ and a storage range of -40℃ to +90℃, making it ideal for harsh conditions. This makes it a perfect fit for industrial equipment, self-service terminals, medical devices, and automation control systems.

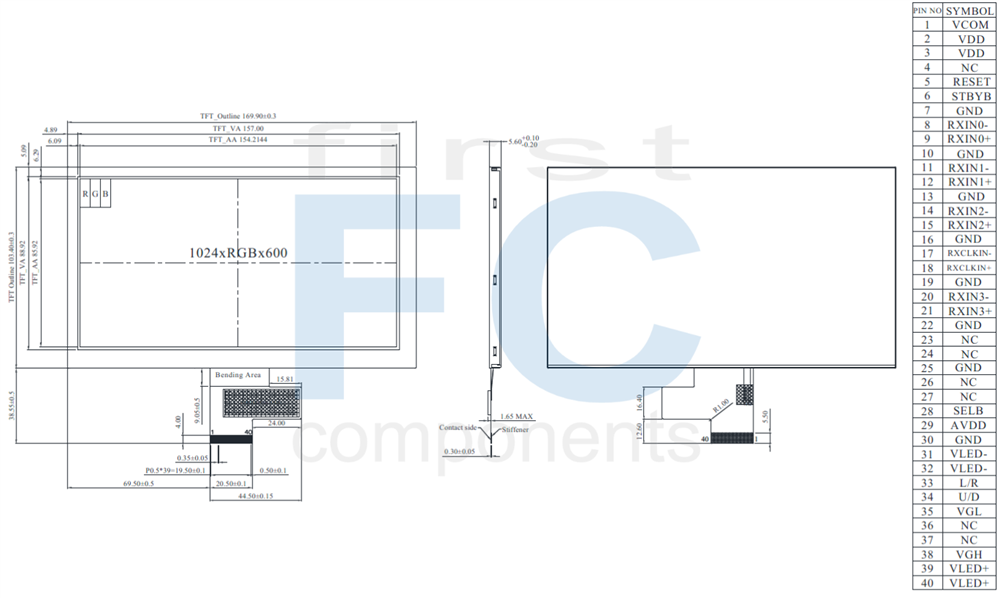

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 1024 × RGB × 600(TFT) dots
    Module dimension 169.9(W) × 103.4(H) × 5.6(D) mm
    Active area 154.2144 × 85.92 mm
    Pixel pitch 0.1506 × 0.1432 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 80/80/80/80
    TFT Driver IC JD9165BA
    Backlight Type LED, Normally White
    TFT Interface LVDS
    Touch Panel Without Touch Panel
    Surface Anti-Glare


    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +85 ℃
    Storage Temperature TST -40 - +90 ℃


    Electrical Characteristics

    Operating conditions

    ItemSymbolMin.Typ.Max.Unit
    Power voltage VDD 3.0 3.3 3.6 V
    Analog Power AVDD - 11 - V
    TFT Gate ON Voltage VGH 19.5 20 20 V
    TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
    TFT Common Voltage Vcom - 4.9 - V
    Power Current IDD - 18 27 mA
    Analog Power Current IAVDD - 20.94 - mA
    TFT Gate ON Current IVGH - 1.5 - mA
    TFT Gate OFF Current IVGL - 1.5 - mA
    TFT Common Current IVCOM - 1 - uA



    LED driving conditions

    ParameterSymbolMin.Typ.Max.Unit
    LED current - - 200 - mA
    LED voltage VLED+ 16.2 19.2 21.0 V
    LED Life Time - 50,000 - - Hr



    Interface

    1.LCM PIN Definition

    Pin No.SymbolFunction
    1 VCOM Common Voltage
    2 VDD Digital circuit
    3 VDD Digital circuit
    4 NC No connection
    5 RESET Global reset pin
    6 STBYB Standby mode, Normally pulled high
    STBYB = “1”, normal operation
    STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
    7 GND Ground
    8 RXIN0- Negative LVDS differential data input
    9 RXIN0+ Positive LVDS differential data input
    10 GND Ground
    11 RXIN1- Negative LVDS differential data input
    12 RXIN1+ Positive LVDS differential data input
    13 GND Ground
    14 RXIN2- Negative LVDS differential data input
    15 RXIN2+ Positive LVDS differential data input
    16 GND Ground
    17 RXCLKIN- Negative LVDS differential clock input
    18 RXCLKIN+ Positive LVDS differential clock input
    19 GND Ground
    20 RXIN3- Negative LVDS differential data input
    21 RXIN3+ Positive LVDS differential data input
    22 GND Ground
    23 NC No connection
    24 NC No connection
    25 GND Ground
    26 NC No connection
    27 NC No connection
    28 SELB 6bit/8bit mode select
    H:6bit / L:8bit
    29 AVDD Power for Analog Circuit
    30 GND Ground
    31 VLED- LED_ Cathode
    32 VLED- LED_ Cathode
    33 L/R Horizontal inversion
    34 U/D Vertical inversion
    35 VGL Negative power for TFT
    36 NC No connection
    37 NC No connection
    38 VGH Positive power for TFT
    39 VLED+ LED_ Anode
    40 VLED+ LED_ Anode

    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~85
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
