    WF70-1024600A8H#VSP3-FC

    TFT 7" 1024x600, HDMI / Raspberry Interface, IC TFP401, Wide View Angle (IPS), High Brightness 850cd/m², Incl. 2 connectors, Capacitive touch panel PAD mode with USB interface (GG, ILI2130 IC), Suitable for Raspberry Pi 1~3 & Pi3B+ versions
    Brand: Winstar
    Cod.: WF70-1024600A8H#VSP3-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €98,20
    €88,40
    €83,10

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €98,20 IVA esclusa
    i h

    DESCRIPTION

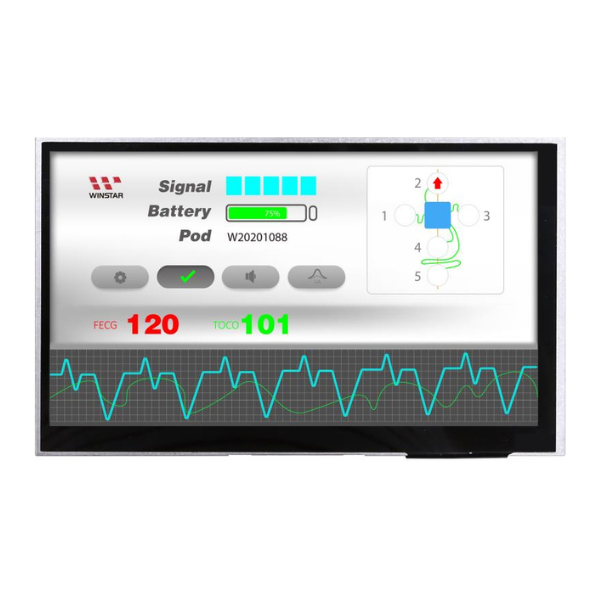

    Winstar 7" medium-sized supporting for HDMI signal display, made of high resolution 1024x600 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface and a 40-pin connector on it; it is designed to make Raspberry Pi usage become easily. We designed a connector part no.

    You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT model comes in 1024x600 resolutions that is high quality and would be good for embedded computing usage. Please note, this part no. does not include a HDMI connector or USB cable.

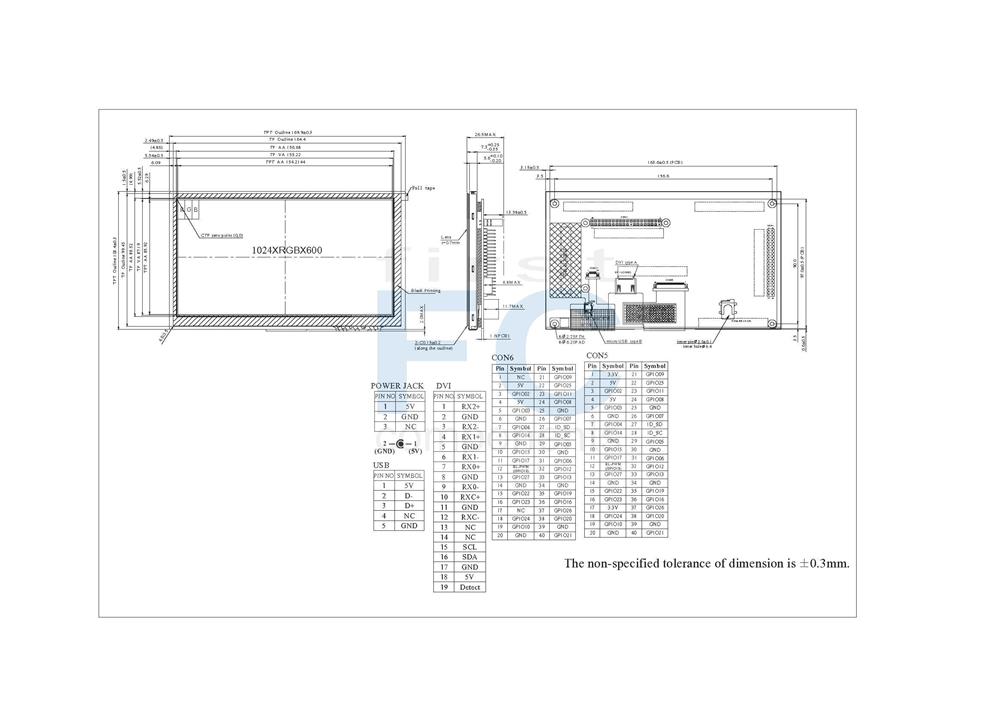

    DRAWING

    SPECIFICATIONS


    Interface



    5.1.  LCMPINDefinition(CON6)

    Pin

    Symbol

    Function

    1

    NC

    Noconnection

    2

    5V

    RaspberryPi:Power5V

    3

    GPIO02

    RaspberryPi:GPIO02

    4

    5V

    RaspberryPi:Power5V

    5

    GPIO03

    RaspberryPi:GPIO03

    6

    GND

    RaspberryPi:GND

    7

    GPIO04

    RaspberryPi:GPIO04

    8

    GPIO14

    RaspberryPi:GPIO14

    9

    GND

    RaspberryPi:GND

    10

    GPIO15

    RaspberryPi:GPIO15

    11

    GPIO17

    RaspberryPi:GPIO17

    12

    BL-PWM(GPIO18)

    RaspberryPi:GPIO18(BacklightPWM)

    13

    GPIO27

    RaspberryPi:GPIO27

    14

    GND

    RaspberryPi:GND

    15

    GPIO22

    RaspberryPi:GPIO22

    16

    GPIO23

    RaspberryPi:GPIO23

    17

    NC

    Noconnection

    18

    GPIO24

    RaspberryPi:GPIO24

    19

    GPIO10

    RaspberryPi:GPIO10

    20

    GND

    RaspberryPi:GND

    21

    GPIO09

    RaspberryPi:GPIO09

    22

    GPIO25

    RaspberryPi:GPIO25

    23

    GPIO11

    RaspberryPi:GPIO11

    24

    GPIO08

    RaspberryPi:GPIO08

    25

    GND

    RaspberryPi:GND

    26

    GPIO07

    RaspberryPi:GPIO07

    27

    ID_SD

    RaspberryPi:ID_SD

    28

    ID_SC

    RaspberryPi:ID_SC

    29

    GPIO05

    RaspberryPi:GPIO05

    30

    GND

    RaspberryPi:GND

    31

    GPIO06

    Raspberry Pi:GPIO06

    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21



    5.1.  LCMPINDefinition(CON5)

    Pin

    Symbol

    Function

    1

    3.3V

    TFTModulePowerlimitcanonlyoutput3.3V,100mA

    2

    5V

    RaspberryPi:Power5V

    3

    GPIO02

    RaspberryPi:GPIO02

    4

    5V

    RaspberryPi:Power5V

    5

    GPIO03

    RaspberryPi:GPIO03

    6

    GND

    RaspberryPi:GND

    7

    GPIO04

    RaspberryPi:GPIO04

    8

    GPIO14

    RaspberryPi:GPIO14

    9

    GND

    RaspberryPi:GND

    10

    GPIO15

    RaspberryPi:GPIO15

    11

    GPIO17

    RaspberryPi:GPIO17

    12

    BL-PWM(GPIO18)

    RaspberryPi:GPIO18(BacklightPWM)

    13

    GPIO27

    RaspberryPi:GPIO27

    14

    GND

    RaspberryPi:GND

    15

    GPIO22

    RaspberryPi:GPIO22

    16

    GPIO23

    RaspberryPi:GPIO23

    17

    3.3V

    TFTModulePowerlimitcanonlyoutput3.3V,100mA

    18

    GPIO24

    RaspberryPi:GPIO24

    19

    GPIO10

    RaspberryPi:GPIO10

    20

    GND

    RaspberryPi:GND

    21

    GPIO09

    RaspberryPi:GPIO09



    22

    GPIO25

    RaspberryPi:GPIO25

    23

    GPIO11

    RaspberryPi:GPIO11

    24

    GPIO08

    RaspberryPi:GPIO08

    25

    GND

    RaspberryPi:GND

    26

    GPIO07

    RaspberryPi:GPIO07

    27

    ID_SD

    RaspberryPi:ID_SD

    28

    ID_SC

    RaspberryPi:ID_SC

    29

    GPIO05

    RaspberryPi:GPIO05

    30

    GND

    RaspberryPi:GND

    31

    GPIO06

    RaspberryPi:GPIO06

    32

    GPIO12

    RaspberryPi:GPIO12

    33

    GPIO13

    RaspberryPi:GPIO13

    34

    GND

    RaspberryPi:GND

    35

    GPIO19

    RaspberryPi:GPIO19

    36

    GPIO16

    RaspberryPi:GPIO16

    37

    GPIO26

    RaspberryPi:GPIO26

    38

    GPIO20

    RaspberryPi:GPIO20

    39

    GND

    RaspberryPi:GND

    40

    GPIO21

    RaspberryPi:GPIO21

    1. DVI

    PinSymbolI/0Function
    1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential-input pair.
    2 GND P Ground
    3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential-input pair.
    4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential-input pair.
    5 GND P Ground
    6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential-input pair.
    7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential-input pair.
    8 GND P Ground
    9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential-input pair.
    10 RxC+ I Clock positive receiver input: low-voltage signal differential - input pair
    11 GND P Ground
    12 RxC- I Clock negative receiver input; low-voltage signal differential - input pair
    13-14 NC - No connection
    15 SCL I/O DDC (Data Display Channel) Clock
    16 SDA I/O DDC (Data Display Channel) Data
    17 GND P Ground
    18 5V P Power Supply
    19 Detact I/O Hot plug detact


    4. POWER JACK

    Pin No.SymbolI/OFunction
    1 5V P Power Supply (5V)
    2 GND P Ground
    3 NC   No connection



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 1024 × RGB × 600(TFT) dots
    Module dimension 169.9(W) × 103.4(H) × 22.0(D) mm
    Active area 154.2114 × 85.92 mm
    Dot pitch 0.1506 × 0.1432 mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85
    Aspect Ratio 16:9
    Backlight Type LED, Normally White
    Controller IC TFP401 or equivalent
    TFT Interface Support HDMI Connector (Only DVI Signal)
    CTP IC ILI2130 or Equivalent
    CTP Interface USB
    CTP FW Version 0.07 0x00 0x00 0x00 0x65 0x90 0x00 0x01
    CTP Resolution 16384*16384
    Touch Screen with CPT
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VDD - 4.9 5 5.1 V
    Supply Current For LCM IDD - - 1940 2920 mA
    LED life time - - - 50,000 - Hr
    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface HDMI
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector / Raspberry Connector
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
