    WF70-1024600A8H#0SP0-FC

    TFT 7" 1024x600, HDMI Interface, IC TFP401, Wide View Angle (IPS), High Brightness 1100cd/m², No Touch (No Raspberry Connectors)
    Brand: Winstar
    Cod.: WF70-1024600A8H#0SP0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €78,20
    €70,40
    €66,20

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €78,20 IVA esclusa
    i h

    DESCRIPTION

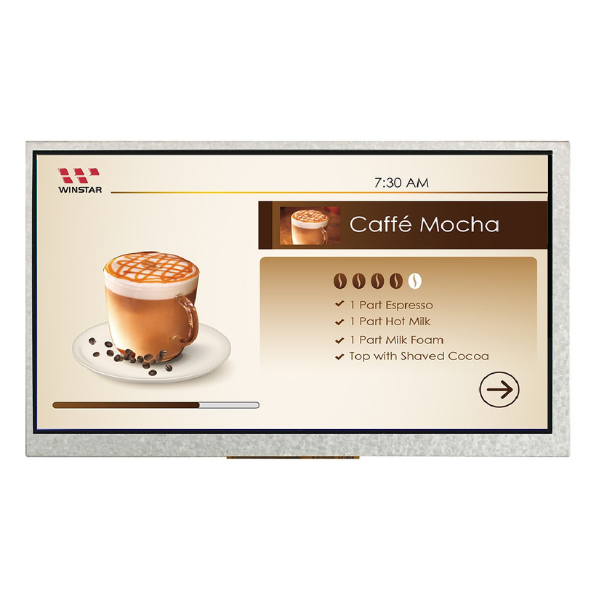

    Winstar 7" medium-sized supporting for HDMI signal display, made of high resolution 1024x600 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface and a 40-pin connector on it; it is designed to make Raspberry Pi usage become easily.

    You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT model comes in 1024x600 resolutions that is high quality and would be good for embedded computing usage. Please note, this part no. does not include a HDMI connector or USB cable.





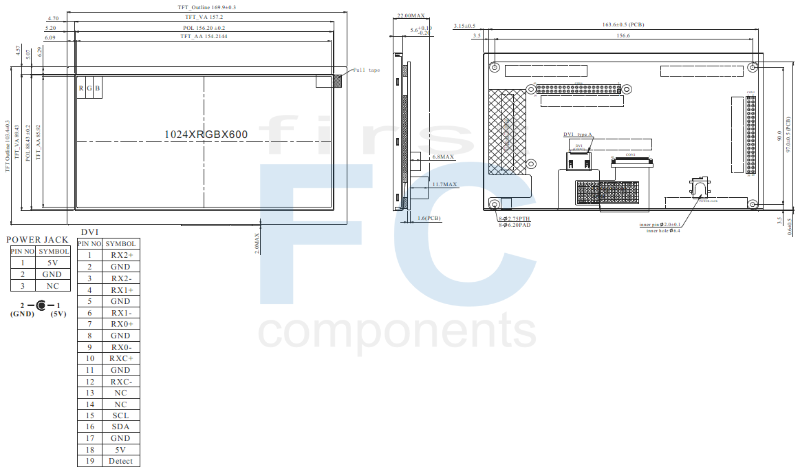

    DRAWING

    SPECIFICATIONS


    Interface

    1. HDMI

    PinSymbolI/0Function
    1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential-input pair.
    2 GND P Ground
    3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential-input pair.
    4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential-input pair.
    5 GND P Ground
    6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential-input pair.
    7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential-input pair.
    8 GND P Ground
    9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential-input pair.
    10 RxC+ I Clock positive receiver input: low-voltage signal differential - input pair
    11 GND P Ground
    12 RxC- I Clock negative receiver input; low-voltage signal differential - input pair
    13-14 NC - No connection
    15 SCL I/O DDC (Data Display Channel) Clock
    16 SDA I/O DDC (Data Display Channel) Data
    17 GND P Ground
    18 5V P Power Supply
    19 Detact I/O Hot plug detact


    4. POWER JACK

    Pin No.SymbolI/OFunction
    1 5V P Power Supply (5V)
    2 GND P Ground
    3 NC   No connection



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 1024 × RGB × 600(TFT) dots
    Module dimension 169.9(W) × 103.4(H) × 22.0(D) mm
    Active area 154.2114 × 85.92 mm
    Dot pitch 0.1506 × 0.1432 mm
    LCD type TFT, Normally White, Transmissive
    View Direction 85/85/85
    Aspect Ratio 16:9
    Backlight Type LED, Normally White
    Controller IC TFP401 or equivalent
    TFT Interface Support HDMI Connector (Only DVI Signal)
    Touch Screen No
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VDD - 4.9 5 5.1 V
    Supply Current For LCM IDD - - 1635 2453 mA
    LED life time - - - 50,000 - Hr
    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface HDMI
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector
