    WF70-1024600A8D#0SP0-FC

    TFT 7" 1024x600 LCD Panel, Interface RGB, High Brightness 1000cd/m², Wide View Angle (IPS), No touch
    Brand: Winstar
    Cod.: WF70-1024600A8D#0SP0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €43,00
    €38,70
    €36,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €43,00 IVA esclusa
    i h

    DESCRIPTION

    WF70-1024600A8D#0SP0-FC TFT LCD Display Module delivers exceptional performance across diverse applications. This 7-inch module features a high-resolution 1024 x 600 pixel display and an active area of 154.2144 x 85.92 mm, ensuring clear and detailed visuals.

    The WF70-1024600A8D#0SP0-FC utilizes TFT technology with a Normally Black, Transmissive LCD type and an IPS panel that provides wide 85/85/85/85-degree viewing angles, ensuring a vivid display experience. Its 16:9 aspect ratio, paired with a high brightness of 1100 cd/m2 and a contrast ratio of 800:1, enhances visibility in various lighting conditions.

    With EK79001HK-S + EK73215BCGA driver ICs and a 24-bit RGB interface, this module seamlessly integrates into UAV controllers, industrial equipment, medical devices, smart home systems, and multifunctional office equipment.

    The WF70-1024600A8D#0SP0-FC is designed with a LED backlight (Normally White) and anti-glare surface, ensuring optimal visibility and durability. Its power-efficient operation, ranging from 3.0 V to 3.6 V (typical value: 3.3V), enhances its suitability for diverse environments.





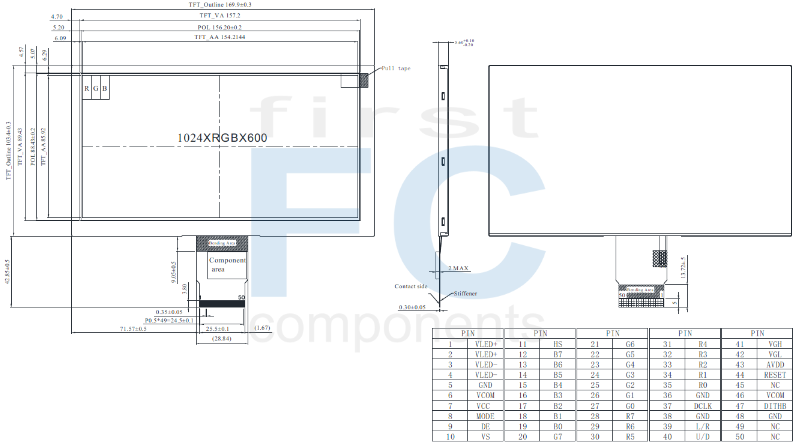

    DRAWING

    SPECIFICATIONS

    Interface

    Pin No.SymbolFunction
    1 VLED+ LED Anode
    2 VLED+ LED Anode
    3 VLED- LED Cathode
    4 VLED- LED Cathode
    5 GND Ground
    6 VCOM Common voltage
    7 VCC Power for Digital Circuit
    8 MODE DE/SYNC mode select
    9 DE Data Input Enable (DEN)
    10 VS Vertical Sync Input (VSD)
    11 HS Horizontal Sync Input (HSD)
    12 B7 Blue data(MSB)
    13 B6 Blue data
    14 B5 Blue data
    15 B4 Blue data
    16 B3 Blue data
    17 B2 Blue data
    18 B1 Blue data
    19 B0 Blue data(LSB)
    20 G7 Green data(MSB)
    21 G6 Green data
    22 G5 Green data
    23 G4 Green data
    24 G3 Green data
    25 G2 Green data
    26 G1 Green data
    27 G0 Green data(LSB)
    28 R7 Red data(MSB)
    29 R6 Red data
    30 R5 Red data
    31 R4 Red data
    32 R3 Red data
    33 R2 Red data
    34 R1 Red data
    35 R0 Red data(LSB)
    36 GND Power Ground
    37 DCLK Sample clock (CLK)
    38 GND Power Ground
    39 L/R Left / right selection
    40 U/D Up/down selection
    41 VGH Gate ON Voltage
    42 VGL Gate OFF Voltage
    43 AVDD Power for Analog Circuit
    44 RESET Global reset pin.
    45 NC No connection
    46 VCOM Common Voltage
    47 DITHB Dithering function
    48 GND Power Ground
    49 NC No connection
    50 NC No connection



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 1024 x RGBx600(TFT) dots
    Module dimension 169.9(W) x 103.4(H) x 5.6(D) mm
    Active area 154.2144 x 85.92 mm
    Pixel pitch 0.1506 x 0.1432 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 85/85/85/85
    Aspect Ratio 16:9
    Driver IC EK79001HK-S + EK73215BCGA
    Interface 24bit RGB
    Backlight Type LED, Normally White
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolValuesUnit
    Min.Typ.Max.
    Power voltage VCC 3.0 3.3 3.6 V
    Analog Power AVDD 8.9 9.0 9.1 V
    TFT Gate ON Voltage VGH 17 18 19 V
    TFT Gate OFF Voltage VGL -6.5 -6.0 -5.5 V
    TFT Common Voltage Vcom 3.0 3.15 3.3 V
    Current for Driver IDD - 85 130 mA
    Power Current IAVDD - 20 - mA
    TFT Gate ON Current IVGH - 1 - mA
    TFT Gate OFF Current IVGL - 1 - mA
    TFT Common Current IVCOM - 1 - mA
    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 50
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
