    WF70-1024600A7H#V03-FC

    TFT 7" 1024x600, HDMI / Raspberry Interface, IC TFP401, 450cd/m², Incl. 2 connectors, Capacitive touch panel Mouse mode with USB interface (GG, ILI2130 IC), Suitable for Raspberry Pi 1~3 & Pi3B+ versions
    Brand: Winstar
    Cod.: WF70-1024600A7H#V03-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €105,10
    €94,60
    €89,00

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €105,10 IVA esclusa
    i h

    DESCRIPTION

    Winstar 7" medium-sized supporting for HDMI signal display, made of high resolution 1024x600 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface and a 40-pin connector on it; it is designed to make Raspberry Pi usage become easily. This TFT display has a USB interface Capacitive touch panel overlay on TFT panel. We designed a connector part no. WWHDMI-00# for option, the customers can use it to connect the module with your Raspberry Pi directly.

    You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT model comes in 1024x600 resolutions that is high quality and would be good for embedded computing usage. Please note, this part no. does not include a HDMI connector or USB cable.



    Features:

    • Good touch response
    • Fast response time
    • Not only for Raspberry Pi
    • Not only for mini-PCs, it can work as a computer monitor

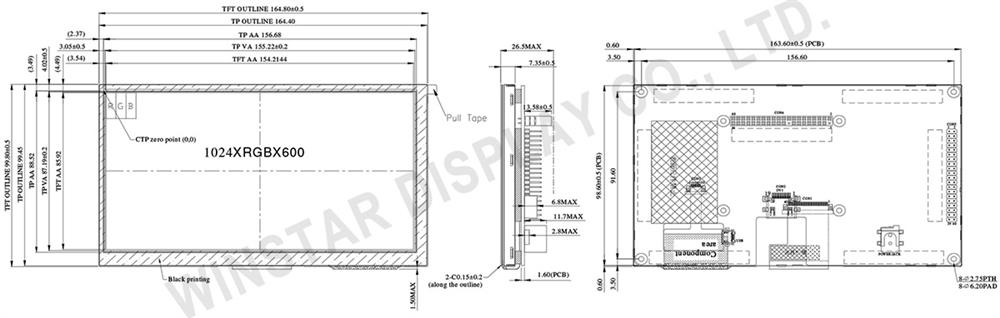

    DRAWING



    SPECIFICATIONS


    Interface

    1. LCM PIN Definition(CON6)

    PinSymbolFunction
    1 NC No connection
    2 5V Raspberry Pi:Power 5V
    3 GPIO02 Raspberry Pi:GPIO02
    4 5V Raspberry Pi:Power 5V
    5 GPIO03 Raspberry Pi:GPIO03
    6 GND Raspberry Pi:GND
    7 GPIO04 Raspberry Pi:GPIO04
    8 GPIO14 Raspberry Pi:GPIO14
    9 GND Raspberry Pi:GND
    10 GPIO15 Raspberry Pi:GPIO15
    11 GPIO17 Raspberry Pi:GPIO17
    12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
    13 GPIO27 Raspberry Pi:GPIO27
    14 GND Raspberry Pi:GND
    15 GPIO22 Raspberry Pi:GPIO22
    16 GPIO23 Raspberry Pi:GPIO23
    17 NC No connection
    18 GPIO24 Raspberry Pi:GPIO24
    19 GPIO10 Raspberry Pi:GPIO10
    20 GND Raspberry Pi:GND
    21 GPIO09 Raspberry Pi:GPIO09
    22 GPIO25 Raspberry Pi:GPIO25
    23 GPIO11 Raspberry Pi:GPIO11
    24 GPIO08 Raspberry Pi:GPIO08
    25 GND Raspberry Pi:GND
    26 GPIO07 Raspberry Pi:GPIO07
    27 ID_SD Raspberry Pi:ID_SD
    28 ID_SC Raspberry Pi:ID_SC
    29 GPIO05 Raspberry Pi:GPIO05
    30 GND Raspberry Pi:GND
    31 GPIO06 Raspberry Pi:GPIO06
    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21


    2. LCM PIN Definition (CON5)

    PinSymbolFunction
    1 3.3V TFT Module Power limit can only output 3.3V,100mA
    2 5V Raspberry Pi:Power 5V
    3 GPIO02 Raspberry Pi:GPIO02
    4 5V Raspberry Pi:Power 5V
    5 GPIO03 Raspberry Pi:GPIO03
    6 GND Raspberry Pi:GND
    7 GPIO04 Raspberry Pi:GPIO04
    8 GPIO14 Raspberry Pi:GPIO14
    9 GND Raspberry Pi:GND
    10 GPIO15 Raspberry Pi:GPIO15
    11 GPIO17 Raspberry Pi:GPIO17
    12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
    13 GPIO27 Raspberry Pi:GPIO27
    14 GND Raspberry Pi:GND
    15 GPIO22 Raspberry Pi:GPIO22
    16 GPIO23 Raspberry Pi:GPIO23
    17 3.3V TFT Module Power limit can only output 3.3V,100mA
    18 GPIO24 Raspberry Pi:GPIO24
    19 GPIO10 Raspberry Pi:GPIO10
    20 GND Raspberry Pi:GND
    21 GPIO09 Raspberry Pi:GPIO09
    22 GPIO25 Raspberry Pi:GPIO25
    23 GPIO11 Raspberry Pi:GPIO11
    24 GPIO08 Raspberry Pi:GPIO08
    25 GND Raspberry Pi:GND
    26 GPIO07 Raspberry Pi:GPIO07
    27 ID_SD Raspberry Pi:ID_SD
    28 ID_SC Raspberry Pi:ID_SC
    29 GPIO05 Raspberry Pi:GPIO05
    30 GND Raspberry Pi:GND
    31 GPIO06 Raspberry Pi:GPIO06
    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21


    3. USB

    PinSymbolFunction
    1 5V Power Supply (5V)
    2 D- Data line -
    3 D+ Data line +
    4 NC No connection
    5 GND Power Ground


    4. POWER JACK

    Pin No.SymbolI/OFunction
    1 5V P Power Supply (5V)
    2 GND P Ground
    3 NC   No connection


    5. HDMI

    Pin No.SymbolI/OFunction
    1 Rx2+ I +LVDS Differential Data Input
    2 GND P Ground
    3 Rx2- I -LVDS Differential Data Input
    4 Rx1+ I +LVDS Differential Data Input
    5 GND P Ground
    6 Rx1- I -LVDS Differential Data Input
    7 Rx0+ I +LVDS Differential Data Input
    8 GND P Ground
    9 Rx0- I -LVDS Differential Data Input
    10 RxC+ I +LVDS Differential Clock Input
    11 GND P Ground
    12 RxC- I -LVDS Differential Clock Input
    13-14 NC - No connection
    15 SCL I/O DDC(Data Display Channel) Clock
    16 SDA I/O DDC(Data Display Channel) Data
    17 GND P Ground
    18 5V P Power Supply
    19 Detect I/O Hot plug detect
    I: input, O: output, P: Power


    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 1024 x RGB x 600(TFT) dots
    Module dimension 164.8(W) x 99.8(H) x 26.5 (D) mm
    Active area 154.2144 x 85.92 mm
    Dot pitch 0.1506 x 0.1432 mm
    LCD type TFT, Normally White, Transmissive
    View Direction 12 o’clock
    Gray Scale Inversion Direction 6 o’clock
    Aspect Ratio 16:9
    Controller IC TFP401 or equivalent
    Backlight Type LED, Normally White
    TFT Interface Support HDMI Connector (Only DVI Signal)
    PCAP IC ILI2130 from April 2021 (FT5426 until April 2021)
    PCAP Interface USB
    PCAP FW Version 03
    Touch Screen Projected Capacitive Touch Screen (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VDD - 4.9 5 5.1 V
    Supply Current For LCM IDD - - 870 1200 mA
    LED life time - - - 50,000 - Hr
    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface HDMI
    View Angle TN
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector / Raspberry Connector
    Touch Panel IC Controller ILI2130
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
