    WF57-320240WPD#004-FC

    TFT 5.7" 320x240 LCD Panel, Interface RGB, Power board (33pin), 500cd/m², Frame, No touch
    Brand: Winstar
    Cod.: WF57-320240WPD#004-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €73,80
    €66,40
    €62,50

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €73,80 IVA esclusa
    i h



    DESCRIPTION



    TFT 5.7” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

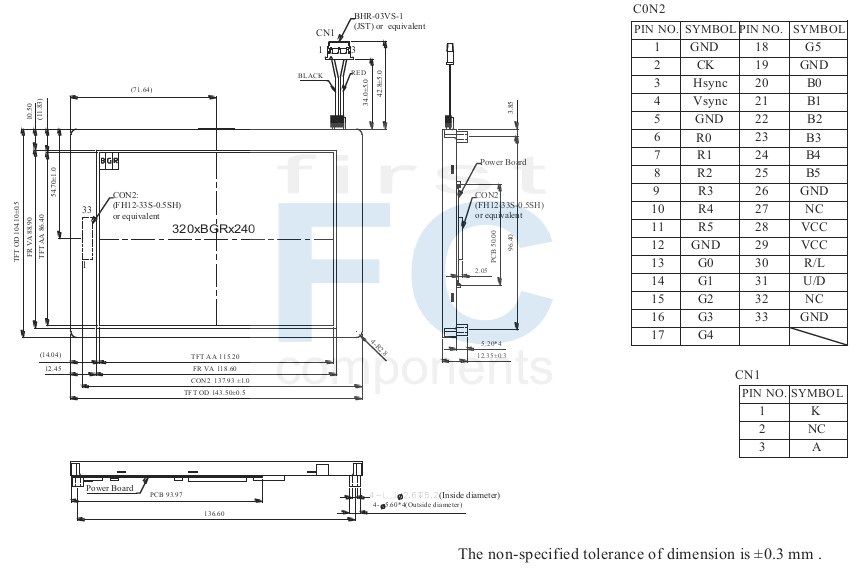

    DRAWING





    SPECIFICATIONS



    Interface

    LCM PIN Definition

    Pin

    Symbol

    Function

    Remark

    1

    GND

    Ground



    2

    CK

    Clock signal for sampling each data signal(DCLK)



    3

    Hsync

    Horizontal synchronous signal



    4

    Vsync

    Vertical synchronous signal



    5

    GND

    Ground



    6

    R0

    Red Data bit(LSB)



    7

    R1

    Red Data bit



    8

    R2

    Red Data bit



    9

    R3

    Red Data bit



    10

    R4

    Red Data bit



    11

    R5

    Red Data bit(MSB)



    12

    GND

    Ground



    13

    G0

    Green Data bit(LSB)



    14

    G1

    Green Data bit



    15

    G2

    Green Data bit



    16

    G3

    Green Data bit



    17

    G4

    Green Data bit



    18

    G5

    Green Data bit(MSB)



    19

    GND

    Ground



    20

    B0

    Blue Data bit(LSB)



    21

    B1

    Blue Data bit



    22

    B2

    Blue Data bit



    23

    B3

    Blue Data bit



    24

    B4

    Blue Data bit



    25

    B5

    Blue Data bit(MSB)



    26

    GND

    Ground



    27

    NC

    No connect



    28

    VCC

    +3.3V power supply



    29

    VCC

    +3.3V power supply



    30

    R/L

    Selection signal for horizontal scanning direction

    (L: Normally   H: Right-and-left reversal)

    Note 1

    31

    U/D

    Selection signal for vertical scanning direction

    Note 1





    (H: Normally      L: Up-and-Down reversal



    32

    NC

    No connect



    33

    GND

    Ground





    General Specifications

    Item

    Dimension

    Unit

    Size

    5.7

    inch

    Dot Matrix

    320 x RGBx240(TFT)

    dots

    Module dimension

    143.5 x 104.1 x 12.35

    mm

    Active area

    115.2 x 86.4

    mm

    Dot pitch

    0.12 x 0.36

    mm

    LCD type

    TFT, Normally White, Transmissive

    Drive IC

    HX8218+HX8615 or equivalent

    Interface

    18-bit RGB

    View Direction

    6 o’clock

    Gray Scale Inversion Direction

    12 o’clock

    Aspect Ratio

    4:3

    Backlight Type

    LED,Normally White

    With /Without TP

    Without TP

    Surface

    Glare



    Absolute Maximum Ratings

    Item

    Symbol

    Min

    Typ

    Max

    Unit

    Operating Temperature

    TOP

    -20

    -

    +70

    °C

    Storage Temperature

    TST

    -30

    -

    +80

    °C



    Electrical Characteristics

    Operating conditions

    Item

    Symbol

    Condition

    Min

    Typ

    Max

    Unit

    Remark

    Supply Voltage For LCM

    VCC

    -

    3.0

    3.3

    3.6

    V



    Supply Current For LCM

    ICC

    -

    -

    110

    170

    mA

    Note1

    Power Consumption

    —

    —

    —

    363

    612

    mW

    VCC=3.3V



    LED driving conditions

    Parameter

    Symbol



    Unit

    Remark

    LED current



    -

    140

    -

    mA



    Power Consumption



    1260

    -

    1470

    mW



    LED voltage

    VBL+

    9.0

    -

    10.5

    V

    Note 1

    LED Life Time



    -

    50,000

    -

    Hr

    Note 2,3,4



    Optical Characteristics

    Item

    Symbol



    Min



    Unit

    Remark

    Response time

    Tr+Tf

    8=0°      fr=0°



    25

    -

    .ms

    Note 3

    Contrast ratio

    CR

    At optimized
    viewing angle

    -

    300

    -

    -

    Note 4

    Color

    Chromaticity

    White

    Wx

    8=0°       fr=0

    0.267

    0.317

    0.367



    Note

    2,6,7

    Wy

    0.303

    0.353

    0.403



    Viewing
    angle

    (Gray Scale Inversion Direction)



    ΘR

    CR≧10

    -

    60

    -



    Note 1

    ΘL

    -

    60

    -



    frT

    -

    70

    -

    frB

    -

    70

    -

    Brightness

    -

    -

    400

    500

    -

    cd/m2

    Center of display

    Uniformity

    (U)

    -

    75

    -

    -

    %

    Note 5

    Specifiche di prodotto
    Size 5.7"
    Resolution 320x240
    Active Area (mm) 115.20x86.40
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 33
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
