WF50BSZAGDNN0#

Immagine di WF50BSZAGDNN0# Immagine di WF50BSZAGDNN0#

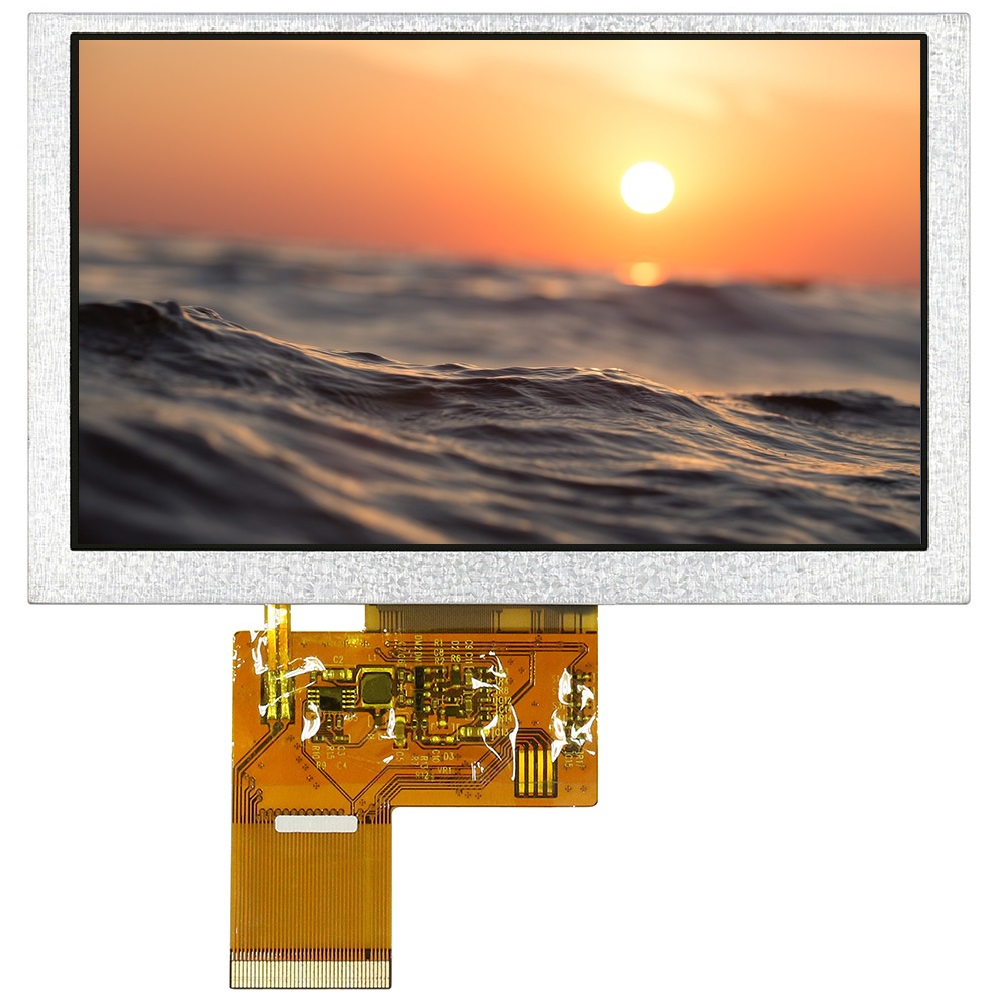

TFT 5" 800x480 LCD Panel, Interface RGB, Wide view angle (O-Film), High brightness 750cd/m², No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us for alternative parts at [email protected].

DESCRIPTION

Winstar Display 5.0" High brightness and high resolution color TFT LCD Module model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but this module is with a better resolution. The resolution of our existing standard 4.3” is with 480x272 resolution and 5.7” TFT is with 320x240, as to the 5'' is with 800x480 resolution. Good option for customers while designing a new project which request a better resolution or competitive price. Outline dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.80 mm. Wide view angle in O-Film technology. Operating temperatures from –20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

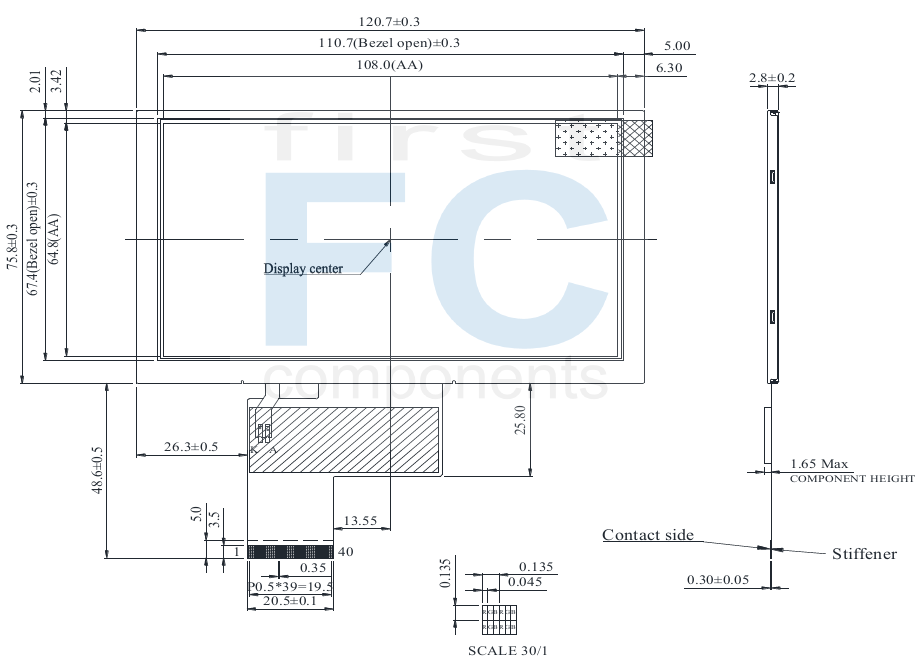

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC/HS No connection /Horizontal sync input
33 NC/VS No connection /Vertical sync input
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection

General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × RGB × 480 dots
Module dimension 120.7(W) × 75.8(H) × 2.8(D) mm
Active area 108 (W) × 64.8(H) mm
Dot pitch 0.045(W) × 0.135(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare

 Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

 Electrical Characteristics

ItemSymbolValuesUnit
Min.TypMax.
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver (Black) IDD - 110 170 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD


SKU: WF50-800480BD#0SF0-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€38,30
€30,60
€26,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€38,30 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us for alternative parts at [email protected].

DESCRIPTION

Winstar Display 5.0" High brightness and high resolution color TFT LCD Module model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but this module is with a better resolution. The resolution of our existing standard 4.3” is with 480x272 resolution and 5.7” TFT is with 320x240, as to the 5'' is with 800x480 resolution. Good option for customers while designing a new project which request a better resolution or competitive price. Outline dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.80 mm. Wide view angle in O-Film technology. Operating temperatures from –20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC/HS No connection /Horizontal sync input
33 NC/VS No connection /Vertical sync input
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection

General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × RGB × 480 dots
Module dimension 120.7(W) × 75.8(H) × 2.8(D) mm
Active area 108 (W) × 64.8(H) mm
Dot pitch 0.045(W) × 0.135(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare

 Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

 Electrical Characteristics

ItemSymbolValuesUnit
Min.TypMax.
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver (Black) IDD - 110 170 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD


Specifiche di prodotto
Brand Winstar
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione O-Film
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
