WF50BSIAGDNGD#

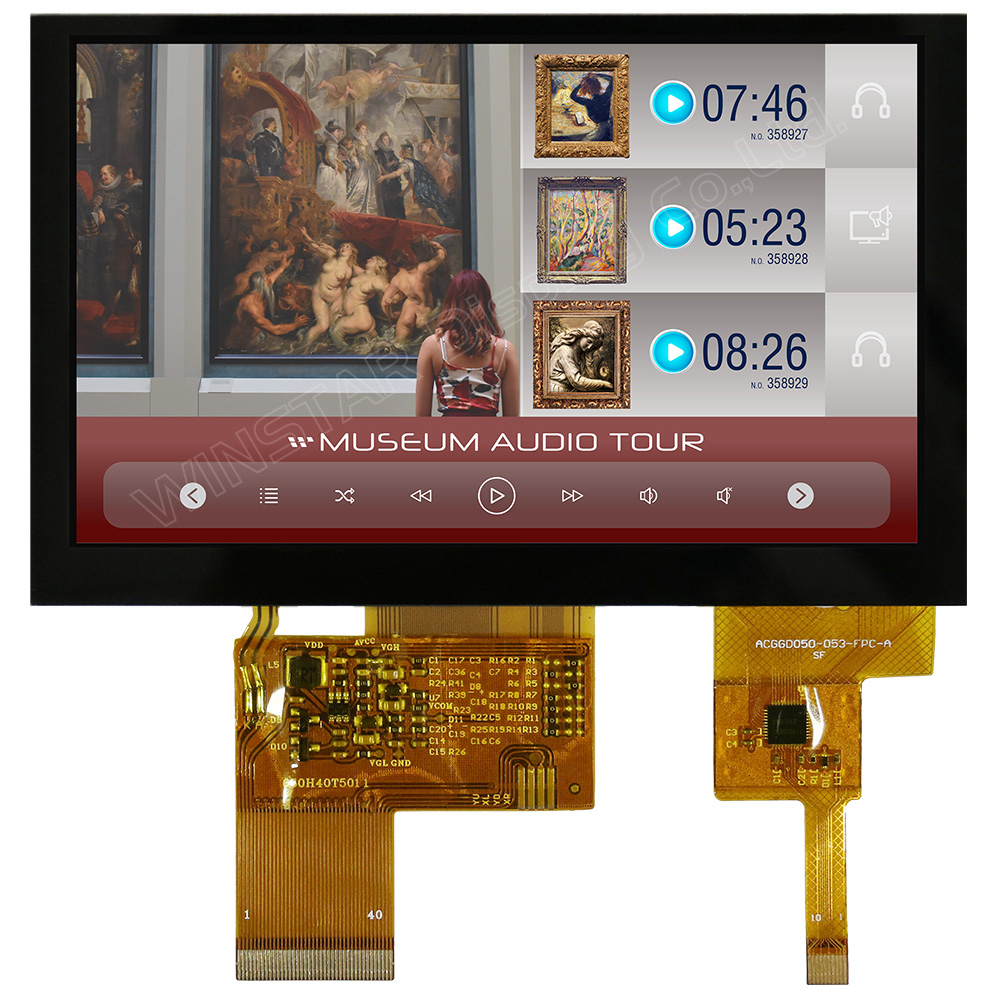

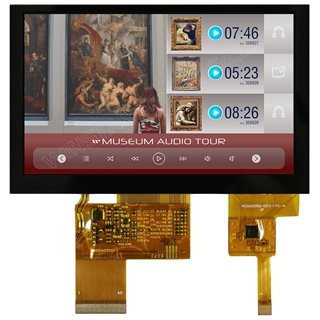

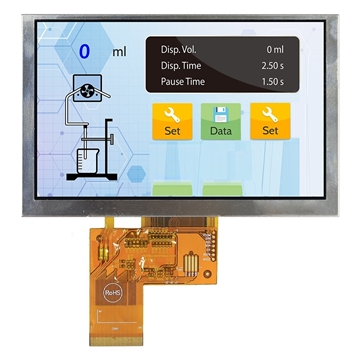

TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 750cd/m², Capacitive touch panel I2C interface (GG, ILI2130 IC)

RECOMMENDED ONLY AS SPARE PARTS



For new projects please contact us at [email protected].



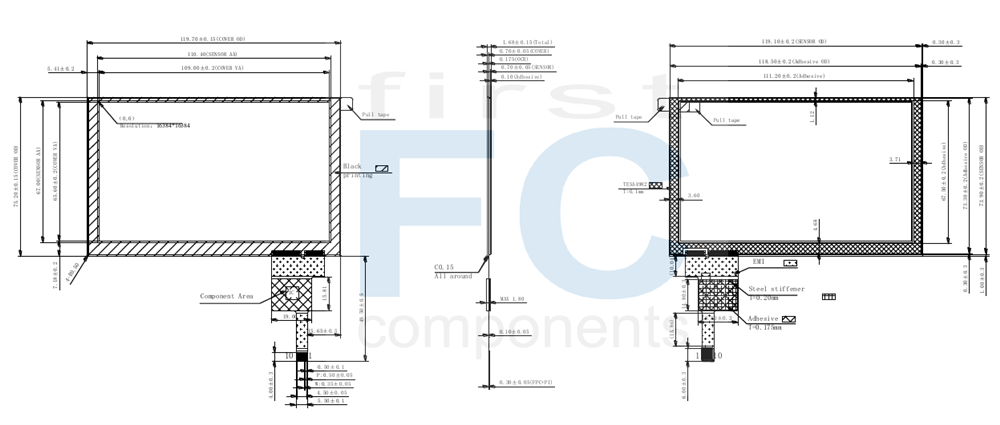

DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

VLED-

Power for LED backlight (Cathode)



2

VLED+

Power for LED backlight (Anode)



3

GND

Power Ground



4

VDD

Power voltage



5

R0

Red data (LSB)



6

R1

Red data



7

R2

Red data



8

R3

Red data



9

R4

Red data



10

R5

Red data



11

R6

Red data



12

R7

Red data(MSB)



13

G0

Green data(LSB)



14

G1

Green data



15

G2

Green data



16

G3

Green data



17

G4

Green data



18

G5

Green data



19

G6

Green data



20

G7

Green data(MSB)



21

B0

Blue data(LSB)



22

B1

Blue data



23

B2

Blue data



24

B3

Blue data



25

B4

Blue data



26

B5

Blue data



27

B6

Blue data



28

B7

Blue data(MSB)



29

GND

Power Ground



30

CLK

Sample clock



31

DISP

Display on/off



32

NC/HSync

No connection /Horizontal sync input

(Note)

33

NC/VSync

No connection /Vertical sync input

(Note)

34

DE

Data input enable



35

NC

No connection



36

GND

Power Ground



37

NC

No connection



38

NC

No connection



39

NC

No connection



40

NC

No connection





CTP PIN Definition

Pin

Symbol

Function

Remark

1

VSS

Ground for analog circuit



2

VDDT

Power Supply : +3.3V



3

SCL

I2C clock inputI2C clock input



4

NC

No connect



5

SDA

I2C data input and output



6

NC

No connect



7

/RST

External Reset, Low is active



8

NC

No connect



9

/INT

External interrupt to the host



10

VSS

Ground for analog circuit





SKU: WF50-800480BD#DS3-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€55,40
€46,20
€39,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€55,40 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS



For new projects please contact us at [email protected].



DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

VLED-

Power for LED backlight (Cathode)



2

VLED+

Power for LED backlight (Anode)



3

GND

Power Ground



4

VDD

Power voltage



5

R0

Red data (LSB)



6

R1

Red data



7

R2

Red data



8

R3

Red data



9

R4

Red data



10

R5

Red data



11

R6

Red data



12

R7

Red data(MSB)



13

G0

Green data(LSB)



14

G1

Green data



15

G2

Green data



16

G3

Green data



17

G4

Green data



18

G5

Green data



19

G6

Green data



20

G7

Green data(MSB)



21

B0

Blue data(LSB)



22

B1

Blue data



23

B2

Blue data



24

B3

Blue data



25

B4

Blue data



26

B5

Blue data



27

B6

Blue data



28

B7

Blue data(MSB)



29

GND

Power Ground



30

CLK

Sample clock



31

DISP

Display on/off



32

NC/HSync

No connection /Horizontal sync input

(Note)

33

NC/VSync

No connection /Vertical sync input

(Note)

34

DE

Data input enable



35

NC

No connection



36

GND

Power Ground



37

NC

No connection



38

NC

No connection



39

NC

No connection



40

NC

No connection





CTP PIN Definition

Pin

Symbol

Function

Remark

1

VSS

Ground for analog circuit



2

VDDT

Power Supply : +3.3V



3

SCL

I2C clock inputI2C clock input



4

NC

No connect



5

SDA

I2C data input and output



6

NC

No connect



7

/RST

External Reset, Low is active



8

NC

No connect



9

/INT

External interrupt to the host



10

VSS

Ground for analog circuit





Specifiche di prodotto
Brand Winstar
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Not Preferred
