WF50-800480FD#BPW3-FC

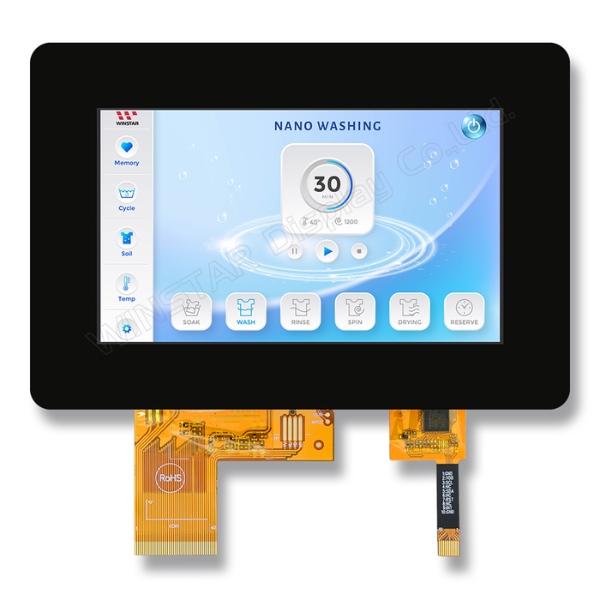

TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)

DESCRIPTION

The WF50-800480FD#BPW3-FC is a 5-inch TFT LCD module with a resolution of 800 × 480 pixels and an aspect ratio of 5:3. This TFT module is equipped with a projected capacitive touch screen and adopts IPS display technology, providing wider viewing angles of 80 degrees in all directions (left, right, up, and down). It features a built-in ST7262 driver IC and supports a 24-bit RGB interface.

The module's dimensions are 147 × 104 mm, with an active area size of 108 × 64.8 mm. It includes a projected capacitive touch panel (PCAP) with a GT911 driver IC, supporting I2C interfaces and 5-point touch functionality. The power supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V.

This module is designed to operate within a wide temperature range: from -30℃ to +80℃ for both operating and storage conditions. It has a contrast ratio of 1,000:1 (typical value) and a brightness of 400 nits (typical value).

The 5-inch display module is suitable for use in control panels for white goods, industrial control systems, audio equipment, and home security systems.



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock(DCLK)
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection


PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.0(W) × 104.0(H) × 4.88 mm
Active area 108(W) × 64.8(H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 5:3
Driver IC ST7262 or equivalent
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
PCAP IC GT911 or equivalent
PCAP Interface I2C
PCAP FW Version 65
PCAP Resolution 800*480
Touch Screen Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 3.1 3.3 3.6 V
Current for Driver (Black) IDD - 65 97.5 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD
Supply PCAP VDDT 2.8 - 3.3 V
ICTP 15 22.5 mA
SKU: WF50-800480FD#BPW3-FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€43,10
€35,90
€31,10

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€43,10 IVA esclusa
