WF35QTIBCDBCB#

TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 340cd/m², Frame, Capacitive touch panel I2C interface (GFF, FT5426 IC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

The 3.5'' capacitive touch screen TFT LCD has SSD1963 controller board plus a 36 pin-out connector. This model is with Projected capacitive touch screen (PCAP), it's available in 8 bit or 16 bit option and already defined pin no. 33 ~ 36 as backlight supply on this SSD1963 LCD controller board, therefore, there is no need to design extra backlight circuit. The TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

  • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • Q Series modules are available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
  • The 5.7", 7.0", 8.0"and 10.2" Q Series are allowed to design “Sleep Mode” to close BIAS(VGH, VGL, AVDD) low power consumption mode.
  • Capacitive Touchscreen TFT options are available for all Q Series display, and the I2C read/write protocol can be input from 36pin connector.

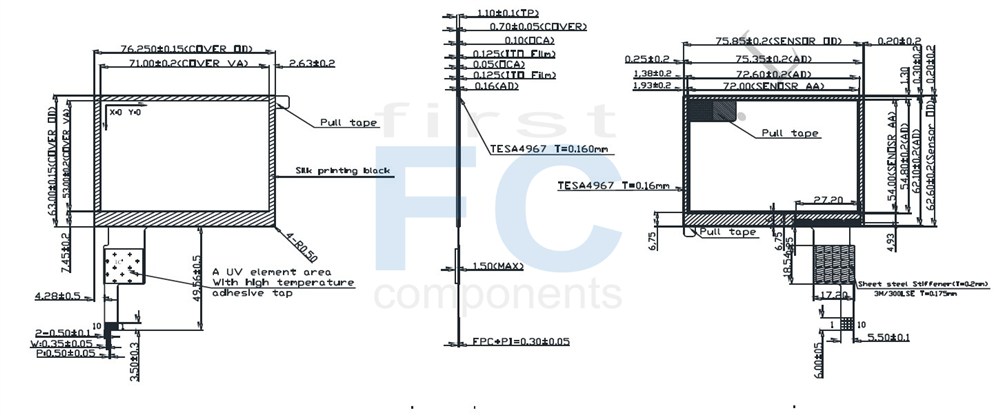

DRAWING

INTERFACE



PinSymbolFunction
1 GND System ground pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 CTP_INT External interrupt to the host
25 CS Chip select
26 RST Hardware reset
27~28 NC No connect
29 CTP_SCL I2C clock input
30 CTP_SDA I2C data input and output
31 CTP_RST External Reset, Low is active
32 NC No connect
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter(+3.3V)
SKU: WF35-320240QD#B06-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€61,60
€55,50
€47,10

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€61,60 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

The 3.5'' capacitive touch screen TFT LCD has SSD1963 controller board plus a 36 pin-out connector. This model is with Projected capacitive touch screen (PCAP), it's available in 8 bit or 16 bit option and already defined pin no. 33 ~ 36 as backlight supply on this SSD1963 LCD controller board, therefore, there is no need to design extra backlight circuit. The TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

  • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • Q Series modules are available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
  • The 5.7", 7.0", 8.0"and 10.2" Q Series are allowed to design “Sleep Mode” to close BIAS(VGH, VGL, AVDD) low power consumption mode.
  • Capacitive Touchscreen TFT options are available for all Q Series display, and the I2C read/write protocol can be input from 36pin connector.

DRAWING

INTERFACE



PinSymbolFunction
1 GND System ground pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 CTP_INT External interrupt to the host
25 CS Chip select
26 RST Hardware reset
27~28 NC No connect
29 CTP_SCL I2C clock input
30 CTP_SDA I2C data input and output
31 CTP_RST External Reset, Low is active
32 NC No connect
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter(+3.3V)
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Specifiche di prodotto
Brand Winstar
Size 3.5"
Risoluzione 320x240
Area Attiva (mm) 70.08x52.56
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC SSD1963
Angolo Visione TN
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
IC Controller Touch Panel FT5426
Preferred - Not Preferred Not Preferred
