    WF35-320240QD#0S4-FC

    TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), High brightness 1100cd/m², Frame, No touch
    Brand: Winstar
    Cod.: WF35-320240QD#0S4-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €44,30
    €39,90
    €37,50

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €44,30 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION



    3.5'' TFT high brightness model supports 8 bit or 16 bit option and pre-defined pin no. 33 ~ 36 as backlight supply; therefore, the customers no need to design extra backlight circuit. The TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

    • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
    • Q Series modules are available in 8 bit and 16 bit parallel interface options.
    • The pin no. 33 ~ 36 already pre-defined as backlight supply.
    • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3"also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
    • The 5.7", 7.0", 8.0" and 10.2" Q Series are allowed to design Sleep Mode to close BIAS(VGH, VGL, AVDD) low power consumption mode.
    • Resistive Touch Screen options are available for all Q Series TFT display, and 4-Line signal (X1, Y1, X2, Y2) can be input from 36pin connector.

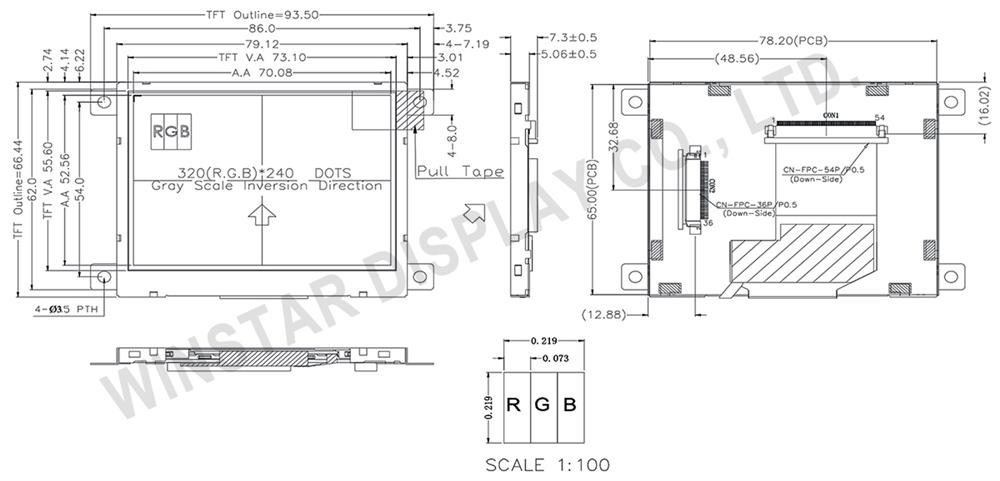

    DRAWING

    All in One 3.5 Inch TFT LCD Display - WF35QTIBCDBN0

    INTERFACE



    PinSymbolFunction
    1 GND System ground pin of the IC.
    Connect to system ground.
    2 VDD Power Supply : +3.3V
    3 BL_E Backlight control signal , H: On \ L: Off
    4 D/C Data/Command select
    5 WR Write strobe signal
    6 RD Read strobe signal
    7~14 DB0~DB7 Data bus
    15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
    23~24 NC No connect
    25 CS Chip select
    26 RESET Hardware reset
    27~32 NC No connect
    33~34 VLED- VLED- for B/L LED inverter (GND)
    35~36 VLED+ VLED+ for B/L LED inverter(+3.3V)
    Specifiche di prodotto
    Size 3.5"
    Resolution 320x240
    Active Area (mm) 70.08x52.56
    Color Full Color
    Display Interface MCU (Parallel)
    Display IC SSD1963
    View Angle TN
    Sunlight Readable High 601~1200cd/m²
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 36
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
