    WF24-240320LM#0P3-FC

    TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (MIPI) IC ST7785MA, 400cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, IC CF1124)
    Brand: Winstar
    Cod.: WF24-240320LM#0P3-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €23,30
    €21,00
    €19,70
    €19,20

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €23,30 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

    WF24-240320LM#0P3-FC is a 2.4-inch IPS TFT-LCD display module with a projected capacitive touch panel and a resolution of 240 x 320 (RGB) dots. The module is equipped with the ST7785MA driver IC, supporting a 1-lane MIPI interface. While it primarily uses a 1-lane MIPI interface for the TFT, there's also an option to support MCU or SPI interfaces.

    The IPS panel provides wider viewing angles, with typical values of 80° (left), 80° (right), 80° (up), and 80° (down). IPS technology offers faster response times, higher transmittance, improved color performance, and precise imaging, making it ideal for applications requiring superior visual quality.

    The projected capacitive touch panel of the WF24-240320LM#0P3-FC incorporates the CF1124 IC, supporting an I2C interface and a 1-point touch function.

    This 2.4-inch TFT-LCD operates in portrait mode, featuring a contrast ratio of 800:1 (typ.) and a brightness of 400 nits (typ.). It is designed to function within a temperature range of -20°C to +70°C, with storage temperatures from -30°C to +80°C.

    The versatile display is suitable for a wide range of applications, including air quality testing, blood glucose measurement, MP3 players, and home appliances. It is also well-suited for specialized applications such as speedometers, safety monitoring systems, handheld devices, and dash cameras in compact industrial equipment.

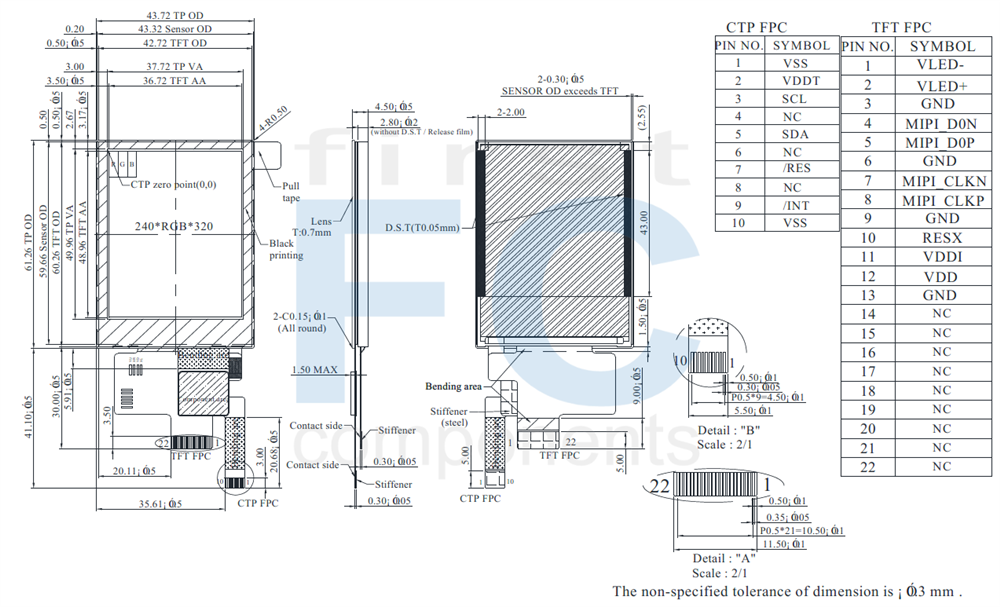

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 2.4 inch
    Dot Matrix 240 × RGB × 320(TFT) dots
    Module dimension 42.72(W) × 61.26(H) × 4.5(D) mm
    Active area 36.72 × 48.96 mm
    Dot pitch 0.153 × 0.153 mm
    LCD type TFT, Normally Black, Transmissive
    TFT Driver IC ST7785MA
    TFT Interface 1-Lane MIPI
    Viewing angle 80/80/80/80
    Aspect Ratio Portrait
    Backlight Type LED, Normally White
    PCAP Driver IC CF1124
    PCAP Interface I2C
    PCAP FW Version 0x01
    PCAP Resolution 240 * 320
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage For Analog VDD 2.4 — 3.3 V
    Supply Voltage For Logic VDDI 1.65 — 3.3 V
    Supply Current For LCM IDD — 9.0 15.0 mA
    Supply CTP VDDT 3.0 3.3 3.6 V
    IDDT — 14.0 25.0 mA



    Interface Pin Function

    LCM PIN Definition

    Pin NoSymbolI/OFunction
    1 VLED- P Cathode of LED backlight.
    2 VLED+ P Anode of LED backlight.
    3 GND P Ground
    4 MIPI_D0N I Negative polarity of low voltage differential data signal
    Leave the pin open when not in use.
    5 MIPI_D0P I Positive polarity of low voltage differential data signal
    Leave the pin open when not in use.
    6 GND P Ground
    7 MIPI_CLKN I Negative polarity of low voltage differential clock signal
    Leave the pin open when not in use
    8 MIPI_CLKP I Positive polarity of low voltage differential clock signal Leave the pin open when not in use.
    9 GND P Ground
    10 RESX I This signal will reset the device and it must be applied to properly initialize the chip.
    Signal is active low.
    11 VDDI P Power Supply for I/O System.
    12 VDD P Power Supply for Analog, Digital System and Booster Circuit.
    13 GND P Ground
    14-22 NC - No connection


    CTP PIN Definition

    Pin NoSymbolFunction
    1 VSS Connect to system ground.
    2 VDDT Power Supply
    3 SCL I2C clock input
    4 NC No connect
    5 SDA I2C data input and output
    6 NC No connect
    7 /RES External Reset, Low is active
    8 NC No connect
    9 /INT External interrupt to the host
    10 VSS Connect to system ground.
    Specifiche di prodotto
    Size 2.4"
    Resolution 240x320
    Active Area (mm) 36.72x48.96
    Color Full Color
    Display Interface MCU (MIPI)
    Display IC ST7785MA
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 22
    Pin Pitch 0.5mm
    Touch Panel IC Controller CF1124
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2026/03/25 EOL Discontinuation of Sitronix ST7785MA Driver for Winstar TFT Series WF24



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
